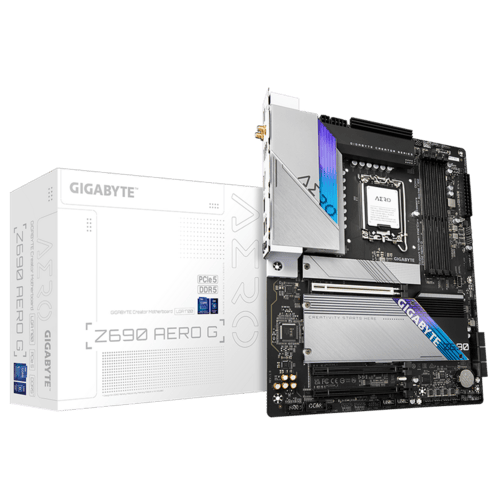

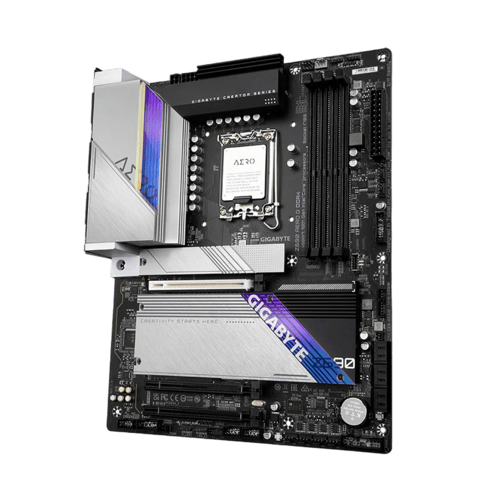

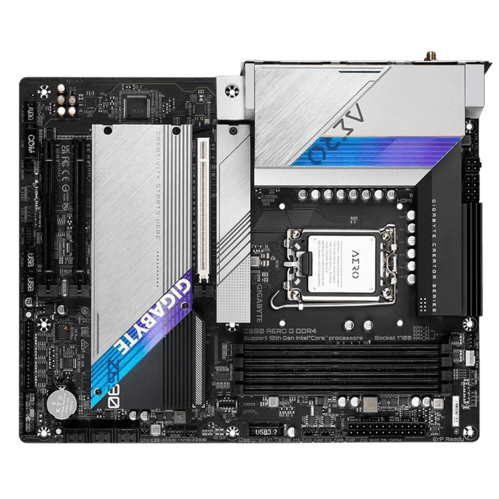

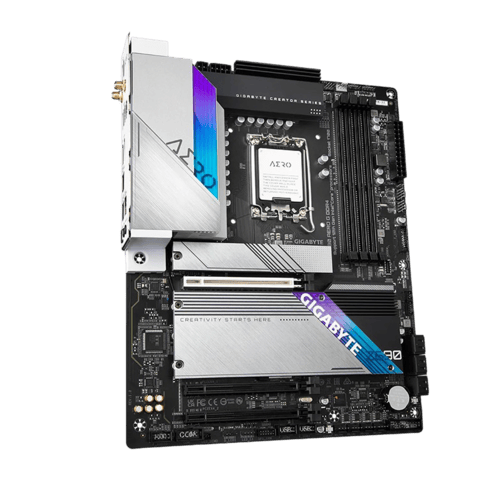

MB S1700 Gigabyte Z690 AERO G 1.0 ATX

Стоимость и сроки доставки
// CPU LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors Chipset - Intel® Z690 Memory Support for DDR5 5333(O.C.)/ ... / 4800 / 4000 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Onboard Graphics 1 x USB Type-C® port, supporting USB Type-C® and DisplayPort video outputs and a maximum resolution of 4096x2106@60 Hz * Support for drawing tablets and 20V@3A of power delivery. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz Audio Realtek® ALC4080 CODEC LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) Storage Interface 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB) 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 USB 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel https://www.aorus.com/motherboards/Z690-AERO-G-rev-1x/Key-Features
Addressable LED Header
2
Audio Jacks
2x audio jacks
Bluetooth Compliance
5.2
Brand
Gigabyte
COM Port
false
Dimensions
30,5 cm x 24,4 cm
DisplayPort
1x DP 1.2
Ethernet (LAN) controller #1
2.5 Gigabit Ethernet Intel I225-V
HDMI
1x HDMI 1.4
Max. Memory Speed (OC) {Mhz}
5333
Memory Speed
5333 MHz
Motherboard Form-Factor
ATX
PC Component Type
Mainboard
PCI-Express x16 Slots
3
PCIe 4.0 Support
false
RAID
RAID 0, RAID 1, RAID 5, RAID 10
RGB LED Headers
2
SATA Ports
6x SATA 6Gb/s
Slot support M2 #1
M2: PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #2
M2: PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #3
M2:SATA3 or PCIe Gen4 x4 (64 Gb/s)
SPDIF Out
1x Optical SPDIF Out Port
Total RAM Maximum Size
128GB
USB 2.0 Headers
2x USB 2.0 (Support 4 USB Ports)
USB 2.0 Type-A
2x
USB 3.x Headers
1 x USB 3.2 Gen1 (Supports 2 USB 3.2 Gen1 ports)
USB 3.x Type-A
6x USB 3.2
USB Type-C
2x
