. Intel 1700 / 1200 / 1150 / 1151 / 1155AMD AM5 / AM4

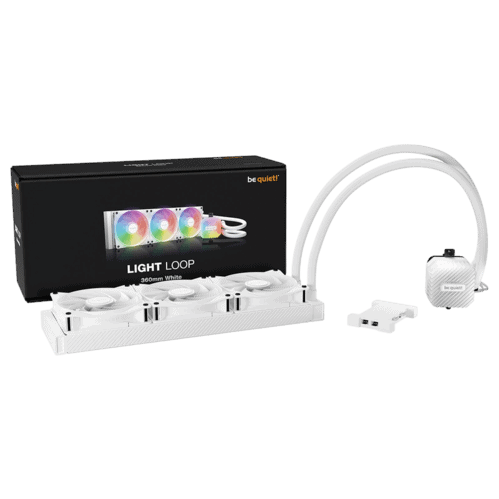

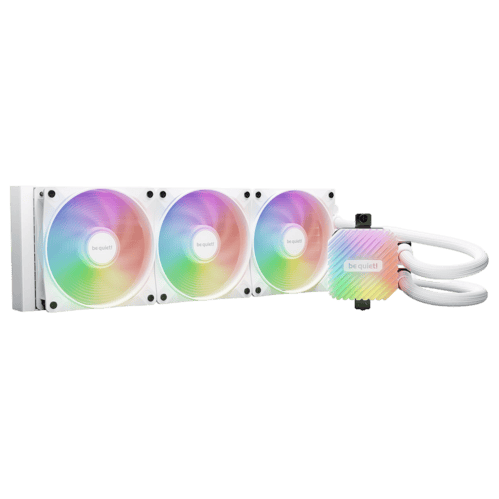

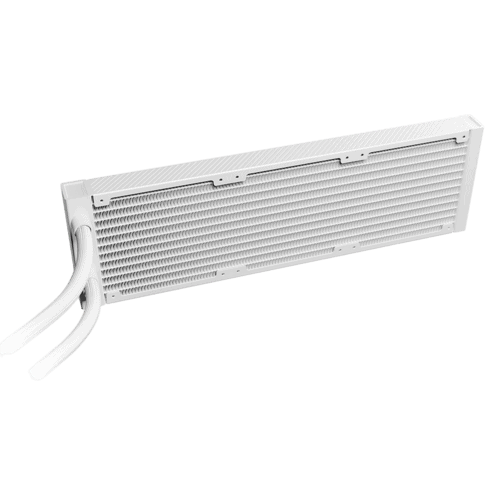

General data Model Light Loop 360mmColor option WhiteDimensions radiator, incl. fan (H x W x D), (mm) 397 x 120 x 52Dimensions cooling block (H x W x D), (mm) 75 x 94 x 82Total weight (kg) 1.48Socket compatibility Intel 1700 / 1200 / 1150 / 1151 / 1155Socket compatibility AMD AM5 / AM4Noise level (dB(A)) at 50% / 75% /100% rpm 17.2 / 29.1 / 36.8Number of fans 3Lighting connector 3 Pin 5V AdressableTube length (mm) 400Refill port ✓Infographics open all / close all Pump specifications Pump speed (rpm) 2900Pump adjustable (rpm) 1500 - 2900Pump connector 4-pin PWMRadiator specifications Dimensions (L x W x H), (mm) 397 x 120 x 27Radiator material / finish aluminum / white spray paintedBase material / finish copper / nickel platedFan specifications Fan model Light Wings LX 120mm PWM high-speedFan dimensions (mm) 120 x 120 x 25Speed at 100% PWM (rpm) 2100Airflow at 100% PWM / 12V (CFM / m3/h) 61.8 / 105.1Air Pressure at 100% PWM / 12V (mm H2O) 2.51Bearing technology RifleMotor technology 4-pole fan motorRated Voltage (V) 12Input current (A) 0.17Safety current (A) 0.45Input power (W) 5.4Connector 4-pin PWMCable length (mm) 500Lifespan (h / 25°C) 60,000Accessories Thermal grease (Type) IncludedMounting set Intel, AMDBottle of coolant (ml) ✓/ 100ARGB-PWM-Hub ✓User manual languages CN, DE, EN, ES, FR, JP, PL, RU, TW, UASafety certifications Approvals CE, FCC, UKCAEnvironmental directives RoHS ✓WEEE ✓Triman ✓Service Warranty (Years) 3International hotline / free of charge ✓/ DE, FRLogistics data and RRP Article number BW022EAN code 4260052191132Dimensions, package (L x W x H), (mm) 448 x 205 x 137Gross weight, package (kg) 2.6Pieces per packaging unit 4Dimensions, shipping box (L x W x H), (mm) 470 x 300 x 460Gross weight, shipping box (kg) 11.3
