PN: RL-KR36E-B1
Intel: LGA 1700, 1200/115X
AMD: AM5, AM4, sTRX4*, TR4* (*Threadripper bracket not included)
Tech Specs

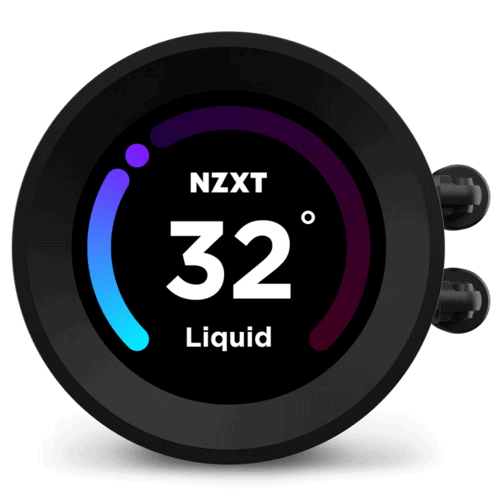

CAP
Material Aluminum, Plastic
Display Orientation Software adjustable Default, +90, +180, and -90 Degrees
Display Panel Active Area 2.36” (60mm) diameter
Display Color 24-bit true color LCD
Display Resolution 640 x 640 px
Display Brightness 690 cd/m²
Display Panel Type TFT-LCD (Wide Viewing Angle)

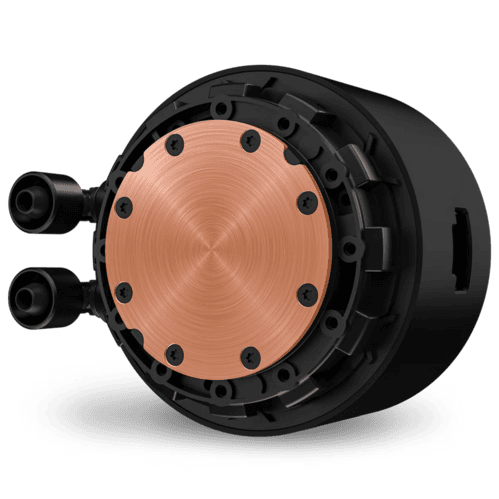

WATER BLOCK
Dimensions 81.9mm H 59.5mm Diameter
Material (Block) Copper
Material (Housing) Plastic
PUMP
Motor Speed 800 - 2,800 ± 300 RPM
Power 12V DC, 0.3A

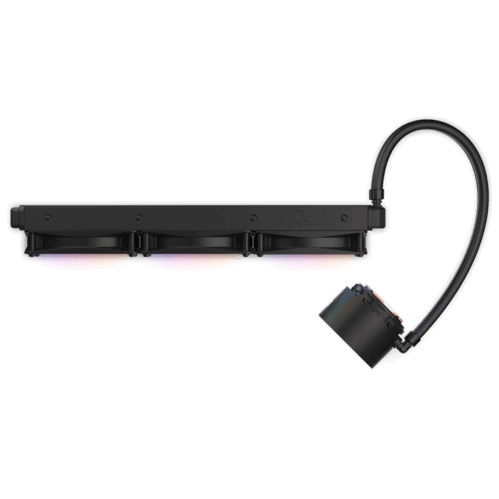

RADIATOR
Dimensions 121 x 394 x 27mm
Material Aluminum
TUBE
Length 400mm
Material Ultra-low Evaporation Rubber with Nylon Braided Sleeve
FAN SPECS
Model F120 RGB Core Fans
Quantity 3
Dimension 120 x 120 x 26mm
Speed 500-1,800 ± 180 RPM
Airflow 78.86 CFM
Air Pressure 2.57 mm H2O
Noise 33.88 dBA
Bearing Fluid Dynamic Bearing
Power Consumption 12 V DC, 0.2 A, 2.4 W
Fan Connector 4-pin PWM
Life 60,000 hours / 6 Years
Limited Warranty 6 Years
RGB CONTROLLER
Dimensions 63.2 x 53.2 x 12.8mm
Weight 52.8g
Mounting Magnet and 3M Dual Lock
Connection Cables 1x USB 2.0 internal connector 1x SATA power cable
Input Connector 12V DC / 2.6A
RGB Lighting Channels 3
Output Channel Voltage 5V DC
NZXT RGB Channel Output LED Qty. Up to 40 LEDs per channel and up to 120 LEDs combined total for the total 3 channels
