PN: BGW58

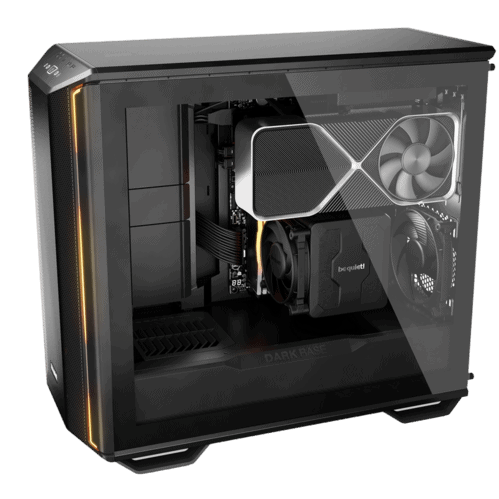

Model Dark Base 701 Black
Color option Black
Motherboard compatibility E-ATX (30.5 x 27.5cm), ATX, M-ATX, Mini-ITX
Case size excl. stands (L x W x H), (mm) 565 x 249 x 495
Case size incl. stands (L x W x H), (mm) 565 x 249 x 523
Volume (l) 69.64
PSU form factor ATX PS/2
Weight (kg) 12.8
Expansion slots 7 + 3
Maximum fan installation
Maximum fans 8
Top (mm) 3x 140 / 3x 120
Front (mm) 3x 140 / 3x 120
Side (mm) -
Rear (mm) 1x 140 / 1x 120
Bottom (mm) 1x 140 / 1x 120
PSU shroud -
Optional radiator installation
Top (mm) 120 / 140 / 240 / 280 / 360
Front (mm) 120 / 140 / 240 / 280 / 360
Side (mm) -
Rear (mm) 120
Bottom (mm) -
Graphics card
HDD cage (in height of graphics card) installed (mm) 430
HDD cage (in height of graphics card) removed (mm) 430
Maximum PCIe slots with vertical graphics card (pcs.) 3
Drive bay capacity
5.25 bays (pcs.) -
3.5 slots (scope of delivery) 3
3.5 slots (max.) 5
2.5 slots (scope of delivery) 2
2.5 slots (max.) 3
Cooling
Max.construction height of CPU cooler unit (mm) 185
Airflow channel Front / Top / Rear / Bottom
Max.construction height of CPU cooler unit (mm) 185
Airflow channel Front / Top / Rear / Bottom
Lighting
LED illumination ✓
LEDs (pcs.) 48
LED type ARGB - 5V
LEDs synchronizable with controller/motherboard ✓

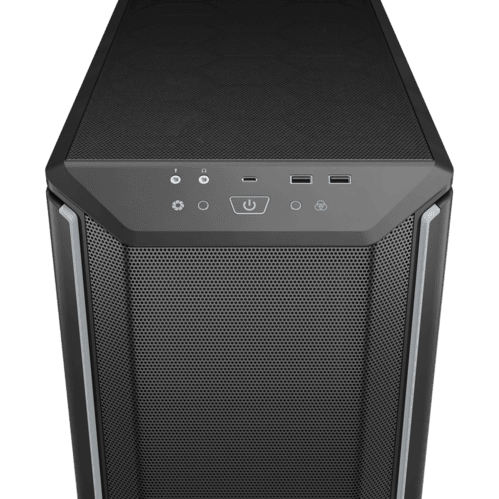

I/O Panel
USB 3.2 Gen. 2 Type C 1
USB 3.2 Type A 2
USB 2.0 -
HD Audio I/O Mic + Audio
Qi charger / Quick Charging Option -
Insulation and damping
Top panel insulation mats -
Front panel insulation mats -
Side panel insulation mats ✓
Anti-vibration decoupled HDD ✓
Anti-vibration decoupled fan ✓
Anti-vibration decoupled PSU ✓
Anti-vibration decoupled motherboard-tray ✓
Material
Top cover Steel
Front panel Steel
Side panel Glas
Side panel window Tempered glass
Stands ABS
