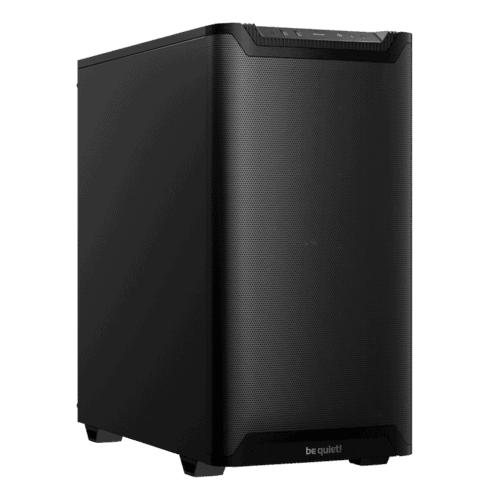

Case ATX be quiet! Pure Base 501 Airflow, w/o PSU, 2x140mm, Front&Top Airflow, PSU shroud, Dust filt
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
. PN: BG074 Model Pure Base 501 Airflow Black Color option Black Motherboard compatibility ATX / M-ATX / Mini-ATX Case size excl. stands (L x W x H), (mm) 450 x 231 x 449 Case size incl. stands (L x W x H), (mm) 450 x 231 x 463 Volume (l) 24.4 PSU form factor ATX PS/2 Net weight (kg) 6.8 Expansion slots 7 Fan at front 1x Pure Wings 3 140mm PWM Fan at rear 1x Pure Wings 3 140mm PWM Dimensions (L x W x H), (mm) Front: 140 x 25 x 140 / Rear: 140 x 25 x 140 Fan speed at 100% PWM / 12V (rpm) 1200 Airflow at 100% PWM / 12V (CFM / m3/h) 57.4 / 97.5 Air Pressure at 100% PWM / 12V (mm H2O) 0.96 Noise level at 100% PWM / 12V (dB(A)) 21.9 Voltage range (V DC) 5 - 13.2 Input power (W) 3.6 Input current (A) 0.06 Connector 4-pin PWM Lifespan (h / 25°C) 80,000 Maximum fans 6 Top (mm) 2x 140 / 2x 120 Front (mm) 2x 140 / 3x 120 Rear (mm) 1x 140 / 1x 120 Top (mm) 120 / 240 Front (mm) 120 / 140 / 240 / 280 / 360 Rear (mm) 120 / 140 Maximum dimensions excl. bottom fan (mm) 180 Maximum dimensions incl. bottom fan (mm) 180 Maximum PCIe slots with vertical graphics card (pcs.) 5 3.5 slots (scope of delivery) 2 3.5 slots (max.) 2 2.5 slots (scope of delivery) 5 2.5 slots (max.) 5 Max.construction height of CPU cooler unit (mm) 178 USB 3.2 Gen. 2 Type C 1 USB 3.2 Type A 2 HD Audio I/O Mic + Audio Insulation and damping Side panel insulation mats ✓ Anti-vibration decoupled HDD ✓ Anti-vibration decoupled fan ✓ Anti-vibration decoupled PSU ✓ Anti-vibration decoupled motherboard-tray ✓
Audio Jacks
Headphone (3.5mm) + Microphone (3.5mm)
Brand
be quiet!
Case Materials
Steel, Plastic ABS
Chassis Metal Thickness {mm}
0
Colour Category | Цветовая Категория
Black | Чёрный
Colour Name | Название Расцветки
Black | Чёрный
Cooling Fan Mounting Points
0
Cooling Fans Support
Top: 2x 140/2x 120mm, Front: 2x 140/3x 120mm, Rear: 1x 140/1x 120mm
Dimensions, Depth {mm}
231
Dimensions, Height {mm}
463
Dimensions, Width {mm}
450
Drive Bays 2.5"
5
Drive Bays 3.5"
2
Dust Filters
Yes, on Front and Top
Fan Speed Controller
false
Front Panel
ABS
Gaming
false
Input Voltage Range
12 VDC
Liquid Cooling Support
120/140/240/280/360mm
Maximum CPU Cooler Height {mm}
178
Maximum Power Supply Length {mm}
0
Maximum VGA Card Length {mm}
0
Motherboard Form-Factor
ATX, Micro-ATX, Mini-ATX
Number of Expansion Slots
0
PC Case Type
Midi-Tower
PC Component Type
Case
Port Location
Top
Pre-installed Fans Front
1x140mm
Pre-installed Fans Rear
1x140mm
Pre-installed Fans Total
2
PSU Form-Factor
w/o PSU
Side Panel
Steel
Sound Insulation Padding
false
USB 3.x Type-A
2x USB 3.2
USB Type-C
1x USB 3.2 Gen 2
Wattage {W}
0
Weight {kg}
6.8
