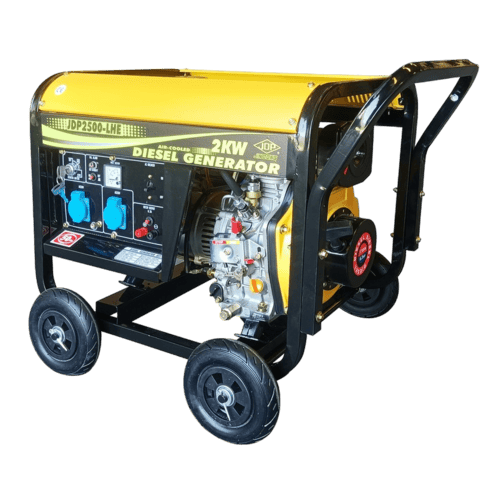

DIESEL GENERATOR JDP2500-LHE/230V/SINGLE PHASE - Open Type, Air-cooled
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Open Type GENERATOR
Type Revolving field , 2 pole ,Self-Excitating Brush type with AVR
Frequency(Hz) 50
Output(kw) 2
Voltage(A.C)(V) 230V
Engine Speed(r/min) 3000
Phase Single phasee
Power factor(cosφ) 1.0
Coupling Pattern Direct connection
ENGINE
Model JDP170FAE
Type Direct injection, Vertical, 4-cycle, Air-cooled diesel engine
Displacement(cc) 211
Max.output(kw) 2.8
Cont.Output(kw) 2.5
Fuel consumption g/kw*h ≤287
Starting system Electric Starting with battery
Fuel/Lub.oil 0# in summer,-10# or -20# in winter, light diesel fuel/SAE10W30
Fuel tank capacity(L) 13.5
Lub.oil capacity(L) 0.75
STANDARD
Fuel gauge with
Voltmeter with
AC Circuit Breaker with
Engine Switch with
DC output 12V/8.3A with
low oil Level alert with
AC Socket with
Handle&Wheels with
N.W(kg) 72
Brand
JDP
Displacement {cc}
211
Engine Speed {r/min}
3000
Frequency range
50 Hz
Fuel Tank Capacity {L}
13.5
Max. Power {kW}
2.8
Phase
Single phase
Rated Power {kW}
2.5
Starting
Electric Starting with battery
Type | Power Protection
Diesel Generator
Voltage {V}
230
Weight {kg}
72
