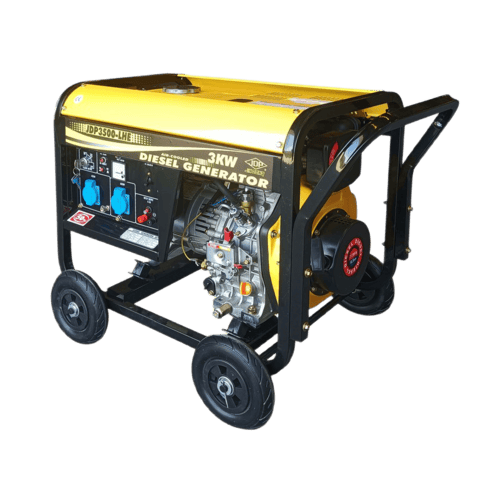

DIESEL GENERATOR JDP3500-LHE/230V/SINGLE PHASE - Open Type, Air-cooled

Open Type GENERATOR Type Revolving field , 2 pole ,Self-Excitating Brush type with AVR Frequency(Hz) 50 Output(kw) 3 Voltage(A.C)(V) 230V Engine Speed(r/min) 3000 Phase Single phasee Power factor(cosφ) 1.0 Coupling Pattern Direct connection ENGINE Model JDP178FAE Type Direct injection, Vertical, 4-cycle, Air-cooled diesel engine Displacement(cc) 296 Max.output(kw) 4 Cont.Output(kw) 3.7 Fuel consumption g/kw*h ≤280 Starting system Electric Starting with battery Fuel/Lub.oil 0# in summer,-10# or -20# in winter, light diesel fuel/SAE10W30 Fuel tank capacity(L) 13.5 Lub.oil capacity(L) 1.1 STANDARD Fuel gauge with Voltmeter with AC Circuit Breaker with Engine Switch with DC output 12V/8.3A with low oil Level alert with AC Socket with Handle&Wheels with N.W(kg) 85
