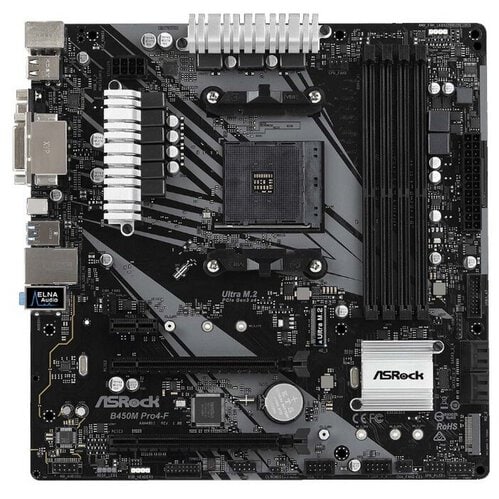

Материнская плата MB AM4 ASRock B450M PRO4-F mATX
123085
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
// CPU
- AMD AM4 Socket
Chipset
- AMD B450
Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory*
Graphics
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
Slots
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
- 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)
- 1 x PCI Express 2.0 x1 Slot
- Supports AMD Quad CrossFireX™ and CrossFireX™
Storage
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10)
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
- 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module
USB
- 1 x USB 3.1 Gen1 Type-C Port (10 Gb/s)
- 6 x USB 3.1 Gen1 Ports)
- 6 x USB 2.0 Ports
https://www.asrock.com/MB/AMD/B450M%20Pro4-F/index.asp#Overview
Addressable LED Header
0
Brand
ASRock
COM Port
false
COM Port Header
2
Ethernet (LAN) controller #1
Gigabit Ethernet (Realtek RTL8111H)
Ethernet (LAN) controller #2
--
Max. Memory Speed (OC) {Mhz}
8000
PCIe 4.0 Support
true
RAID
RAID 0, RAID 1, RAID 10
RGB LED Headers
1
Slot support M2 #1
M2: PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #2
M2: PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #3
M2: type 2242/2260/2280 (PCIe Gen4 x4 & SATA)
Slot support M2 #4
M2: PCIe Gen4 x4 (64 Gb/s)
USB 2.0 Headers
2x USB 2.0 (Support 4 USB Ports)
USB 3.x Headers
2 x USB 3.2 Gen1 (Supports 4 USB 3.2 Gen1 ports)
