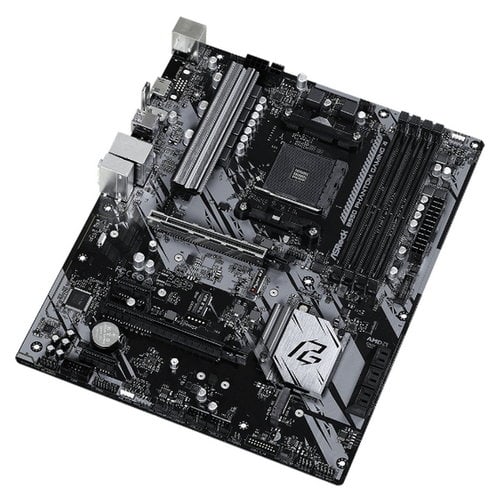

Материнская плата MB AM4 ASRock B550 PHANTOM GAMING 4 ATX
123337
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
// CPU
- AMD AM4 Socket
- Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors*
Chipset
- AMD B550
Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 4733+ (OC)
- Max. capacity of system memory: 128GB**
Graphics
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
Slots
- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*
- 2 x PCI Express 3.0 x1 Slots
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ac module
Storage
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) or Gen3x4 (32 Gb/s)**
- 1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**
USB
- 8 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
https://www.asrock.com/mb/AMD/B550%20Phantom%20Gaming%204/index.asp#Overview
Addressable LED Header
2
Brand
ASRock
COM Port
false
COM Port Header
1
Ethernet (LAN) controller #1
2.5 Gigabit Realtek Ethernet
Ethernet (LAN) controller #2
Gigabit Ethernet (Realtek RTL8125)
Max. Memory Speed (OC) {Mhz}
8666
PCIe 4.0 Support
false
RAID
RAID 0, RAID 1, RAID 10
RGB LED Headers
2
Slot support M2 #1
M2: SATA3 & PCIe Gen3 x4 (32 Gb/s)
Slot support M2 #2
M2: SATA3 or PCIe Gen3 x4 (32 Gb/s)
Slot support M2 #3
--
Slot support M2 #4
M2: SATA & PCIe Gen4 x4
USB 2.0 Headers
2x USB 2.0 (Support 3 USB Ports)
USB 3.x Headers
2x
