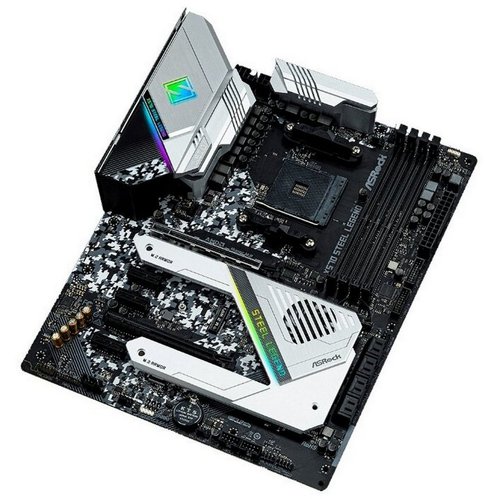

MB AM4 ASRock X570 STEEL LEGEND ATX
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
// CPU - Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series and 5000 Series Desktop Processors Chipset - AMD X570 Memory - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory Graphics - Dual graphics output: - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) LAN - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I211AT Slots AMD Ryzen series CPUs (Matisse) - 2 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))* - 3 x PCI Express 4.0 x1 Slots - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module Storage - 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)* - 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)* USB - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 10 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 4 x USB 2.0 Ports (Supports ESD Protection) https://www.asrock.com/mb/AMD/X570%20Steel%20Legend/index.asp#Overview
Addressable LED Header
1
Audio Jacks
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Brand
ASRock
COM Port
false
Dimensions
30.5 x 24.4 cm
DisplayPort
1x DP 1.2
Ethernet (LAN) controller #1
Gigabit Ethernet (Intel I211AT)
HDMI
1x HDMI
M.2 Expansion Slots
2
Max. Memory Speed (OC) {Mhz}
4666
Memory Speed
2133 MHz
Motherboard Form-Factor
ATX
PC Component Type
Mainboard
PCI-Express x1 Slots
3
PCI-Express x16 Slots
2
PCIe 4.0 Support
false
PS/2
1x
RAID
RAID 0, RAID 1, RAID 10
RGB LED Headers
1
SATA Ports
8x SATA 6Gb/s
Slot support M2 #1
M2: PCIe Gen4 x4 (64 Gb/s) or Gen3x4 (32 Gb/s)
Slot support M2 #2
M2: SATA3 or PCIe Gen4 x4 (64 Gb/s) or Gen3x4 (32 Gb/s)
SPDIF Out
1x Optical SPDIF Out Port
Total RAM Maximum Size
128GB
USB 2.0 Headers
2x USB 2.0 (Support 4 USB Ports)
USB 2.0 Type-A
1x
USB 3.x Headers
2 x USB 3.2 Gen1 (Supports 2 USB 3.2 Gen1 ports)
USB 3.x Type-A
6x USB 3.2
USB Type-C
1x, USB 3.1
