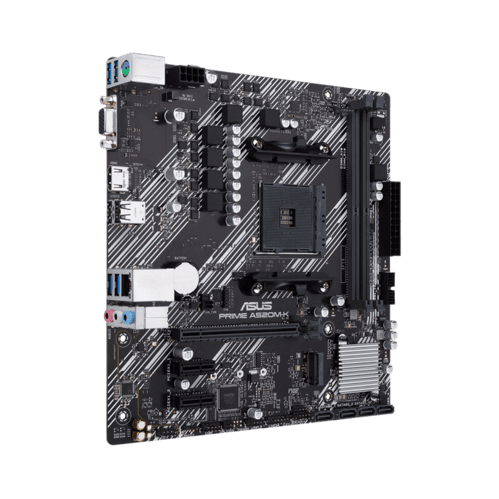

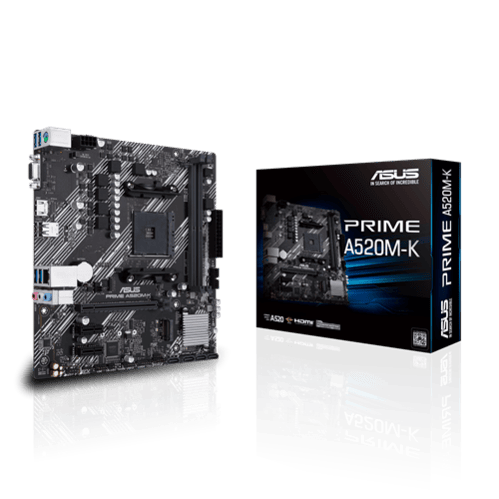

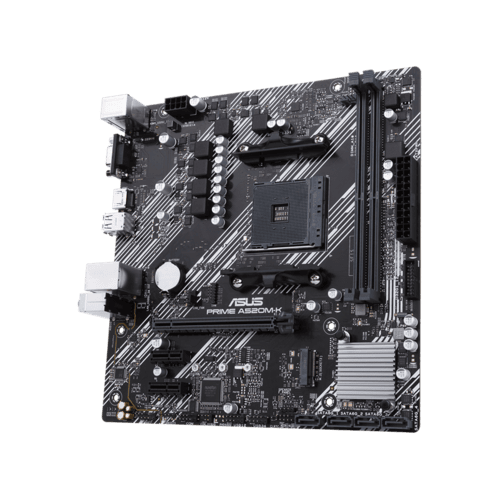

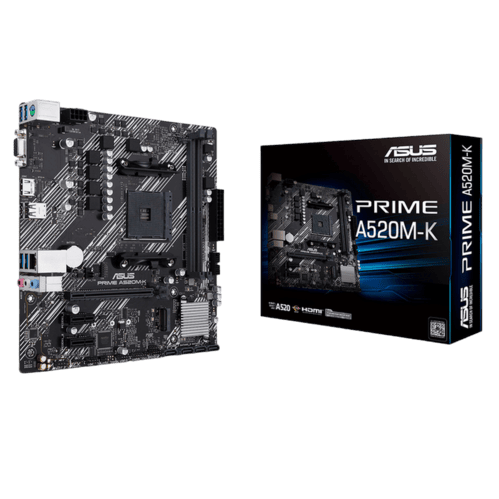

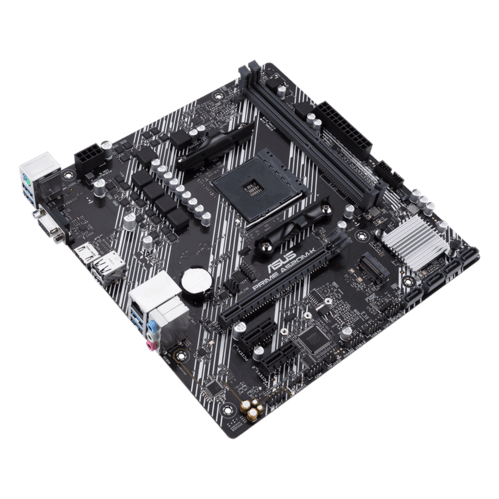

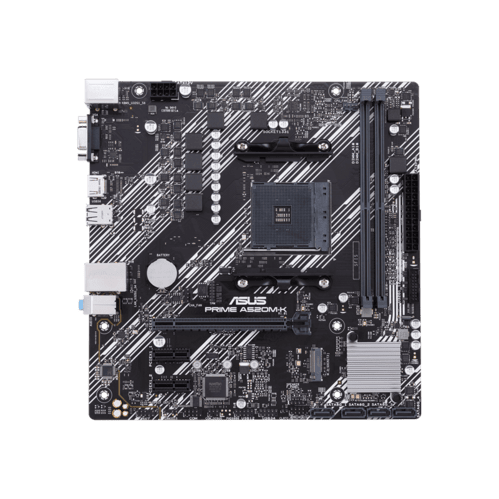

MB AM4 Asus PRIME A520M-K mATX
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
// CPU AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors * Chipset AMD A520 Memory 2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture Graphic 1 x D-Sub 1 x HDMI 2.1(4K@60HZ) Expansion Slots 1 x PCIe 3.0 x16 (x16 mode) 2 x PCIe 3.0 x1 Storage Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 LAN Realtek® RTL8111H Audio Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC * USB Ports Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-A520M-K/

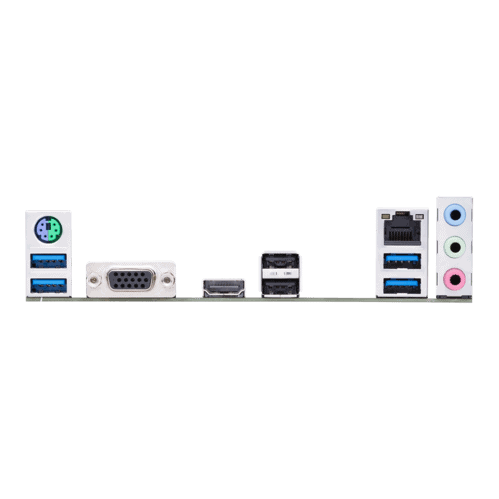

Audio Jacks
HD Audio Jacks: Line in / Front Speaker / Microphone
Brand
ASUS
COM Port
false
COM Port Header
1
D-Sub (VGA)
1x
Dimensions
22.6 x 22.1 cm
Ethernet (LAN) controller #1
Gigabit Ethernet (Realtek RTL8111H)
HDMI
1x HDMI 2.1
M.2 Expansion Slots
1
Max. Memory Speed (OC) {Mhz}
4866
Memory Speed
2133 MHz
Motherboard Form-Factor
Micro-ATX
PC Component Type
Mainboard
PCI-Express x1 Slots
2
PCI-Express x16 Slots
1
PCIe 4.0 Support
false
RAID
RAID 0, RAID 1, RAID 10
SATA Ports
4x SATA 6Gb/s
Slot support M2 #1
M2: SATA3 & PCIe Gen3 x4 (32 Gb/s)
SPDIF Out
1x Optical SPDIF Out Port
Total RAM Maximum Size
64GB
USB 2.0 Headers
4x USB 2.0
USB 2.0 Type-A
2x
USB 3.x Headers
2x USB 3.2 Gen1
USB 3.x Type-A
4x USB 3.2
