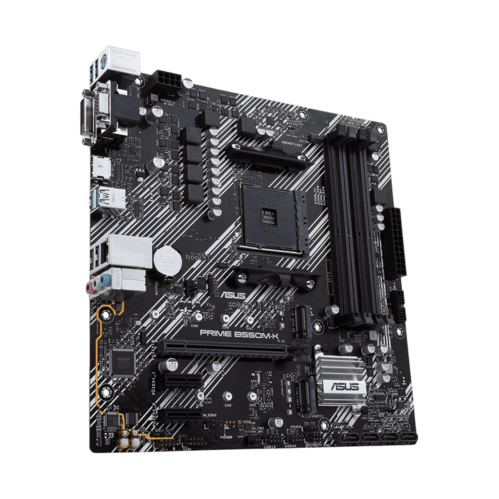

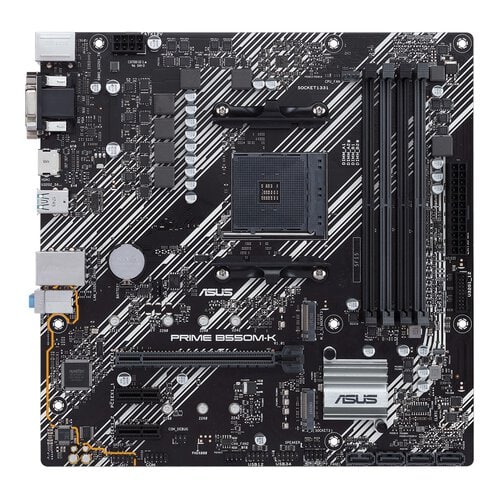

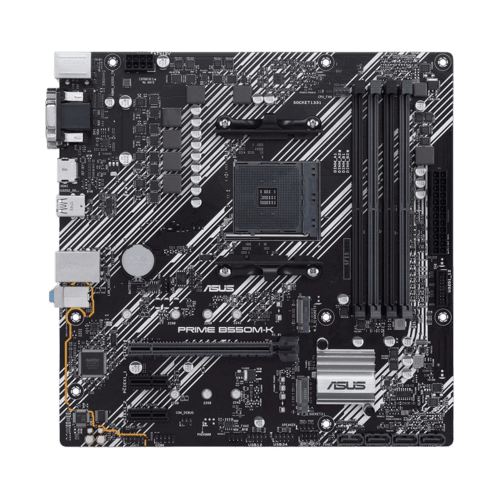

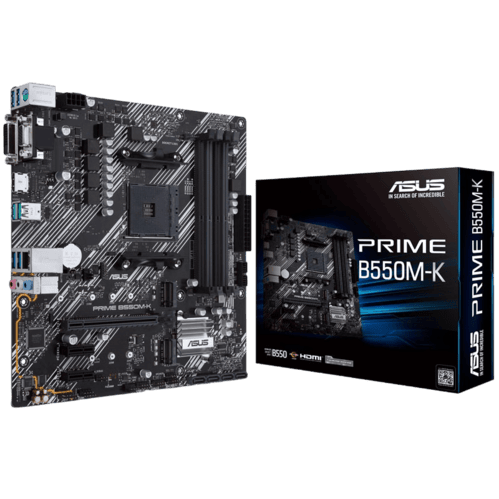

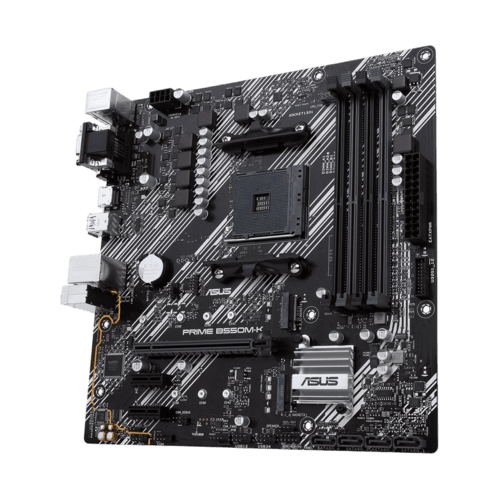

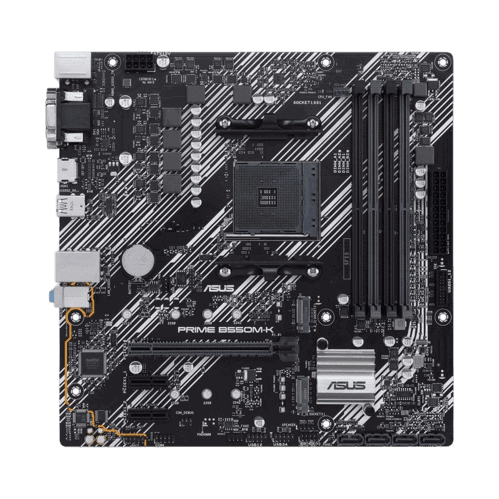

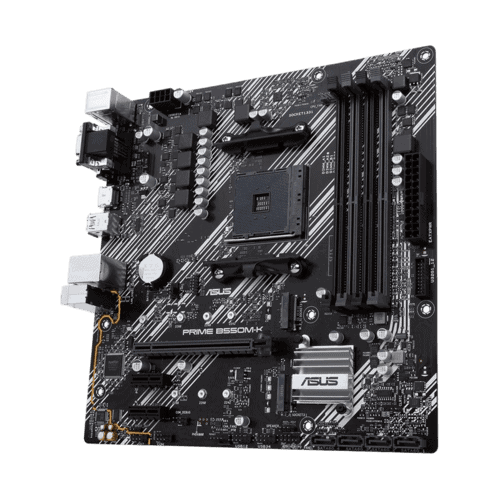

Материнская плата MB AM4 Asus PRIME B550M-K mATX
116774
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
// CPU
AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors
Chipset
AMD B550
Memory
4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture
Graphic
1 x D-Sub
1 x DVI-D
1 x HDMI 2.1(4K@60HZ)
Expansion Slots
1 x PCIe 4.0 x16 (x16 mode)
2 x PCIe 3.0 x1
Storage
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN
Realtek® RTL8111H
Audio
Realtek ALC887 7.1-Channel High Definition Audio CODEC
USB Ports
Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)
https://www.asus.com/Motherboards/PRIME-B550M-K/overview/
Brand
ASUS
COM Port
false
COM Port Header
1
Ethernet (LAN) controller #1
2.5 Gigabit Realtek Ethernet
Max. Memory Speed (OC) {Mhz}
4600
PCIe 4.0 Support
true
RAID
RAID 0, RAID 1, RAID 10
Slot support M2 #1
M2: PCIe Gen4 x4 (64 Gb/s) or Gen3x4 (32 Gb/s)
Slot support M2 #2
M2: SATA3 or PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #3
M2: SATA3 or PCIe Gen3 x4 (32 Gb/s)
USB 2.0 Headers
1x USB 2.0 (Support 2 USB Ports)
USB 3.x Headers
2 x USB 3.1 Gen1 (Supports 4 USB 3.1 Gen1 ports)
