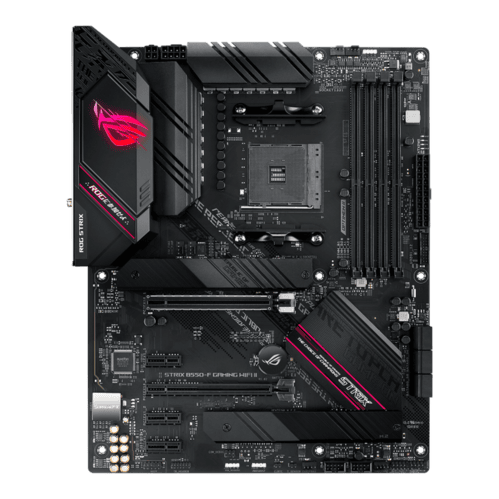

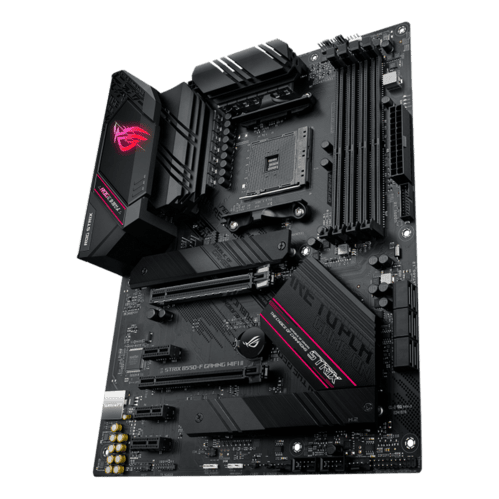

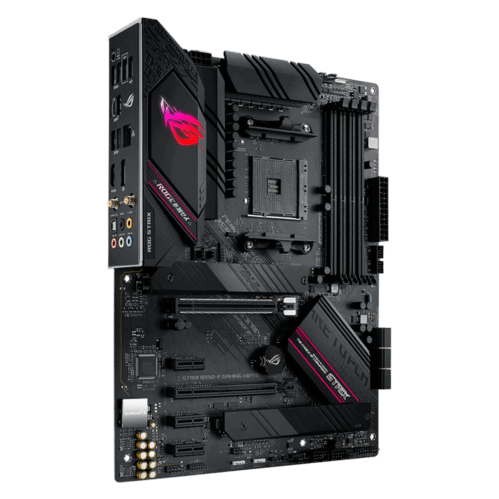

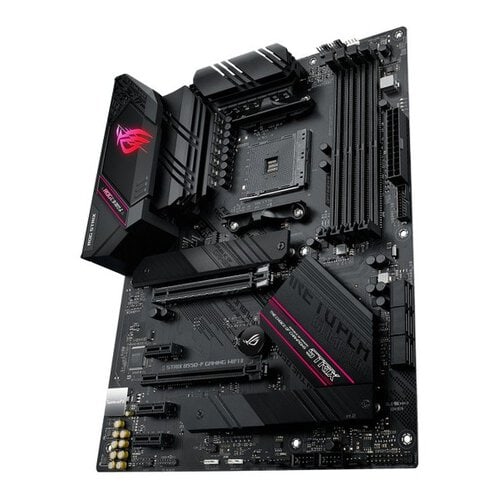

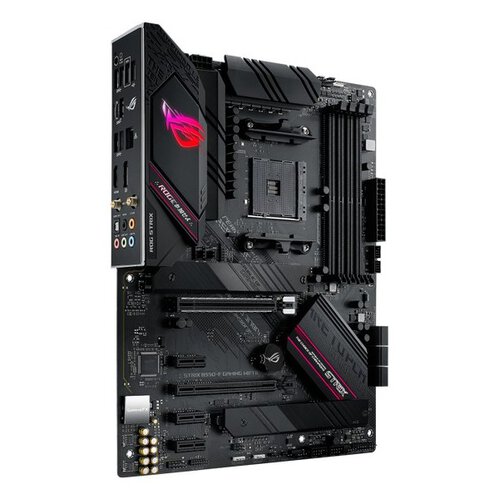

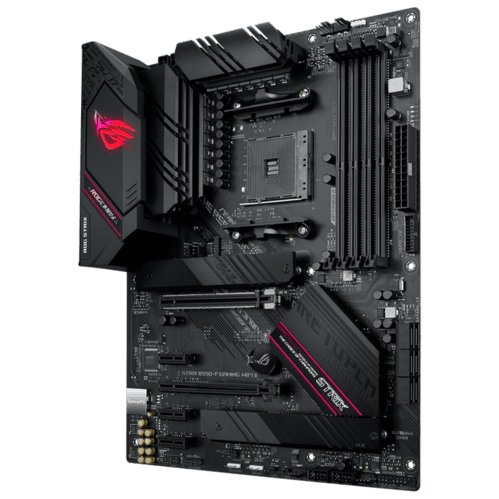

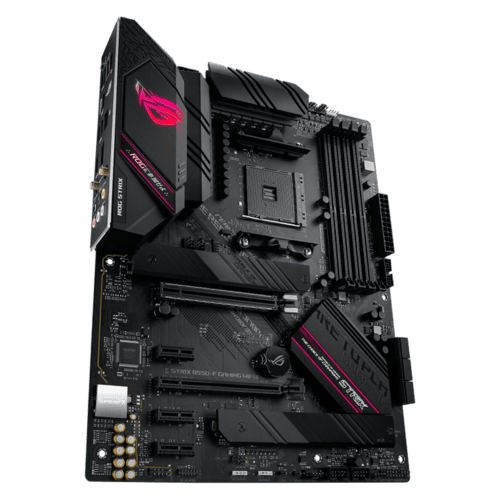

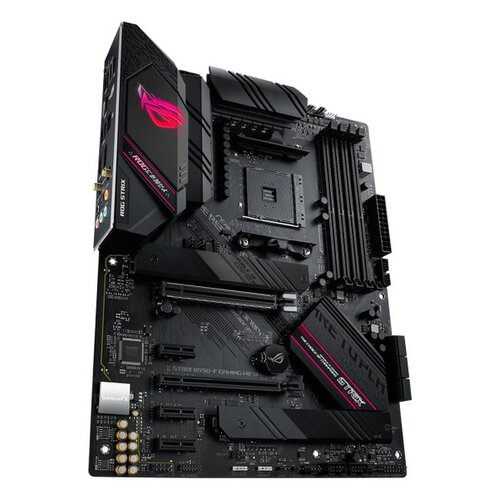

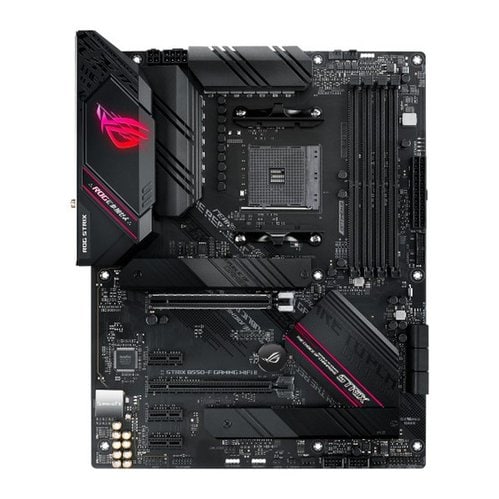

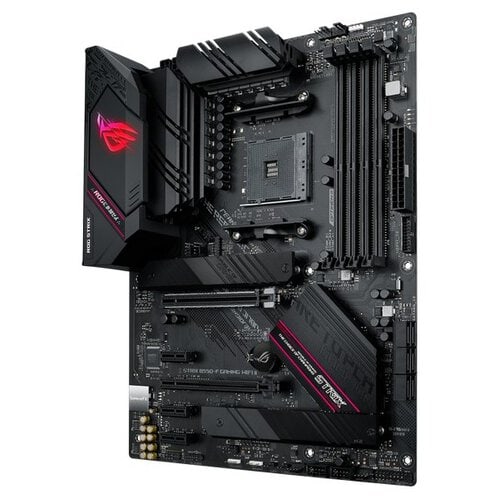

MB AM4 Asus ROG STRIX B550-F GAMING WIFI II ATX
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
// CPU AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors Chipset AMD B550 Memory 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory* Dual Channel Memory Architecture Graphic Integrated Graphics Processor 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) Expansion Slots 1 x PCIe 4.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 *1 Storage 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 LAN 1 x Intel® 2.5Gb Ethernet Wireless & Bluetooth 2x2 Dual Band Wi-Fi 6E (802.11a/b/g/n/ac/ax) + BT5.2 Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A USB Ports Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) https://rog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/
Addressable LED Header
2
Audio Jacks
HD Audio Jacks: Line in / Front Speaker / Microphone
Bluetooth Compliance
5.2
Brand
ASUS
COM Port
false
Dimensions
30,5 cm x 24,4 cm
DisplayPort
1x DP 1.2
Ethernet (LAN) controller #1
Gigabit Ethernet (Intel I225V)
Ethernet (LAN) controller #2
2.5 Gigabit Ethernet Intel I225-V
HDMI
1x HDMI 2.1
Max. Memory Speed (OC) {Mhz}
5100
Memory Speed
4800 MHz
Motherboard Form-Factor
ATX
PC Component Type
Mainboard
PCI-Express x1 Slots
3
PCI-Express x16 Slots
2
PCIe 4.0 Support
false
RAID
RAID 0, RAID 1, RAID 10
RGB LED Headers
2
SATA Ports
6x SATA 6Gb/s
Slot support M2 #1
M2: SATA3 & PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #2
M2: SATA3 or PCIe Gen3 x4 (32 Gb/s)
Thunderbolt
1x Thunderbolt
Total RAM Maximum Size
128GB
USB 2.0 Headers
2x USB 2.0 (Support 4 USB Ports)
USB 2.0 Type-A
4x
USB 3.x Headers
1 x USB 3.2 Gen1 (Supports 2 USB 3.2 Gen1 ports)
USB 3.x Type-A
6x USB 3.2
USB Type-C
1x USB 3.2 Gen 2
Wi-Fi Controller
Intel Wi-Fi 6
