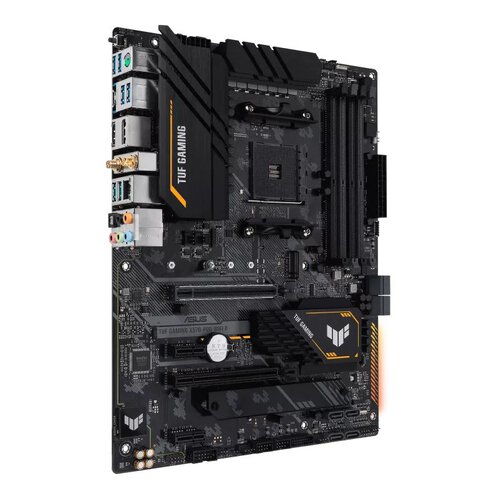

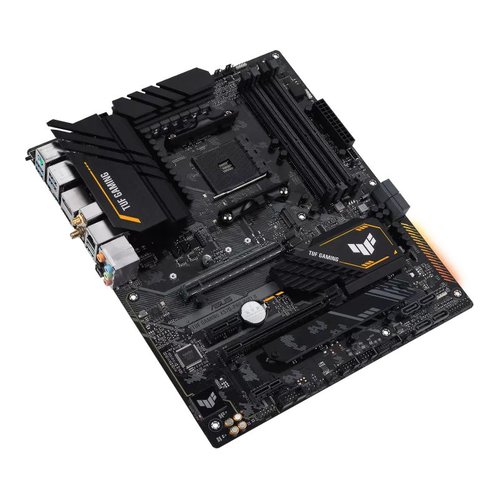

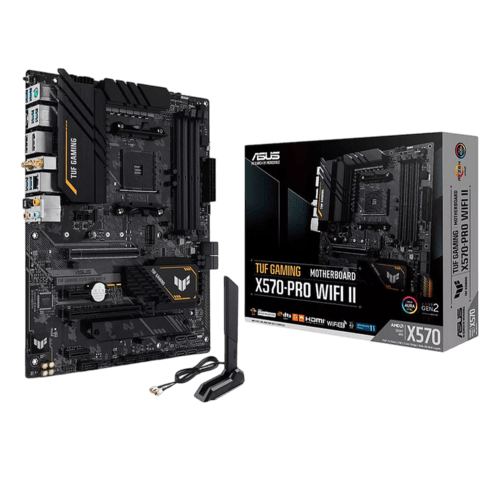

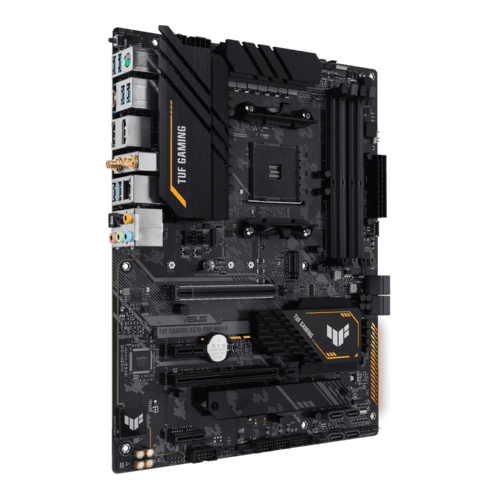

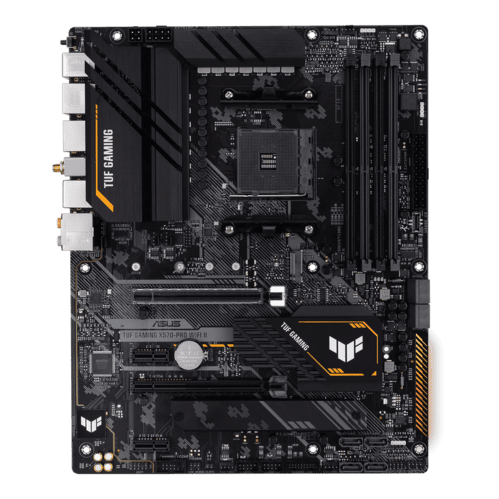

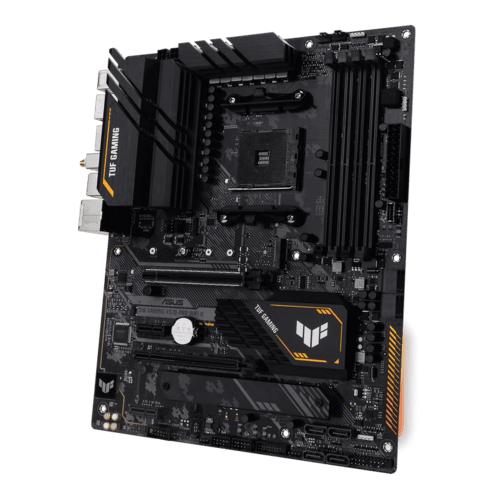

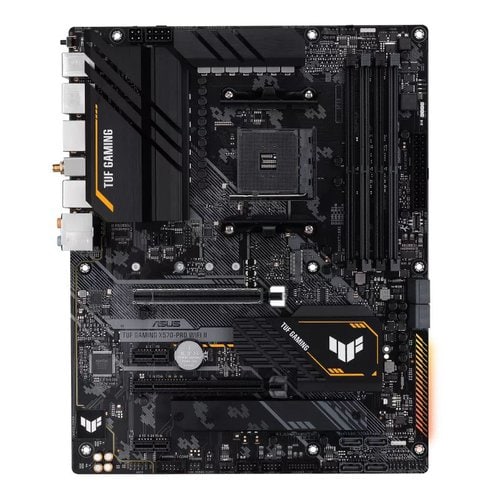

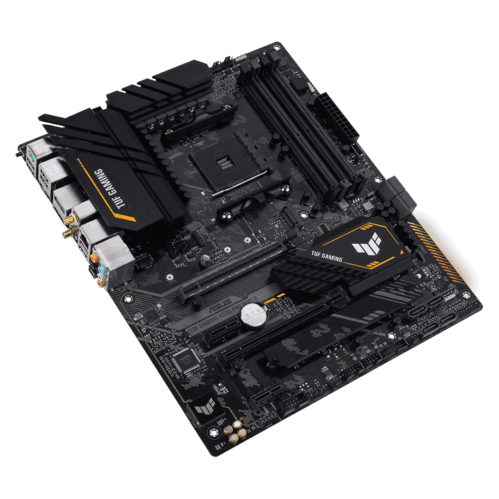

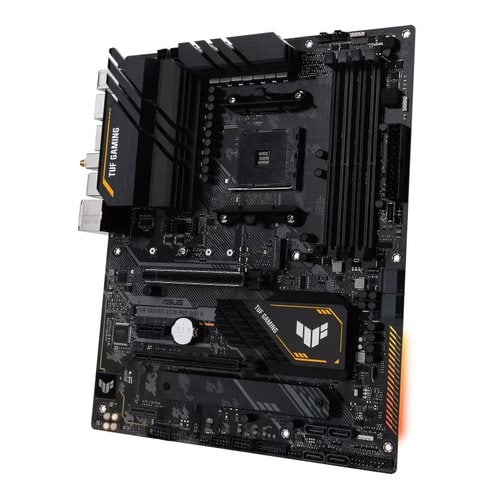

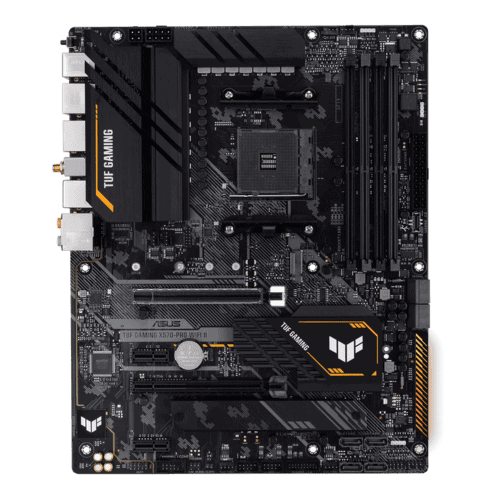

Материнская плата MB AM4 Asus TUF GAMING X570-PRO WIFI II ATX
137665
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
// CPU
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors
Chipset
AMD X570
Memory
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MT/s Un-buffered Memory
Dual Channel Memory Architecture
Graphic
1 x HDMI® 2.1 (4K@60Hz)
1x DisplayPort 1.4
Expansion Slots
1 x PCIe 4.0 x16 (x16 mode)
1 x PCIe 4.0 x16 (max at x4 mode)
2 x PCIe 4.0 x1
Storage
Supports 2 x M.2 slots and 8 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
8 x SATA 6Gb/s ports
Support Raid 0, 1, 10
LAN
1 x Intel® 2.5Gb Ethernet
TUF LANGuard

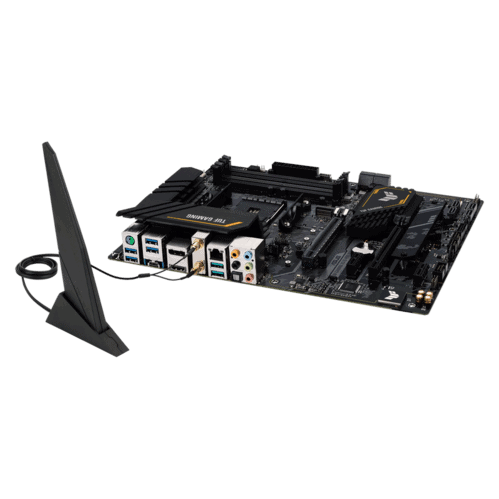

Wireless & Bluetooth
2x2 Dual Band Wi-Fi 6E (802.11a/b/g/n/ac/ax) + BT5.2
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
USB Ports

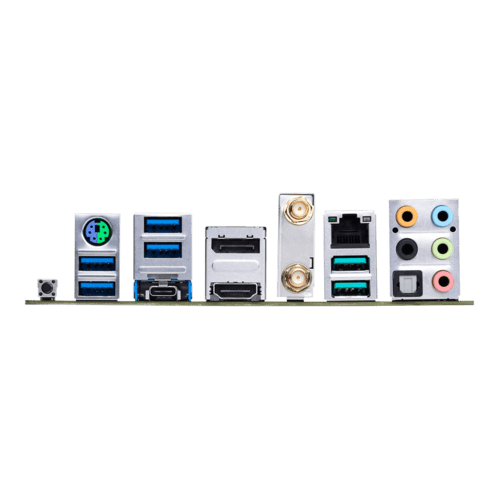

Rear USB:Total 7 ports
3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
1 x USB 3.2 Gen 2 front panel connector(s) (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
https://www.asus.com/Motherboards-Components/Motherboards/TUF-Gaming/TUF-GAMING-X570-PRO-WIFI-II/
Addressable LED Header
0
Brand
ASUS
COM Port
false
Max. Memory Speed (OC) {Mhz}
6400
PCIe 4.0 Support
false
RAID
RAID 0, RAID 1, RAID 10
RGB LED Headers
2
Slot support M2 #1
M2: PCIe Gen4 x4 (64 Gb/s) or Gen3x4 (32 Gb/s)
Slot support M2 #2
M2: SATA3 or PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #3
M2:SATA3 or PCIe Gen4 x4 (64 Gb/s)
USB 2.0 Headers
2x USB 2.0 (Support 3 USB Ports)
USB 3.x Headers
1x USB 3.2 Gen2 Type-C + 2x USB 3.2 Gen1 (Support 4 USB 3.2 Gen1 ports)
