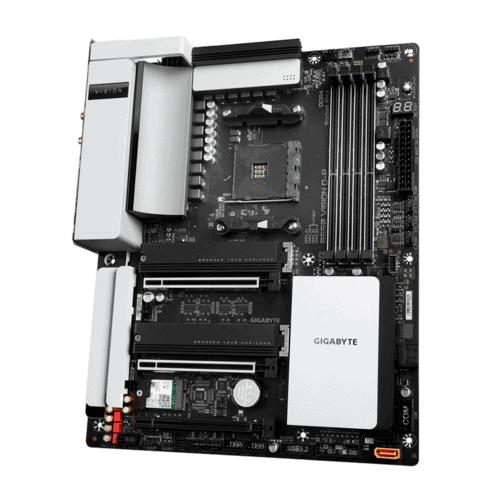

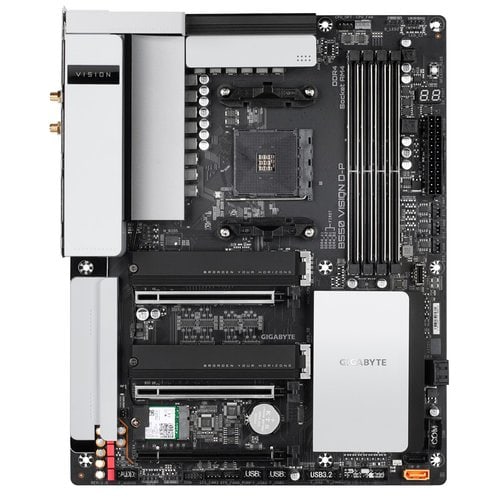

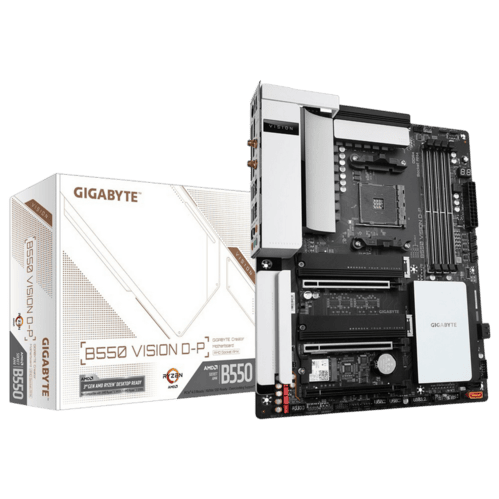

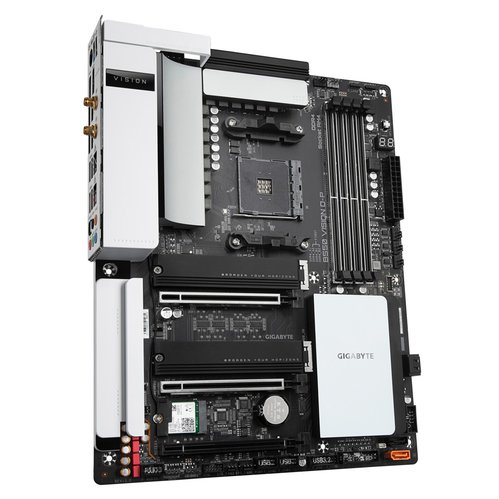

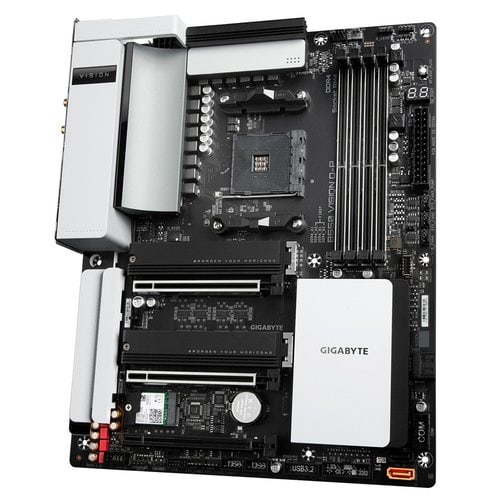

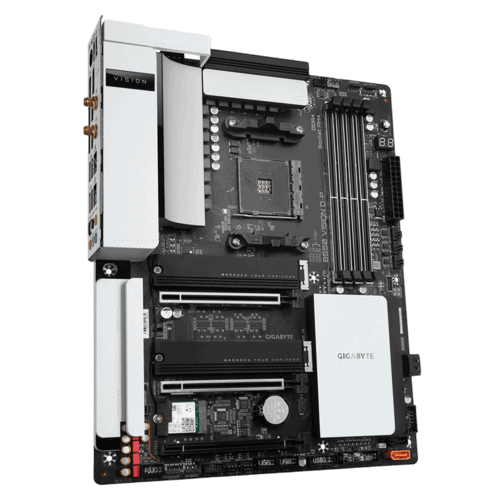

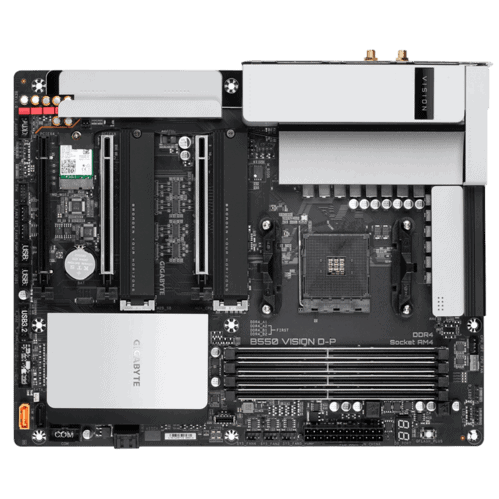

MB AM4 Gigabyte B550 VISION D-P 1.0 ATX

Стоимость и сроки доставки
// CPU AMD Socket AM4, support for : AMD Ryzen™ 5000 Series / 3rd Generation AMD Ryzen™ processors / 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors Chipset AMD B550 Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Onboard Graphics Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors+Intel® Thunderbolt™ 3 Controller: 2 x Intel® Thunderbolt™ 3 connectors (USB Type-C™ ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Maximum shared memory of 16 GB Audio Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. Support for DTS:X® Ultra LAN Intel® 2.5GbE LAN chip (2.5 Gbit/1000 Mbit/100 Mbit) (LAN1) Realtek® 2.5GbE LAN chip (2.5 Gbit/1000 Mbit/100 Mbit) (LAN2) Wireless Communication module Intel® Wi-Fi 6 AX200 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU (supporting PCIe 4.0 x16 mode) 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU (supporting PCIe 4.0 x8 mode) 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset (supporting PCIe 3.0 x4 mode) Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSD (support SATA and PCIe 4.0 x4/x2 SSDs) 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSD (supporting SATA and PCIe 3.0 x4/x2 SSDs) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 USB 3 x USB 3.2 Gen 1 ports on the back panel 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB Type-C™ ports on the back panel, with USB 3.2 Gen 2 support (Intel® Thunderbolt™ 3 Controller) 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 1 x USB 2.0/1.1 port on the back panel 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers) https://www.gigabyte.com/Motherboard/B550-VISION-D-P-rev-10#kf
Addressable LED Header
2
Audio Jacks
HD Audio Jacks: Line in / Front Speaker / Microphone
Bluetooth Compliance
5.0
Brand
Gigabyte
COM Port
false
Dimensions
30.5 x 24.4 cm
DisplayPort
--
DVI
--
Ethernet (LAN) controller #1
2.5 Gigabit Ethernet Intel I225-V
Ethernet (LAN) controller #2
Gigabit Ethernet (Realtek RTL8125)
HDMI
1x HDMI 2.1
M.2 Expansion Slots
1
Max. Memory Speed (OC) {Mhz}
5400
Memory Speed
2133 MHz
Motherboard Form-Factor
ATX
PC Component Type
Mainboard
PCI-Express x16 Slots
1
PCIe 4.0 Support
true
RAID
RAID 0, RAID 1, RAID 10
RGB LED Headers
2
SATA Ports
4x SATA 6Gb/s
Slot support M2 #1
M2: SATA3 & PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #2
--
Slot support M2 #3
--
Slot support M2 #4
--
SPDIF Out
1x Optical SPDIF Out Port
Thunderbolt
2x Thunderbolt 3
Total RAM Maximum Size
128GB
USB 2.0 Headers
2x USB 2.0 (Support 4 USB Ports)
USB 2.0 Type-A
2x
USB 3.x Headers
1 x USB 3.2 Gen1 (Supports 2 USB 3.2 Gen1 ports)
USB 3.x Type-A
5x USB 3.2
USB Type-C
2x USB 3.x (Thunderbolt 3)
Wi-Fi Controller
802.11ac 2x2 Wi-Fi + BT 5.x
