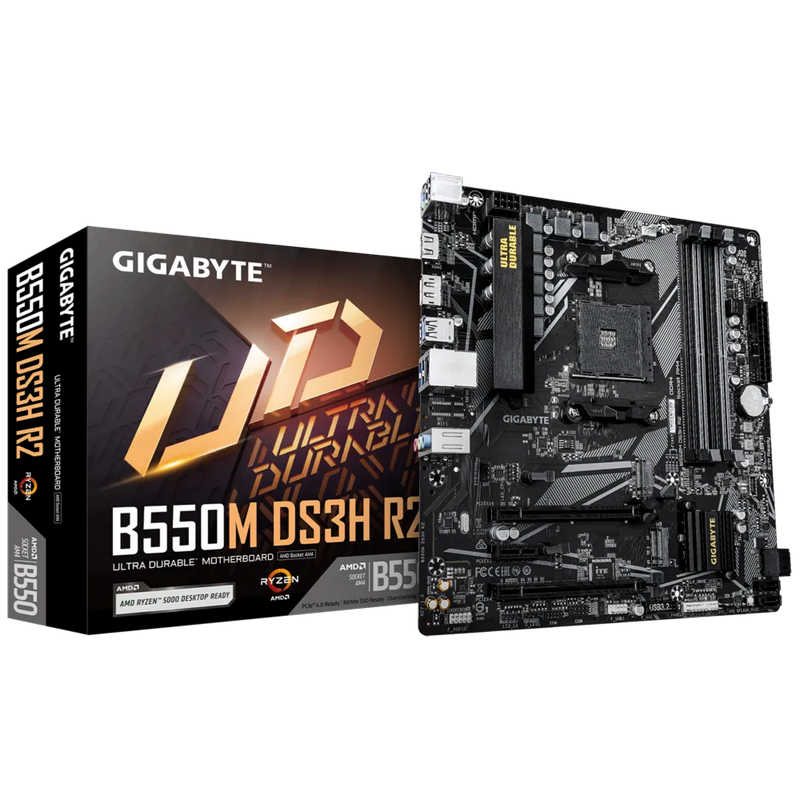

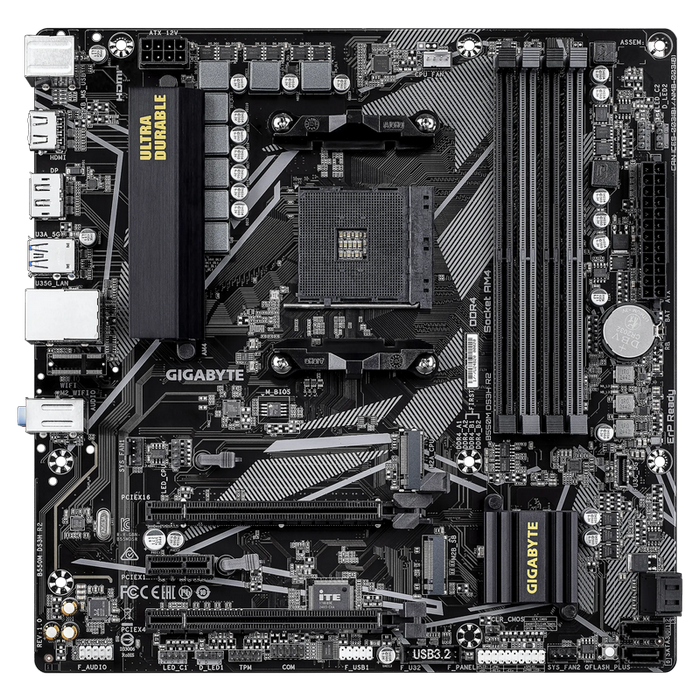

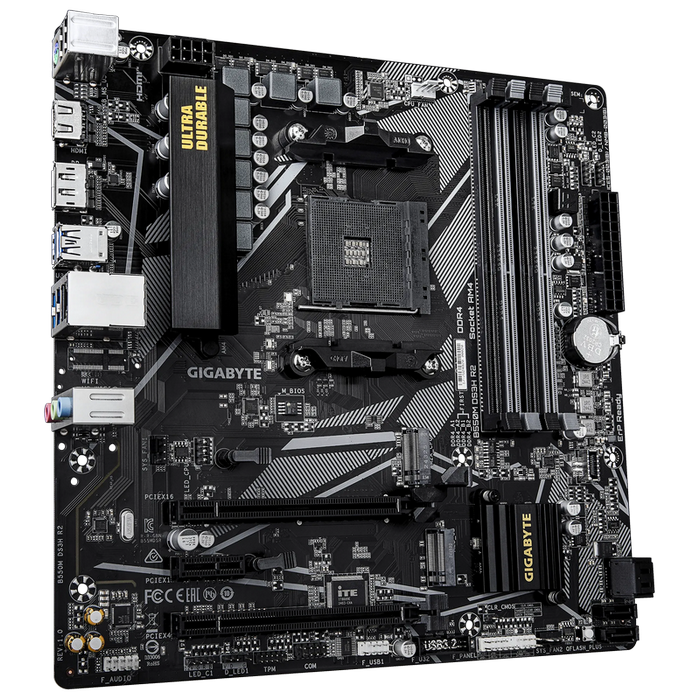

MB AM4 Gigabyte B550M DS3H R2 mATX
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Factor de formă a plăcii de baza: Micro-ATX Socket: AM4 Chipset: AMD B550 Tip Memorie: DDR4 SDRAM Capacitate max. Totală RAM: 128 GB Sloturi memorie: 4x DIMM Frecvență memorie: 3200 MHz
Addressable LED Header
1
Audio Chipset
High Definition (HD) Audio
Audio Jacks
3x audio jacks
Brand
Gigabyte
COM Port
false
COM Port Header
0
CPU Support
Ryzen series (5000 G-series/4000 G-series/3000 G-series/5000/3000)
DisplayPort
1x DP 1.4
Ethernet (LAN) controller #1
1 Gigabit Realtek Ethernet
HDMI
1x HDMI 2.1
LPT Port Header
0
M.2 Expansion Slots
2
Max. Memory Speed (OC) {Mhz}
4733
Memory Slots QTY
4x DIMM
Memory Type
DDR4 SDRAM
Motherboard Form-Factor
Micro-ATX
PC Component Type
Mainboard
PCI Slots
0
PCI-Express x1 Slots
1
PCI-Express x16 Slots
2
PCI-Express x4 Slots
0
PCIe 4.0 Support
true
PS/2
1x
RAID
RAID 0, RAID 1, RAID 10
RGB LED Headers
1
SATA Ports
4x SATA 6Gb/s
Socket
AM4
Total RAM Maximum Size
128GB
USB 2.0 Headers
1x USB 2.0
USB 2.0 Type-A
2x
USB 3.x Headers
2 x USB 3.2 Gen1 (Supports 2 USB 3.2 Gen1 ports)
USB 3.x Type-A
4x USB 3.2 Gen 1
