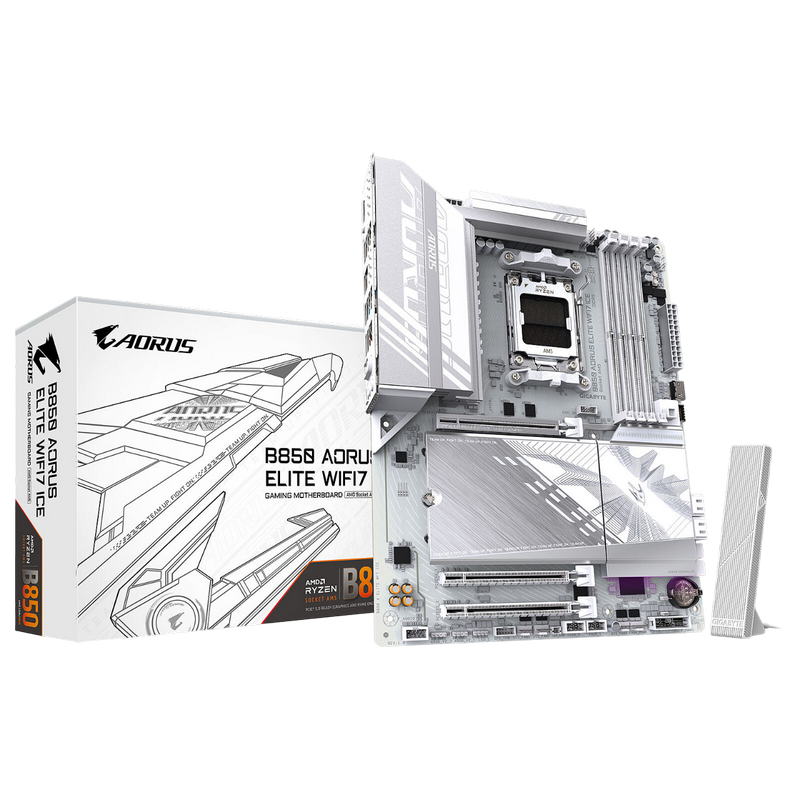

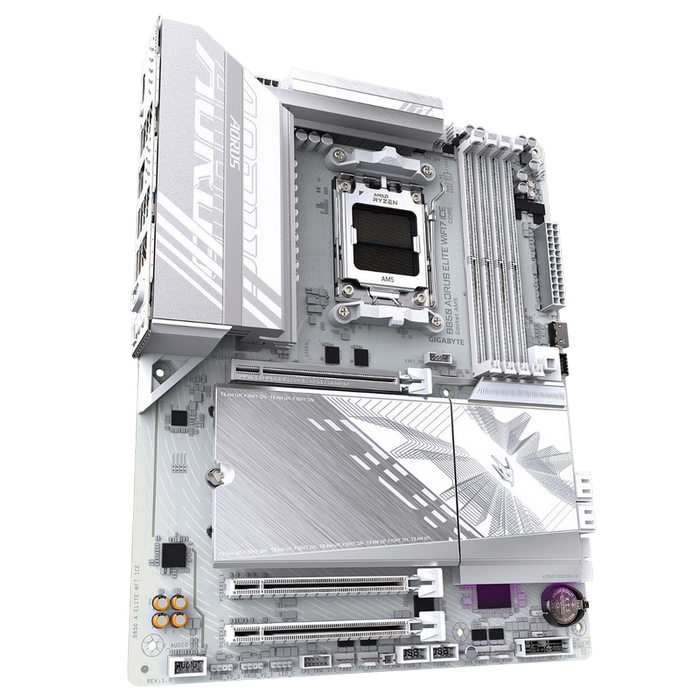

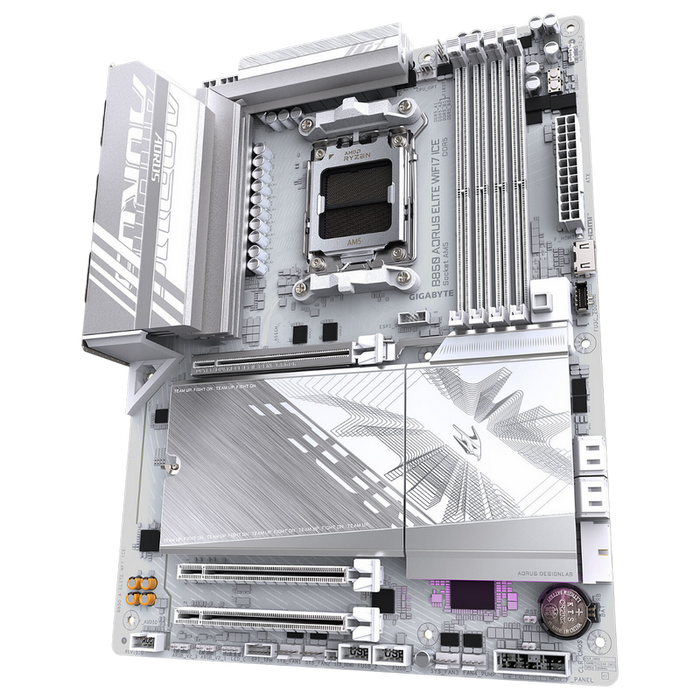

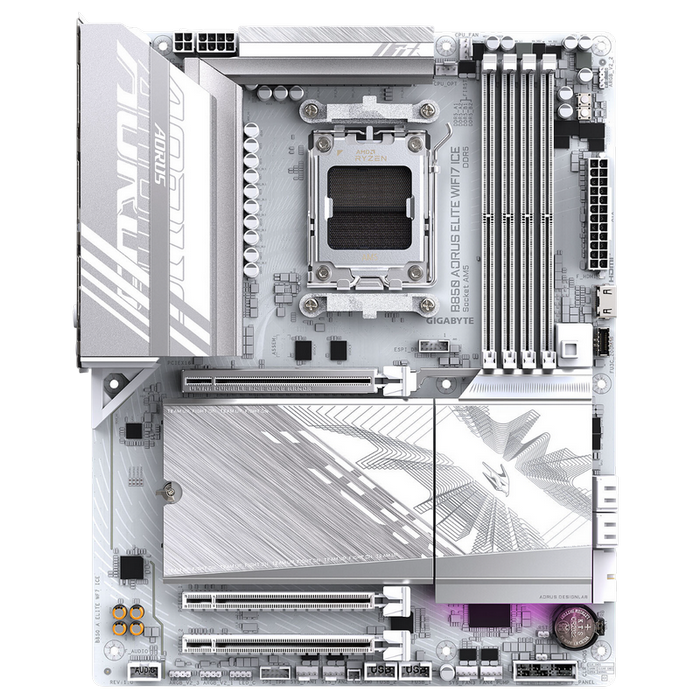

MB AM5 Gigabyte B850 A ELITE WIFI7 ICE ATX
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Factor de formă a plăcii de baza: ATX
Socket: AM5
Chipset: AMD B850
Tip Memorie: DDR5 SDRAM
Capacitate max. Totală RAM: 256GB
Sloturi memorie: 4x DIMM
Frecvență memorie: 5200 MHz
Addressable LED Header
3
Audio Chipset
Realtek 7.1 Surround Sound High Definition
Audio Jacks
2x audio jacks
Bluetooth Compliance
5.4
Brand
Gigabyte
COM Port
false
CPU Support
Ryzen series (7000/8000/9000)
DisplayPort
1x DP 1.4
Ethernet (LAN) controller #1
2.5 Gigabit Realtek Ethernet
HDMI
1x HDMI 1.4
M.2 Expansion Slots
3
Max. Memory Speed (OC) {Mhz}
8200
Memory Slots QTY
4x DIMM
Memory Speed
5200 MHz
Memory Type
DDR5 SDRAM
Motherboard Form-Factor
ATX
PC Component Type
Mainboard
PCI-Express x16 Slots
3
PCIe 4.0 Support
true
PS/2
1x
RAID
RAID 0, RAID 1, RAID 10
RGB LED Headers
1
SATA Ports
4x SATA 6Gb/s
Slot support M2 #1
M2: type 25110/22110/2580/2280 (PCIe Gen5 x4/x2)
Slot support M2 #2
M2: type 25110/22110/2580/2280 (PCIe Gen4 x4/x2)
Slot support M2 #3
M2: type 25110/22110/2580/2280 PCIe 4.0 x4/x2
Socket
AM5
SPDIF Out
1x Optical SPDIF Out Port
Total RAM Maximum Size
256GB
USB 2.0 Headers
2x USB 2.0
USB 2.0 Type-A
4x
USB 3.x Headers
1x USB Type-C + 1x USB 3.2 Gen1
USB 3.x Type-A
7x USB 3.2
USB Type-C
1 x
Wi-Fi Controller
Realtek Wi-Fi 7 RTL8922AE
