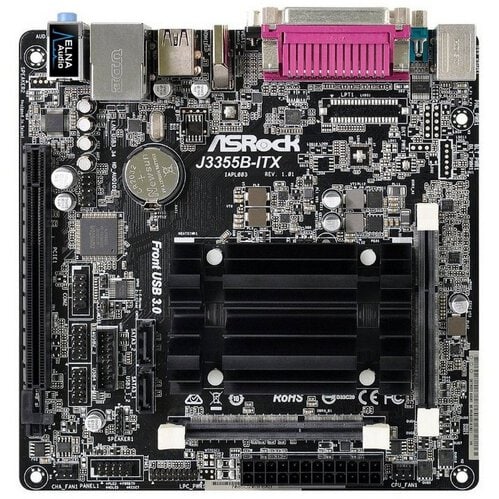

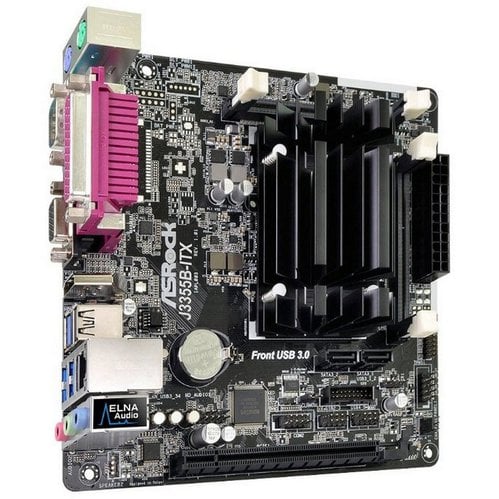

Материнская плата MB ASRock J3355B-ITX (Celeron Dual-Core J3355/2xDDR3 SO-DIMM/2xSATA3/COM Port/LPT Port, Mini-ITX)
124681
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
// CPU
- Intel® Dual-Core Processor J3355 (up to 2.5 GHz)
Memory
- Dual Channel DDR3/DDR3L Memory Technology
- 2 x DDR3/DDR3L SO-DIMM Slots*
- Supports DDR3/DDR3L 1866/1600/1333 non-ECC, un-buffered memory
Graphics
- Integrated Intel® HD Graphics 500: 12 EUs inside (Up to 750MHz)
- Dual graphics output: support D-Sub and HDMI ports by independent display controllers
- Supports HDMI with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
Slots
- 1 x PCI Express 2.0 x16 Slot (PCIE1: x2 mode)
Storage
- 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector
- 1 x Parallel Port
- 1 x COM Port
- 1 x COM Port Header
USB
- 5 x USB 3.1 Gen1 Ports
- 5 x USB 2.0 Ports
http://www.asrock.com/mb/Intel/J3355B-ITX/
Brand
ASRock
COM Port
false
COM Port Header
1
Ethernet (LAN) controller #1
Gigabit Ethernet (Intel I219V)
PCIe 4.0 Support
false
USB 2.0 Headers
2x USB 2.0 (Support 3 USB Ports)
USB 3.x Headers
1x USB 3.2 Gen2 Type-C + 2x USB 3.2 Gen1 (Support 4 USB 3.2 Gen1 ports)
