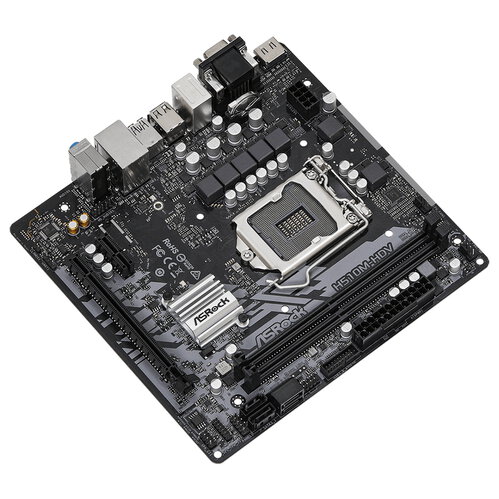

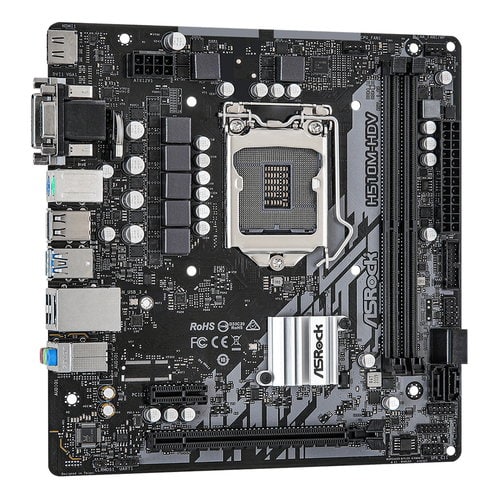

Материнская плата MB S1200 ASRock H510M-HDV mATX
132384
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
// CPU
- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
Chipset
- Intel® H510
Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
- Max. capacity of system memory: 64GB**
Graphics
Three graphics output options: D-Sub, DVI-D and HDMI**
- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- 1 x Realtek RTL8111H
Slots
11th Gen Intel® Core™ Processors
- 1 x PCI Express 4.0 x16 Slot*
- 1 x PCI Express 3.0 x1 Slot
Storage
- 4 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug
USB
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 4 x USB 2.0 Ports (Supports ESD Protection)
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
https://www.asrock.com/MB/Intel/H510M-HDV/index.asp#Overview
Brand
ASRock
COM Port
false
Ethernet (LAN) controller #1
2.5 Gigabit Realtek Ethernet
Ethernet (LAN) controller #2
Gigabit Ethernet (Realtek RTL8125)
Max. Memory Speed (OC) {Mhz}
8400
PCIe 4.0 Support
true
USB 2.0 Headers
2x USB 2.0
USB 3.x Headers
2x
