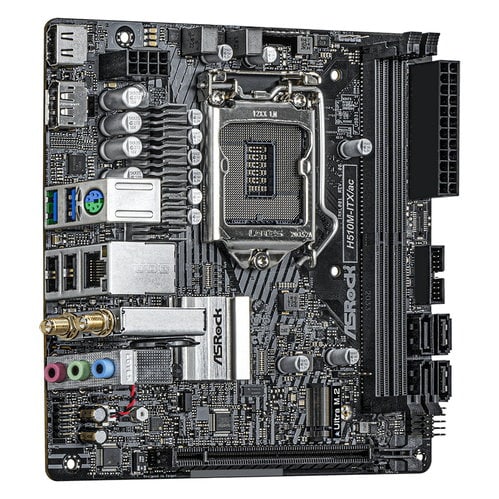

MB S1200 ASRock H510M-ITX/AC mini-ITX
 Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
 // CPU - Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200) Chipset - Intel® H510 Memory - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - 11th Gen Intel® Core™ Processors support DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory* - Max. capacity of system memory: 64GB** Graphics - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) LAN - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V Wireless LAN - Intel® 802.11ac WiFi Module - Supports IEEE 802.11a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 433Mbps - Supports Bluetooth 4.2 / 3.0 + High speed class II Slots 11th Gen Intel® Core™ Processors - 1 x PCI Express 4.0 x16 Slot* - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O) Storage - 4 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug* - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** USB - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) https://www.asrock.com/MB/Intel/H510M-ITXac/index.asp#Overview
 Audio Jacks
  HD Audio Jacks: Line in / Front Speaker / Microphone
 Bluetooth Compliance
  --
 Brand
   ASRock
 COM Port
  false
 Dimensions
  17.0 x 17.0 cm
 DisplayPort
  1x DP 1.4
 DVI
  --
 Ethernet (LAN) controller #1
  Gigabit Ethernet (Intel I219V)
 Ethernet (LAN) controller #2
  --
 HDMI
  1x HDMI 2.0
 M.2 Expansion Slots
  1
 Max. Memory Speed (OC) {Mhz}
  3200
 Memory Speed
  2133 MHz
 Motherboard Form-Factor
  Mini-ITX
 PC Component Type
  Mainboard
 PCI-Express x16 Slots
  1
 PCIe 4.0 Support
  true
 SATA Ports
  4x SATA 6Gb/s
 Slot support M2 #1
  M2: PCIe Gen4 x4 (64 Gb/s) or Gen3x4 (32 Gb/s)
 Slot support M2 #2
  --
 Slot support M2 #3
  --
 Slot support M2 #4
  --
 SPDIF Out
  --
 Thunderbolt
  --
 Total RAM Maximum Size
  64GB
 USB 2.0 Headers
  1x USB 2.0 (Support 2 USB Ports)
 USB 2.0 Type-A
  2x
 USB 3.x Headers
  1 x USB 3.2 Gen1 (Supports 2 USB 3.2 Gen1 ports)
 USB 3.x Type-A
  2x USB 3.2
 USB Type-C
  --
 Wi-Fi Controller
  --
