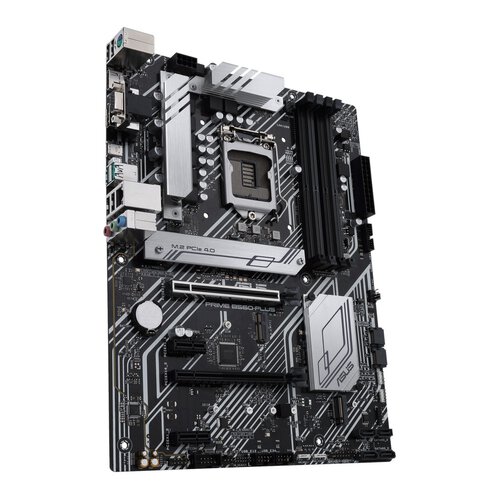

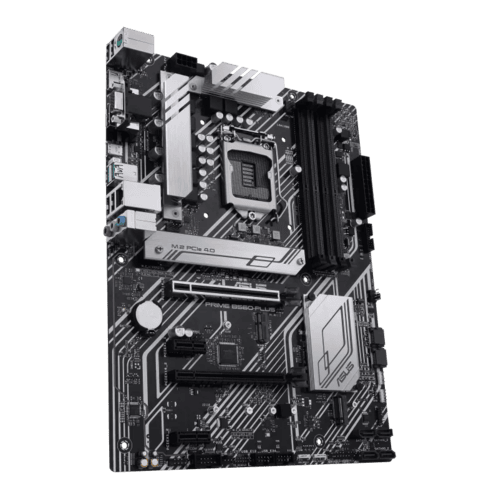

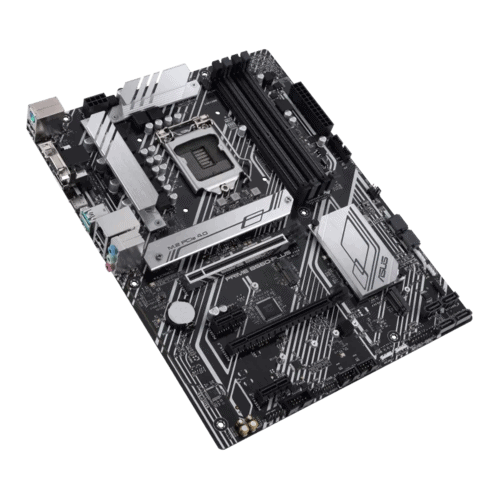

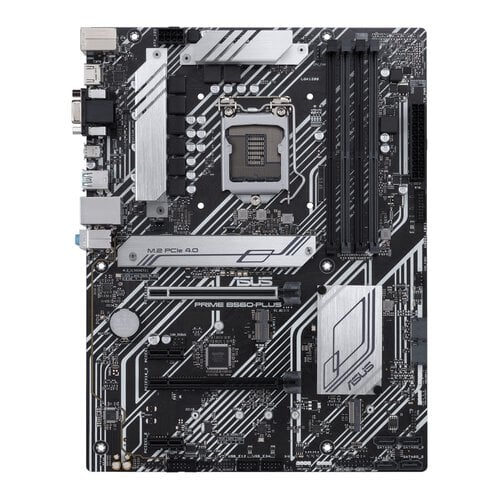

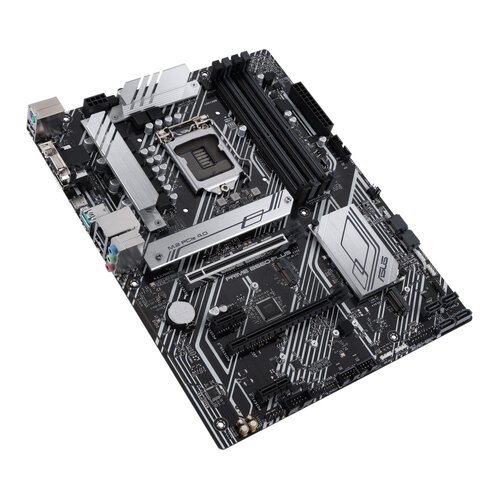

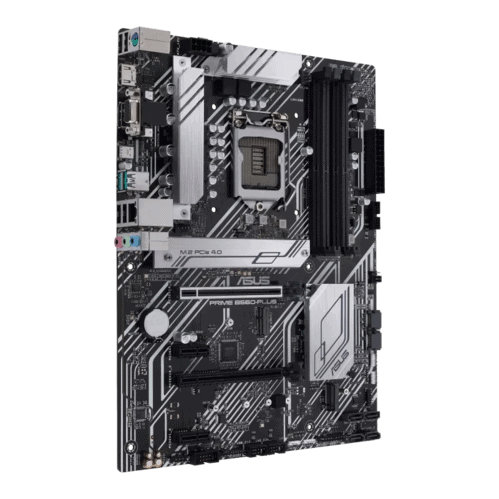

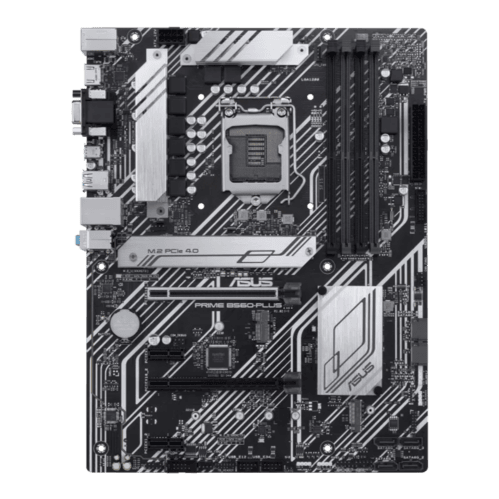

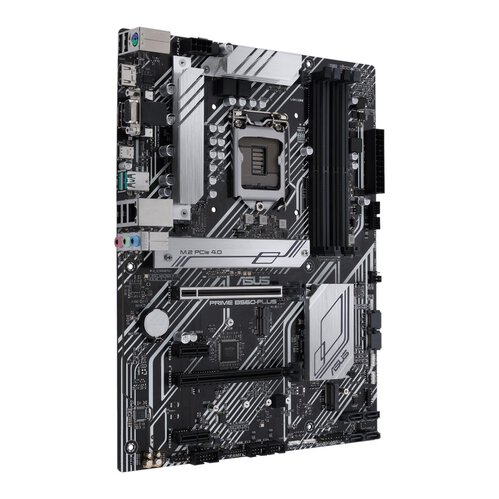

Материнская плата MB S1200 Asus PRIME B560-PLUS ATX
126754
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
// CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset
Intel® B560 Chipset
Memory
4 x DIMM, Max. 128GB, DDR4 DDR4
4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory*
Dual channel memory architecture
Graphics
1 x DisplayPort 1.4
1 x D-Sub
1 x HDMI 1.4/2.0***
Expansion Slots
1 x PCIe 4.0/3.0 x16 slot*
1 x PCIe 3.0 x16 slot (supports x4 mode)*
2 x PCIe 3.0 x1 slots
Storage
Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® 11th Gen Processors
- M.2_1 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x 4 )
- Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
- M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode modes)
- 6 x SATA 6Gb/s ports
Ethernet
1 x Intel® I219-V 1Gb Ethernet
Wireless & Bluetooth
M.2 slot only (Key E, CNVi & PCIe)
Audio
Realtek ALC897 7.1-Channel High Definition Audio CODEC*
USB

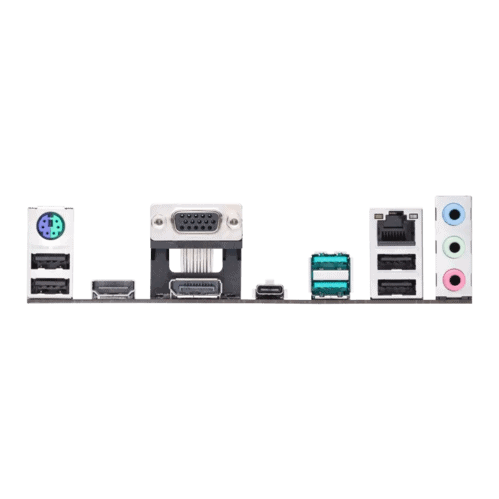

Rear USB:Total 7 ports
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x USB Type-C®)
4 x USB 2.0 ports
Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
https://www.asus.com/Motherboards-Components/Motherboards/All-series/PRIME-B560-PLUS/
Brand
ASUS
COM Port
false
COM Port Header
1
Ethernet (LAN) controller #1
1 Gigabit Realtek Ethernet
Ethernet (LAN) controller #2
Gigabit Ethernet (Realtek RTL8125)
Max. Memory Speed (OC) {Mhz}
5100
PCIe 4.0 Support
true
RGB LED Headers
2
Slot support M2 #1
M2: PCIe Gen3 x4 (32 Gb/s) or Gen3x2 (16 Gb/s)
Slot support M2 #2
M2: SATA3 or PCIe Gen3 x4 (32 Gb/s)
Slot support M2 #3
--
Slot support M2 #4
M2: SATA & PCIe Gen4 x4
USB 2.0 Headers
2x USB 2.0 (Support 3 USB Ports)
USB 3.x Headers
2x
