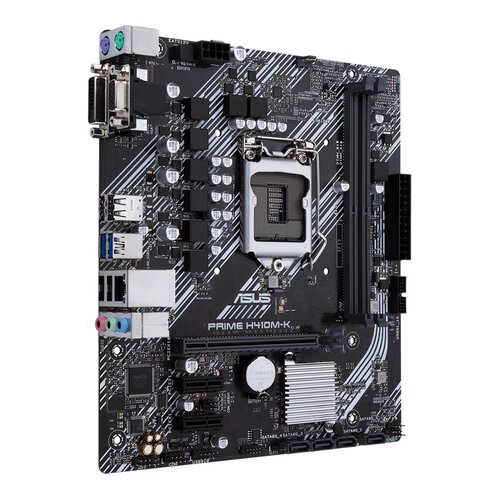

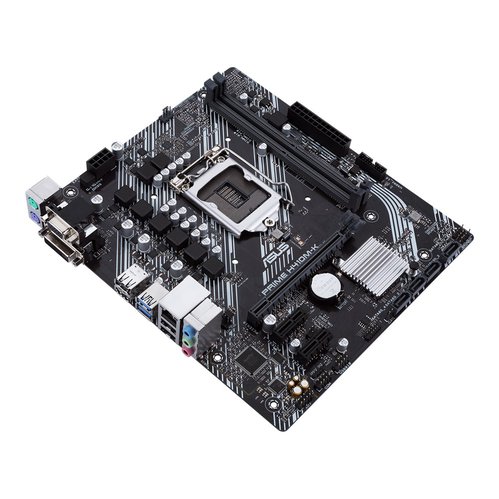

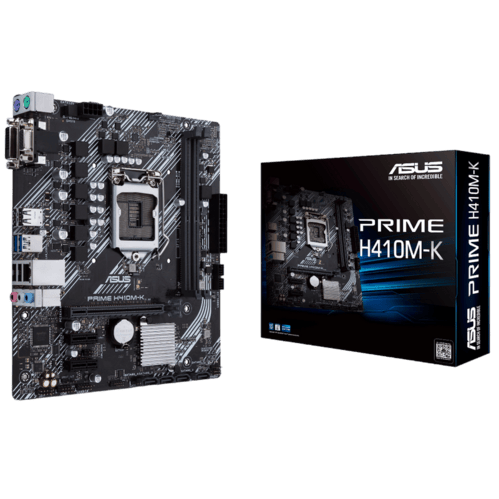

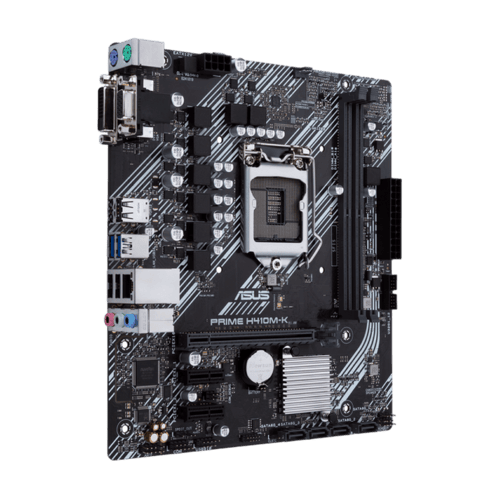

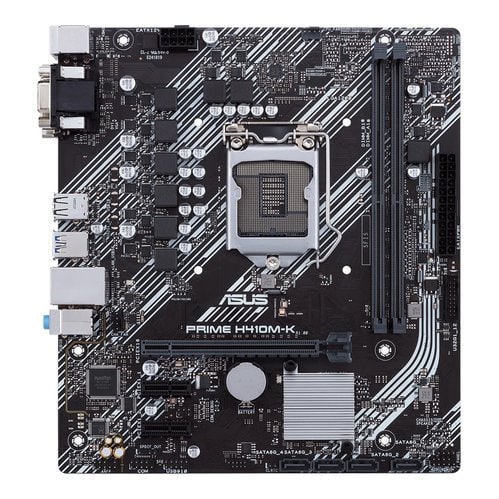

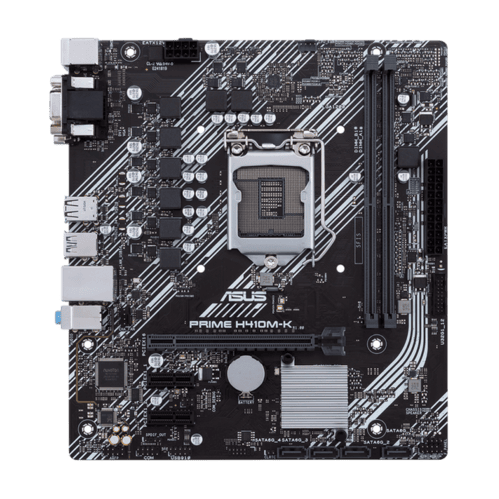

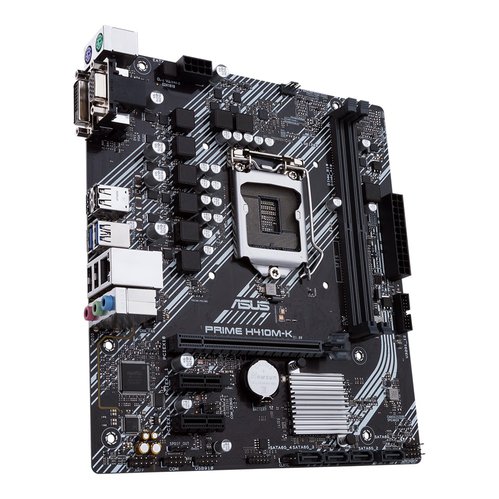

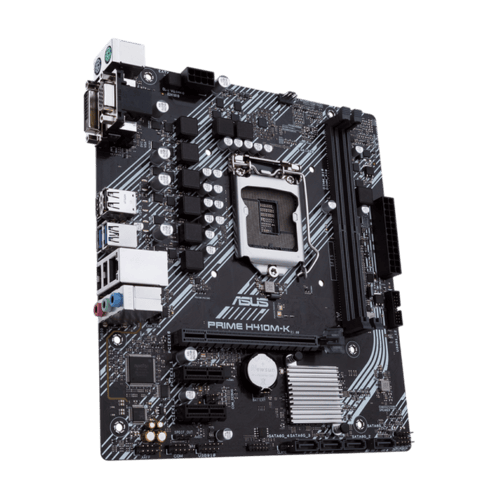

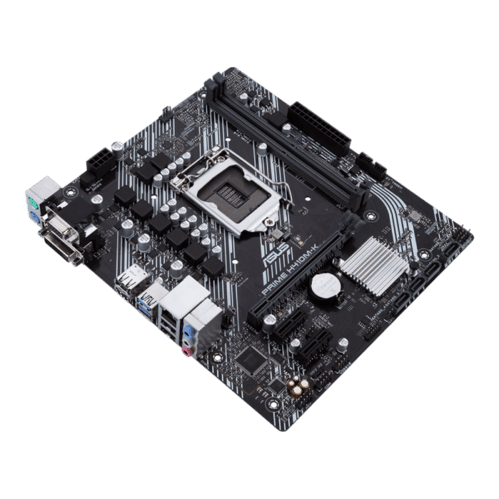

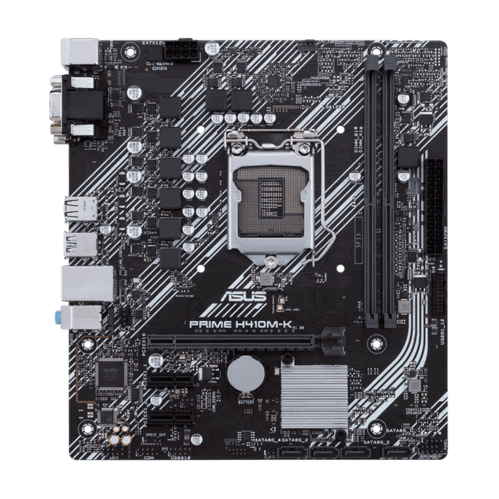

MB S1200 Asus PRIME H410M-K mATX
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Описание

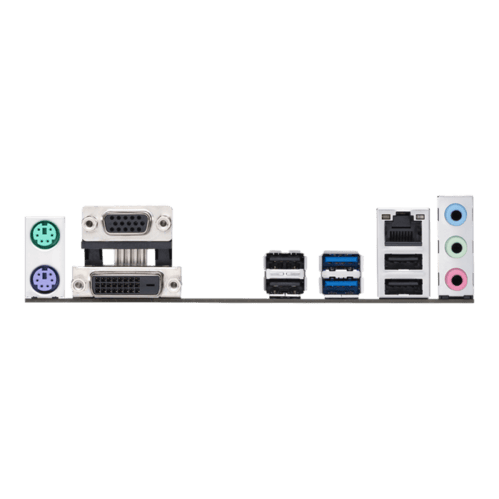

// CPU - Supports 10th Gen Intel® Core™ Processors (Socket 1200) Chipset - Intel® H410 Memory 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Graphic Integrated Graphics Processor * 1 x DVI-D 1 x D-Sub Expansion Slots 1 x PCIe 3.0 x16 (x16 mode) 2 x PCIe 3.0 x1 Storage 4 x SATA 6Gb/s port(s) LAN Realtek® RTL8111H Audio Realtek ALC887 7.1-Channel High Definition Audio CODEC USB Ports Rear USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s) https://www.asus.com/Motherboards/PRIME-H410M-K/overview/
Характеристики
Audio Jacks
HD Audio Jacks: Line in / Front Speaker / Microphone
Bluetooth Compliance
--
Brand
ASUS
COM Port
false
COM Port Header
1
Dimensions
22.6 x 20.3 cm
DisplayPort
--
DVI
1x DVI-I
Ethernet (LAN) controller #1
Gigabit Ethernet (Realtek RTL8111H)
Ethernet (LAN) controller #2
--
HDMI
-
Max. Memory Speed (OC) {Mhz}
2933
Memory Speed
2133 MHz
Motherboard Form-Factor
Micro-ATX
PC Component Type
Mainboard
PCI-Express x1 Slots
2
PCI-Express x16 Slots
1
PCIe 4.0 Support
false
SATA Ports
4x SATA 6Gb/s
Slot support M2 #1
--
Slot support M2 #2
--
Slot support M2 #3
--
Slot support M2 #4
--
Thunderbolt
--
Total RAM Maximum Size
64GB
USB 2.0 Headers
1x USB 2.0 (Support 2 USB Ports)
USB 2.0 Type-A
4x
USB 3.x Headers
1 x USB 3.2 Gen1 (Supports 2 USB 3.2 Gen1 ports)
USB 3.x Type-A
2x USB 3.2
USB Type-C
--
Wi-Fi Controller
--
