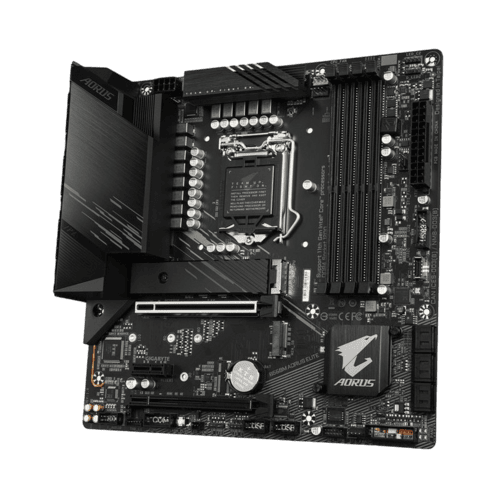

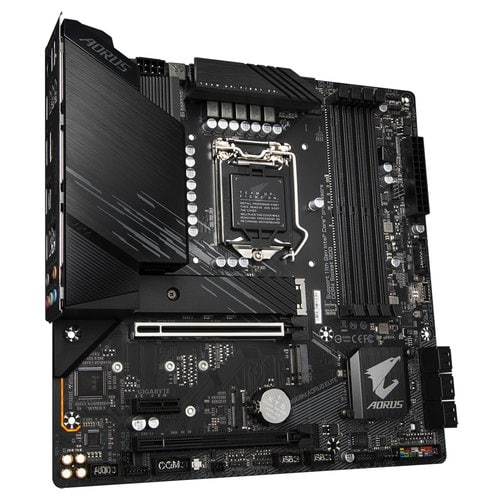

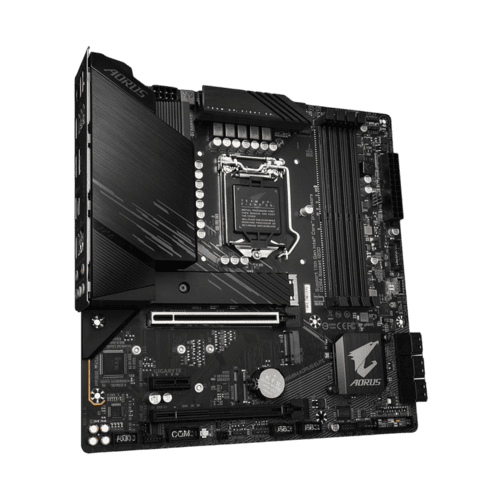

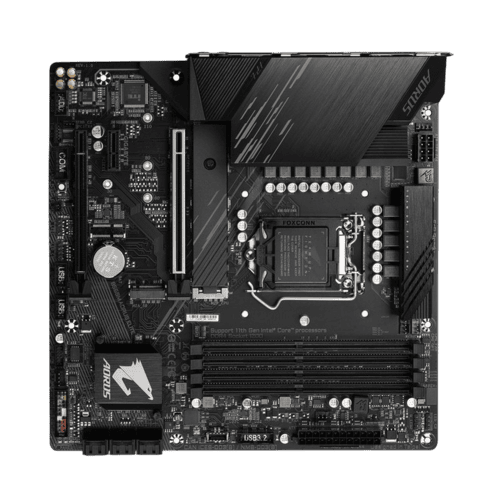

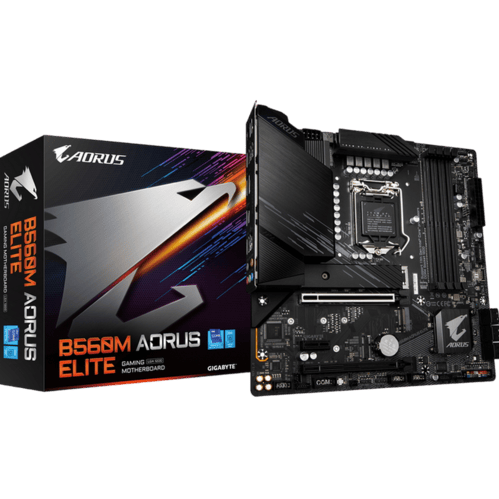

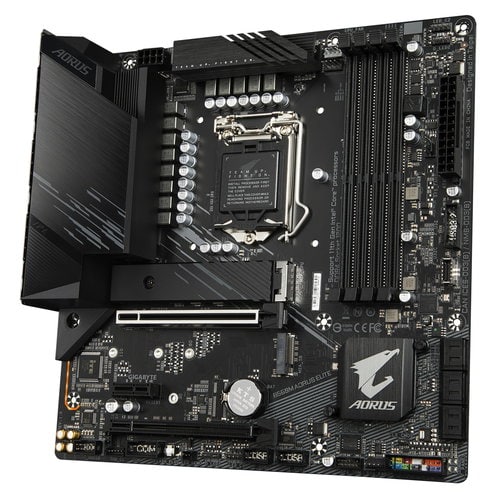

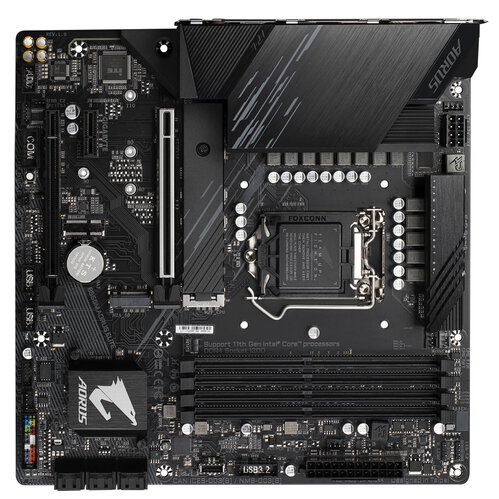

MB S1200 Gigabyte B560M AORUS ELITE 1.0 mATX
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
// CPU - 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors - 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* Chipset Intel® B560 Memory 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Audio Realtek® Audio CODEC LAN Realtek®2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot Storage Interface 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)* 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors USB 1 x USB Type-C® port on the back panel, with USB 3.2 Gen2 support 1 x USB 3.2 Gen2 Type-A ports (red) on the back panel 3 x USB 3.2 Gen1 ports (2 ports on the back panel, 1 port available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel 1 x USB Type-C® port with USB 3.2 Gen1 support, available through the internal USB header 2 x USB 3.2 Gen1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) https://www.gigabyte.com/Motherboard/B560M-AORUS-ELITE-rev-10#kf
Addressable LED Header
2
Audio Jacks
HD Audio Jacks: Line in / Front Speaker / Microphone
Bluetooth Compliance
--
Brand
Gigabyte
COM Port
false
Dimensions
24.4 x 24.4 cm
DisplayPort
1x DP 1.2
DVI
--
Ethernet (LAN) controller #1
Gigabit Ethernet (Realtek RTL8125)
Ethernet (LAN) controller #2
--
HDMI
1x HDMI 1.4
M.2 Expansion Slots
2
Max. Memory Speed (OC) {Mhz}
5333
Memory Speed
2133 MHz
Motherboard Form-Factor
Micro-ATX
PC Component Type
Mainboard
PCI-Express x1 Slots
1
PCI-Express x16 Slots
1
PCIe 4.0 Support
true
RGB LED Headers
2
SATA Ports
6x SATA 6Gb/s
Slot support M2 #1
M2: PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #2
M2: SATA3 or PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #3
--
Slot support M2 #4
--
SPDIF Out
--
Thunderbolt
--
Total RAM Maximum Size
128GB
USB 2.0 Headers
2x USB 2.0 (Support 4 USB Ports)
USB 2.0 Type-A
6x
USB 3.x Headers
2 x USB 3.1 Gen1 (Supports 4 USB 3.1 Gen1 ports)
USB 3.x Type-A
3x USB 3.2
USB Type-C
1 x, USB 3.2
Wi-Fi Controller
--
