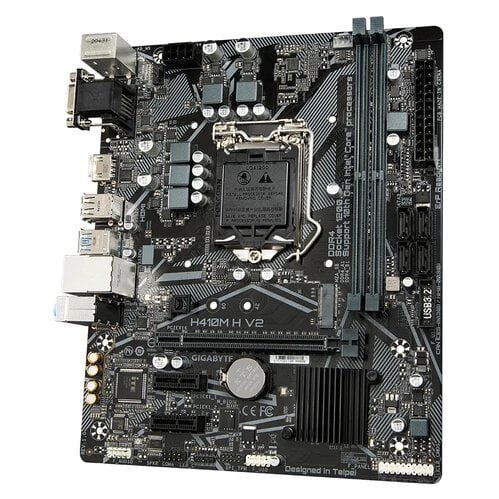

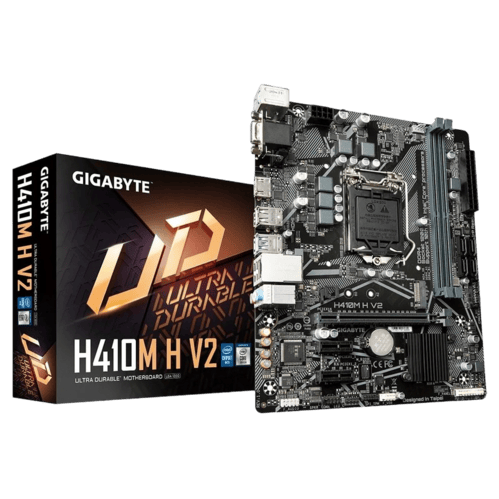

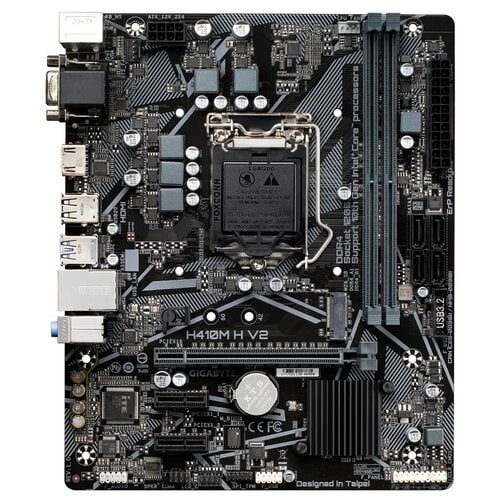

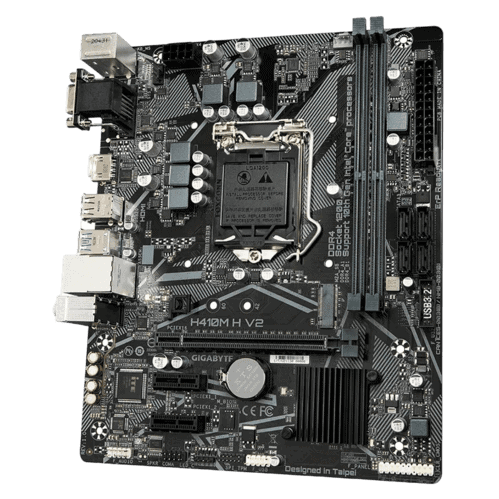

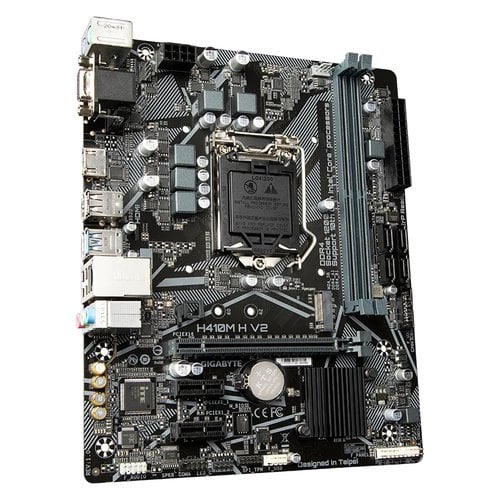

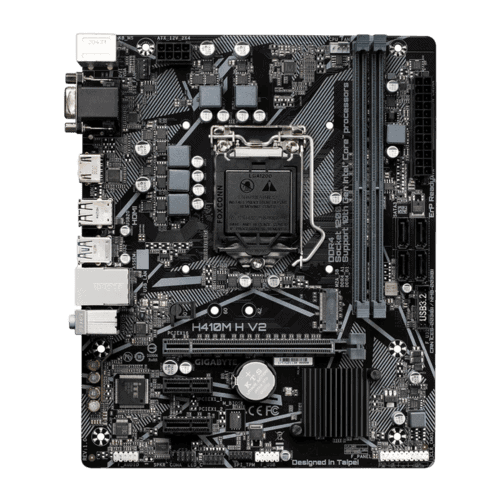

MB S1200 Gigabyte H410M H V2 1.0 mATX
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
// CPU - Supports 10th Gen Intel® Core™ Processors (Socket 1200) Chipset - Intel® H470 Memory Support for DDR4 2933/2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz Audio Realtek® Audio CODEC LAN Intel® GbE LAN chip (1000/100 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slot Storage Interface 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 USB 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) https://www.gigabyte.com/Motherboard/H410M-H-V2-rev-10#kf

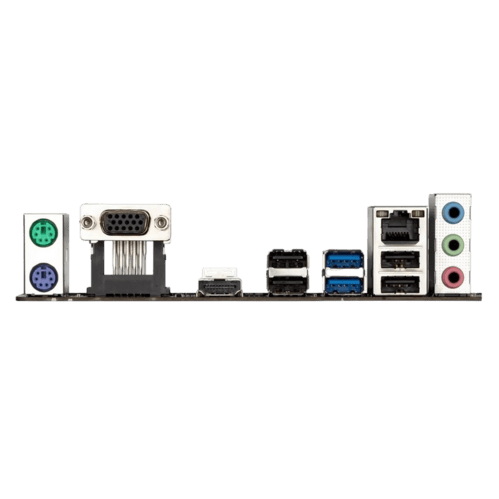

Audio Jacks
HD Audio Jacks: Line in / Front Speaker / Microphone
Bluetooth Compliance
--
Brand
Gigabyte
COM Port
false
D-Sub (VGA)
1x
Dimensions
22.6 x 18.5 cm
DisplayPort
--
DVI
--
Ethernet (LAN) controller #1
2.5 Gigabit Ethernet Intel I225-V
Ethernet (LAN) controller #2
--
HDMI
1x HDMI 1.4
M.2 Expansion Slots
1
Max. Memory Speed (OC) {Mhz}
2933
Memory Speed
2133 MHz
Motherboard Form-Factor
Micro-ATX
PC Component Type
Mainboard
PCI-Express x1 Slots
2
PCI-Express x16 Slots
1
PCIe 4.0 Support
false
RAID
RAID 0, RAID 1, RAID 5, RAID 10
RGB LED Headers
1
SATA Ports
4x SATA 6Gb/s
Slot support M2 #1
M2: SATA3 & PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #2
--
Slot support M2 #3
--
Slot support M2 #4
--
SPDIF Out
--
Thunderbolt
--
Total RAM Maximum Size
64GB
USB 2.0 Headers
1x USB 2.0 (Support 2 USB Ports)
USB 2.0 Type-A
4x
USB 3.x Headers
1 x USB 3.2 Gen1 (Supports 2 USB 3.2 Gen1 ports)
USB 3.x Type-A
2x USB 3.2
USB Type-C
--
Wi-Fi Controller
--
