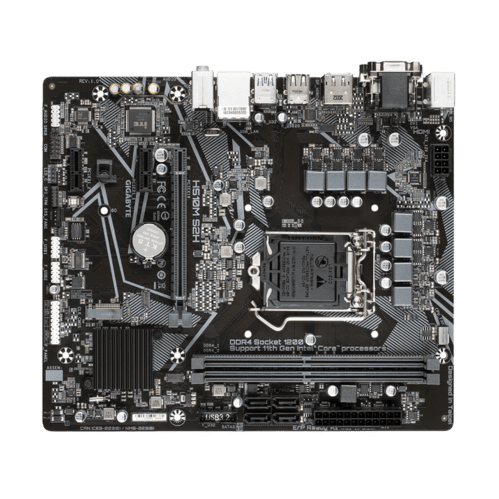

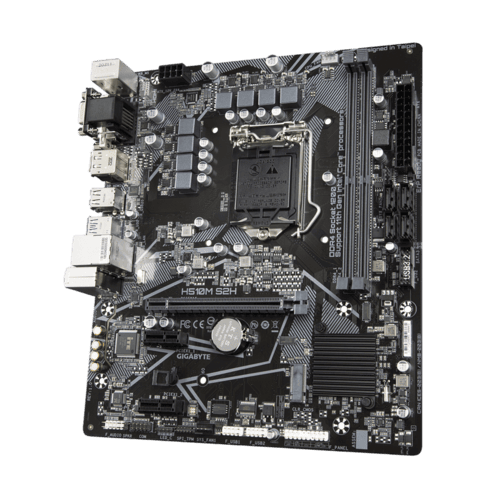

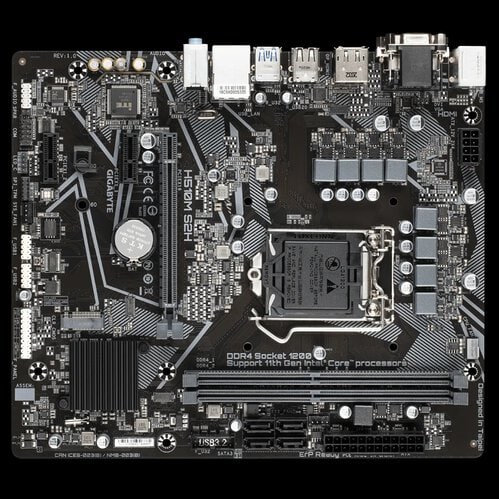

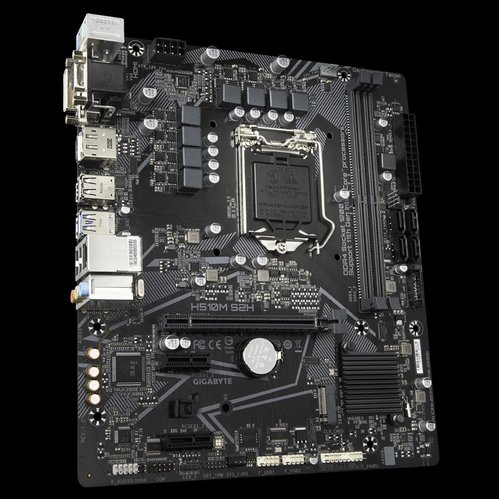

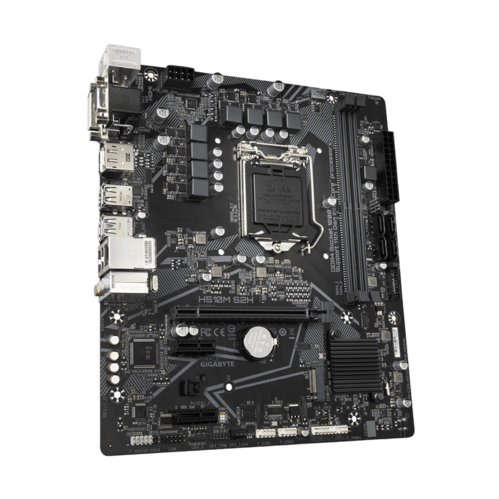

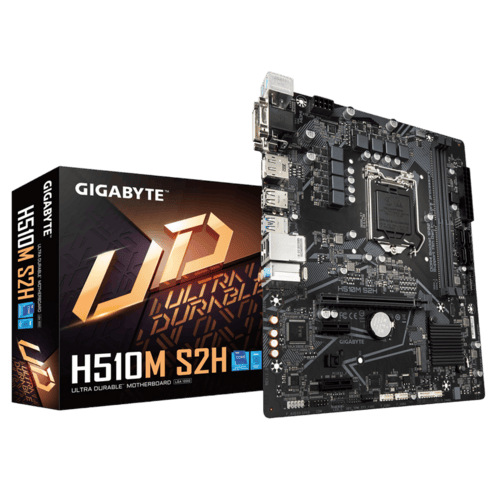

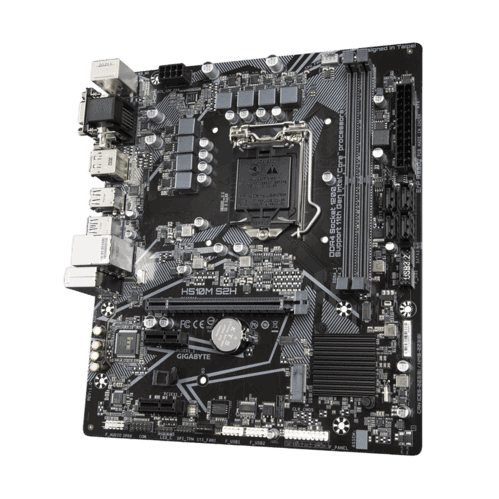

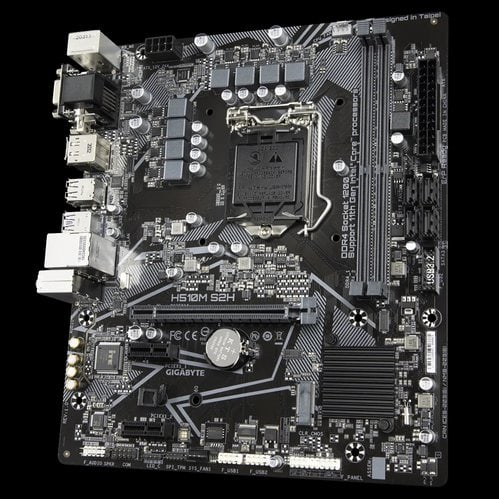

MB S1200 Gigabyte H510M S2H 1.0 mATX
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
// CPU - 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors - 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* Chipset Intel® H510 Memory 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port*, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz 1 x DisplayPort*, supporting a maximum resolution of 4096x2304@60 Hz Support for up to 2 displays at the same time Audio Realtek® Audio CODEC LAN Realtek® GbE LAN chip (1000/100 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 2 x PCI Express x1 slots (The PCIEX1 slot conforms to PCI Express 3.0 standard.) Storage Interface 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors USB 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB header) https://www.gigabyte.com/Motherboard/H510M-S2H-rev-10#kf
Addressable LED Header
Audio Jacks
HD Audio Jacks: Line in / Front Speaker / Microphone
Bluetooth Compliance
--
Brand
Gigabyte
COM Port
false
COM Port Header
Dimensions
24.4 x 21.0 cm
DisplayPort
--
DVI
1x DVI-I
Ethernet (LAN) controller #1
Gigabit Ethernet (Realtek RTL8118)
Ethernet (LAN) controller #2
--
HDMI
1x HDMI 1.4
LPT Port Header
M.2 Expansion Slots
1
Max. Memory Speed (OC) {Mhz}
3200
Memory Speed
2133 MHz
Motherboard Form-Factor
Micro-ATX
PC Component Type
Mainboard
PCI Slots
PCI-Express x1 Slots
2
PCI-Express x16 Slots
1
PCI-Express x4 Slots
PCIe 4.0 Support
true
RGB LED Headers
1
SATA Ports
4x SATA 6Gb/s
Slot support M2 #1
M2: SATA3 & PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #2
--
Slot support M2 #3
--
Slot support M2 #4
--
SPDIF Out
--
Thunderbolt
--
Total RAM Maximum Size
64GB
USB 2.0 Headers
2x USB 2.0 (Support 4 USB Ports)
USB 2.0 Type-A
4x
USB 3.x Headers
1 x USB 3.2 Gen1 (Supports 2 USB 3.2 Gen1 ports)
USB 3.x Type-A
2x USB 3.2
USB Type-C
--
Wi-Fi Controller
--
