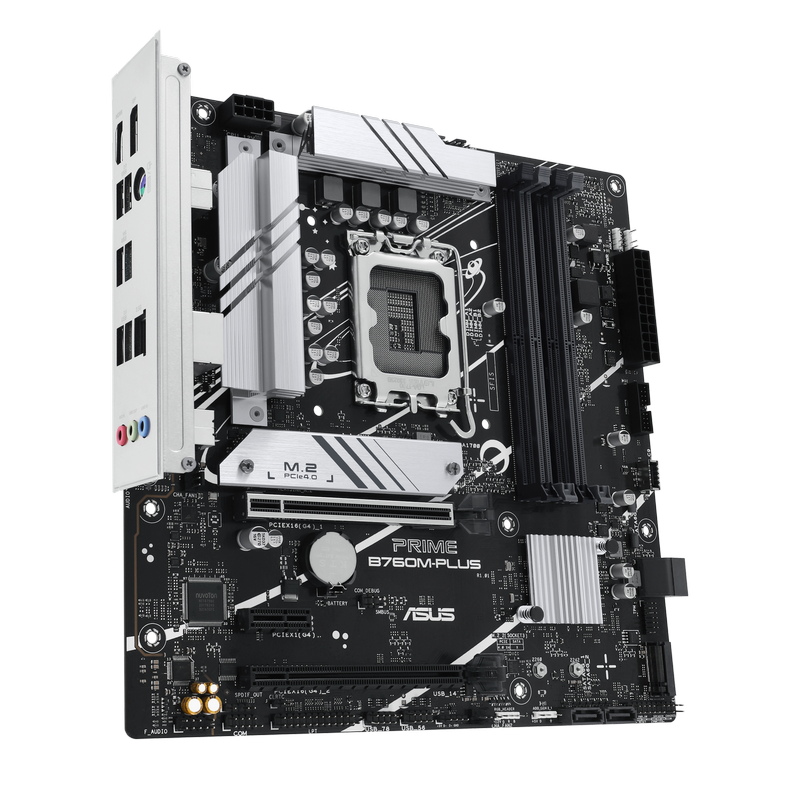

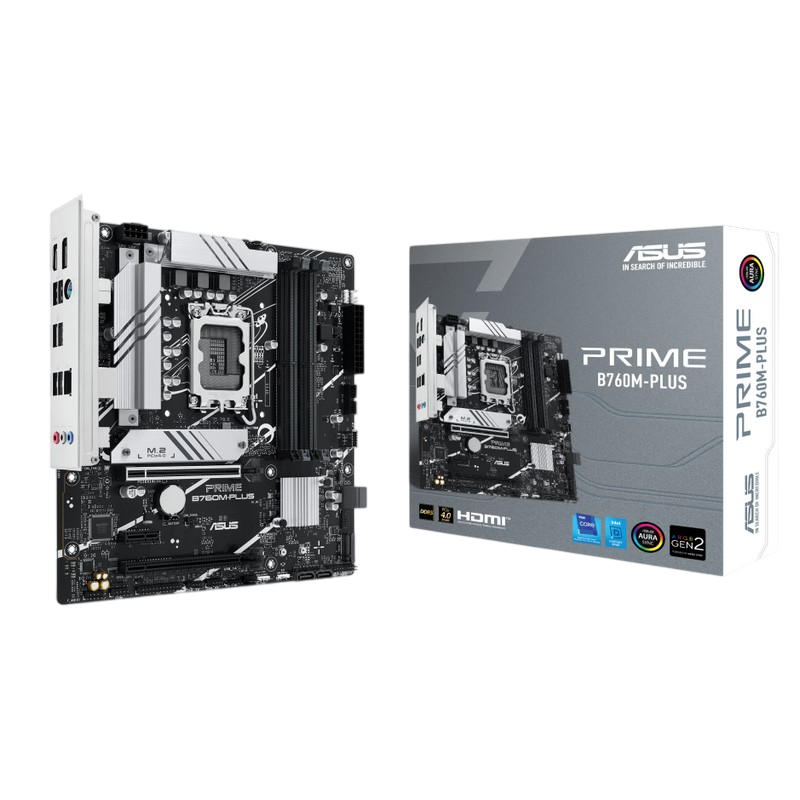

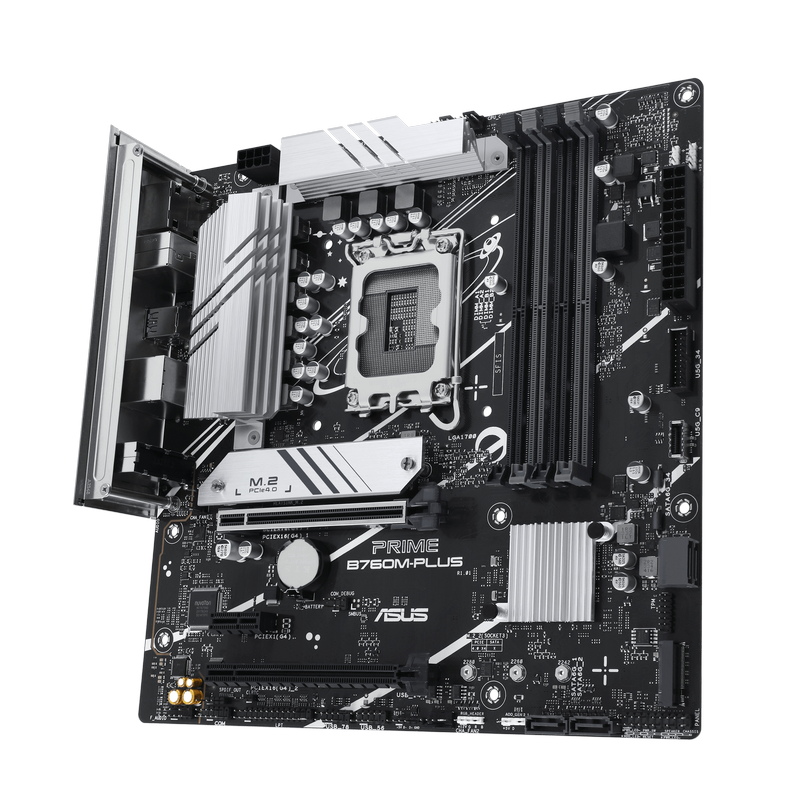

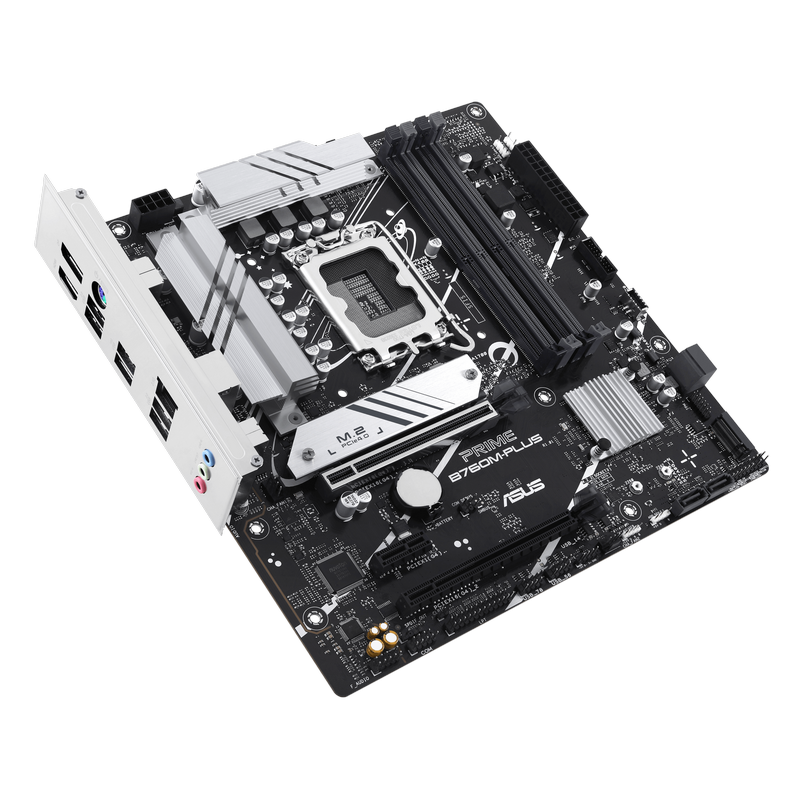

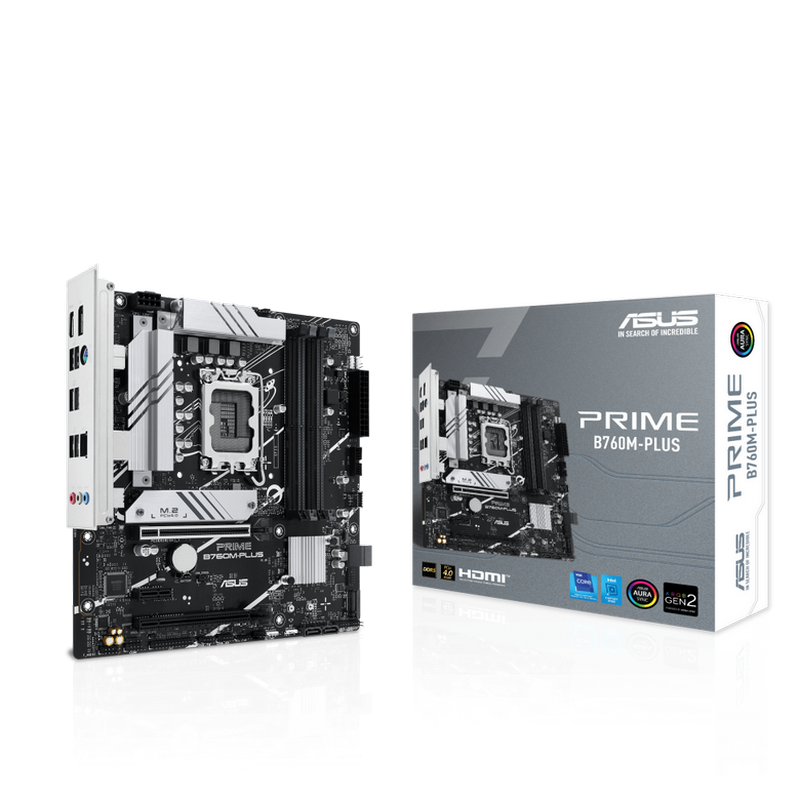

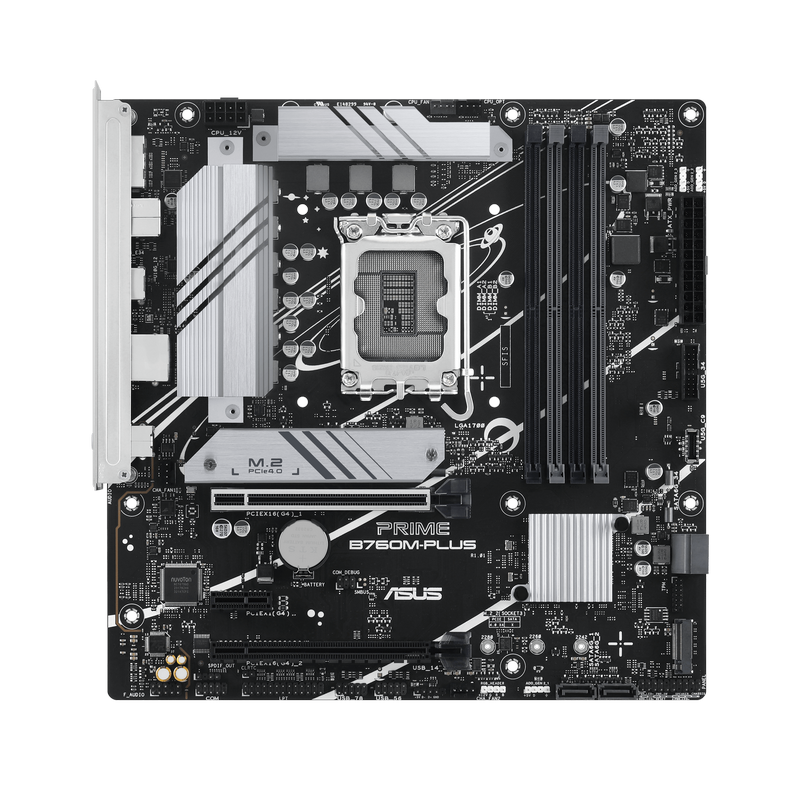

MB S1700 Asus PRIME B760M-PLUS mATX
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Factor de formă a plăcii de baza: Micro-ATX Socket: LGA1700 Chipset: Intel B760 Tip Memorie: DDR5 SDRAM Capacitate max. Totală RAM: 192GB Sloturi memorie: 4x DIMM Frecvență memorie: 7200 MHz
Addressable LED Header
3
Audio Chipset
7.1 Surround Sound High Definition Audio
Audio Jacks
3x audio jacks
Brand
ASUS
COM Port
false
COM Port Header
1
CPU Support
Intel Core Gen 12th/13th/14th & Celeron/Pentium
Dimensions
24.4 x 24.4 cm
DisplayPort
1 x
Ethernet (LAN) controller #1
2.5 Gigabit Realtek Ethernet
HDMI
1 x
LPT Port Header
1
M.2 Expansion Slots
2
Max. Memory Speed (OC) {Mhz}
5600
Memory Slots QTY
4x DIMM
Memory Speed
7200 MHz
Memory Type
DDR5 SDRAM
Motherboard Form-Factor
Micro-ATX
PC Component Type
Mainboard
PCI-Express x1 Slots
1
PCI-Express x16 Slots
2
PCIe 4.0 Support
true
PS/2
1x
RAID
RAID 0, RAID 1, RAID 5, RAID 10
SATA Ports
4x SATA 6Gb/s
Slot support M2 #1
M2: type 2242/2260/2280 (PCIe Gen4 x4)
Slot support M2 #2
M2: type 2242/2260/2280 (PCIe Gen4 x4)
Socket
LGA1700
Total RAM Maximum Size
192GB
USB 2.0 Headers
3x USB 2.0
USB 2.0 Type-A
4x
USB 3.x Headers
1x
USB 3.x Type-A
2x
