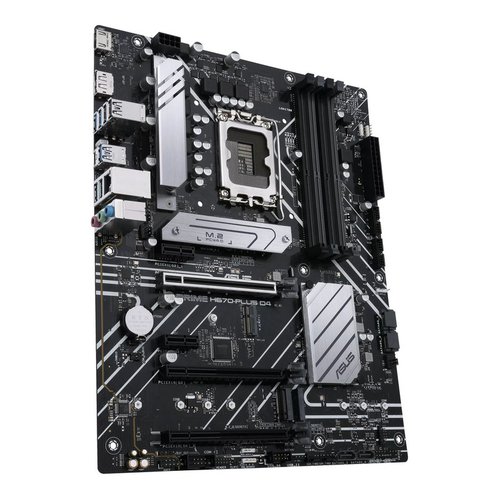

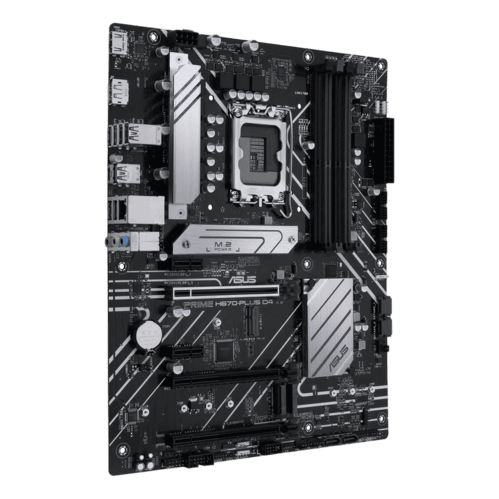

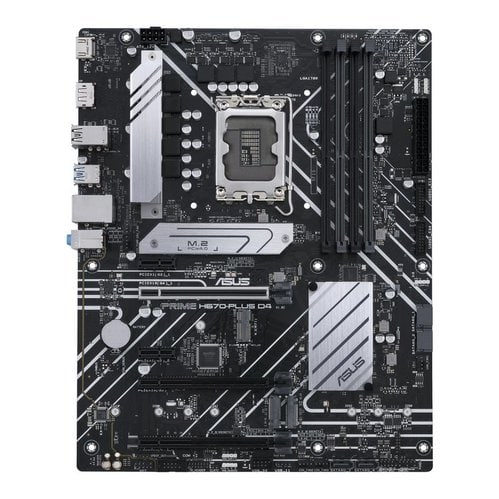

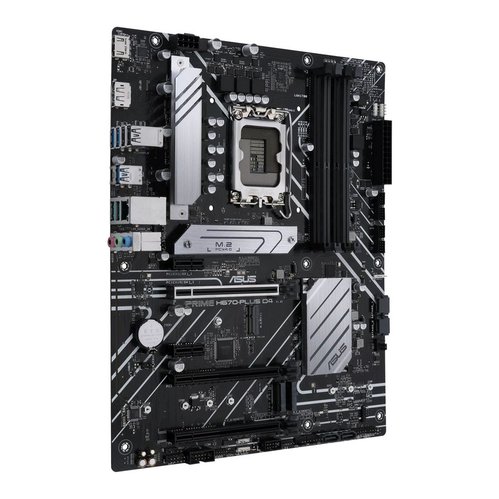

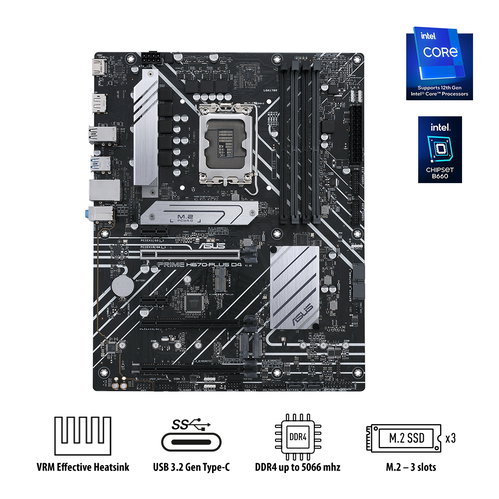

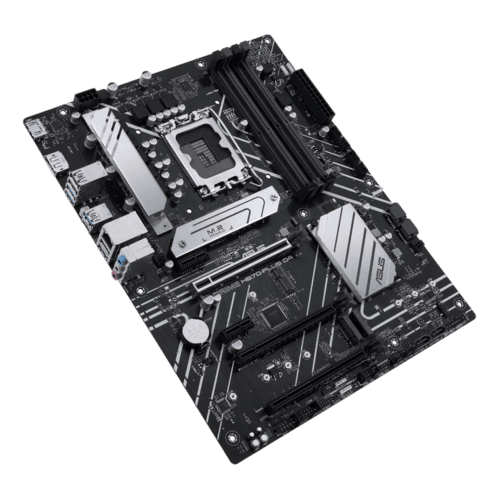

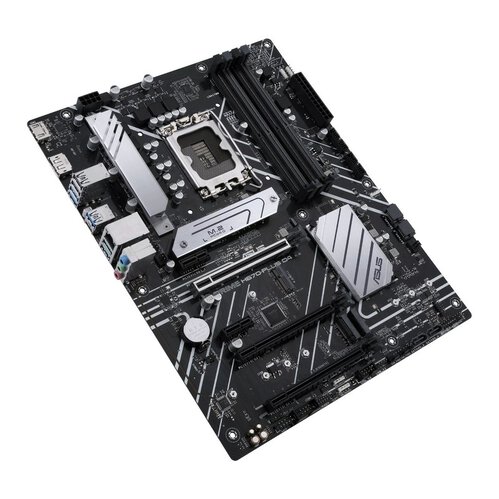

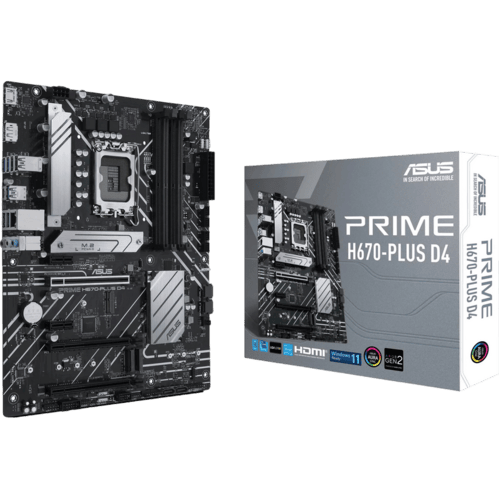

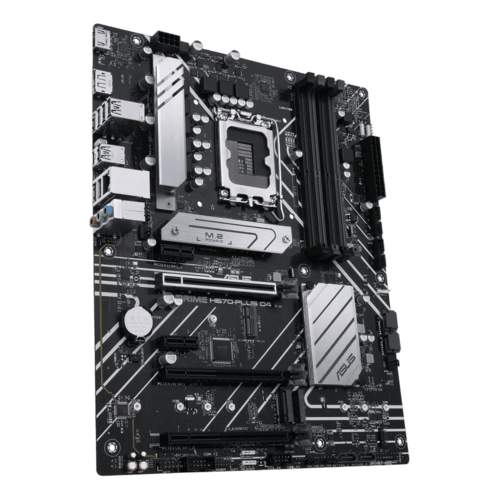

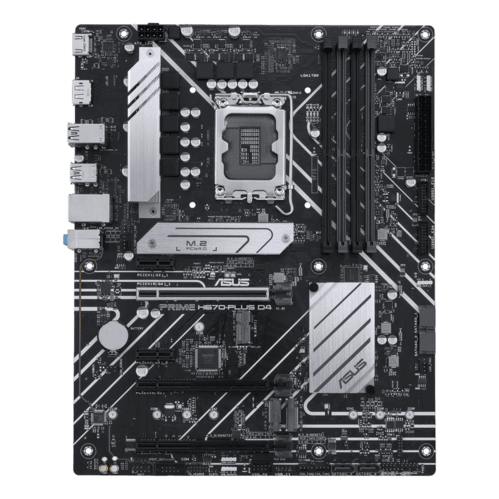

Материнская плата MB S1700 Asus PRIME H670-PLUS D4 ATX
138394
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
// CPU
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset
- Intel® H670
Memory
4 x DIMM, Max. 128GB, DDR4
5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memory*"
Dual Channel Memory Architecture
Graphic
Integrated Graphics Processor
1 x DisplayPort**
1 x HDMI® port***
Expansion Slots
1 x PCIe 4.0 x16 slot
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Storage
M.2_1 slot (Key M), type 2242/2260/2280 (support PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
LAN
1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth
M.2 slot only (Key E, CNVi & PCIe)*
*Wi-Fi module is sold separately.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*

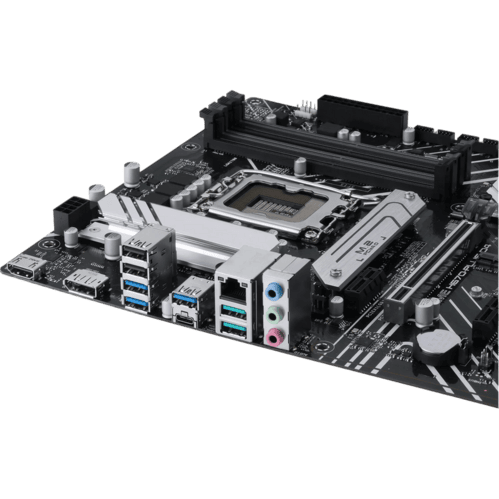

USB Ports

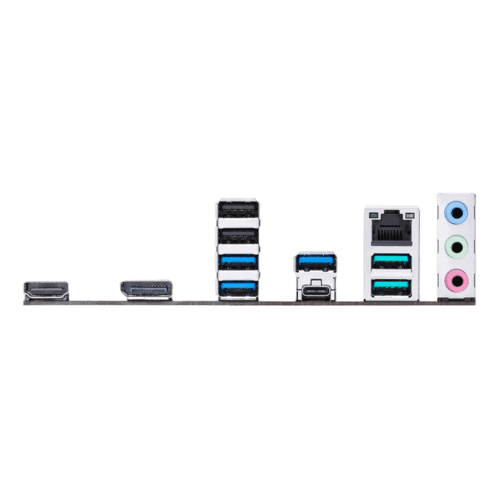

Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
1 x USB 2.0 header supports additional 1 USB 2.0 port
https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-H670-PLUS-D4/
Addressable LED Header
3
Brand
ASUS
COM Port
false
COM Port Header
1
Ethernet (LAN) controller #1
1 Gigabit Realtek Ethernet
Max. Memory Speed (OC) {Mhz}
6666
PCIe 4.0 Support
false
RAID
RAID 0, RAID 1, RAID 5, RAID 10
RGB LED Headers
2
Slot support M2 #1
M2: SATA3 & PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #2
M2: PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #3
M2:SATA3 or PCIe Gen4 x4 (64 Gb/s)
USB 2.0 Headers
3x USB 2.0 (Support 6 USB Ports)
USB 3.x Headers
1x USB 3.2 Gen 1 (Supports USB Type-C) + 1x USB 3.2 Gen1 (Support 2 USB 3.2 Gen 1 ports)
