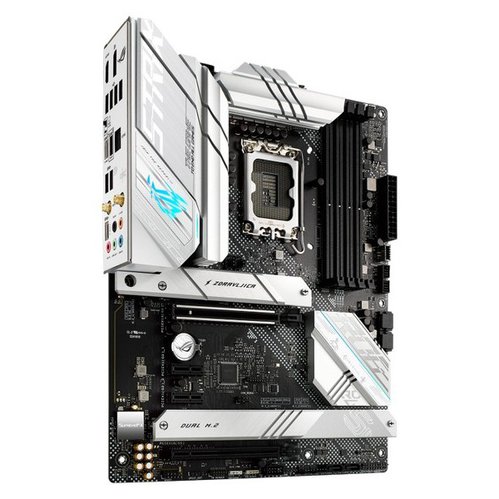

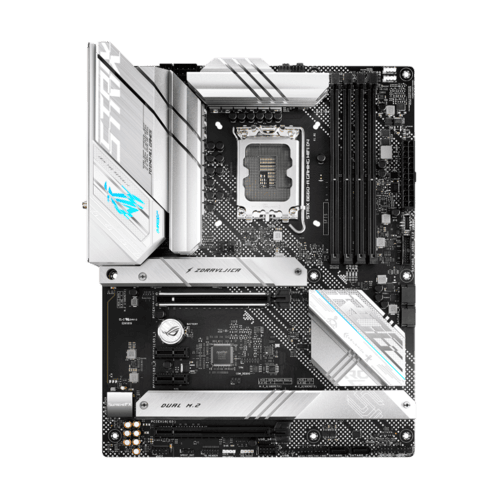

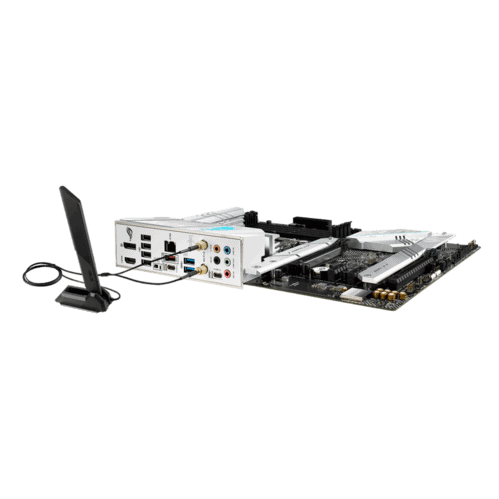

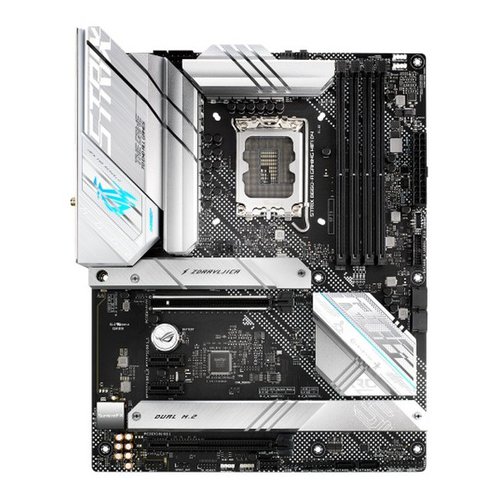

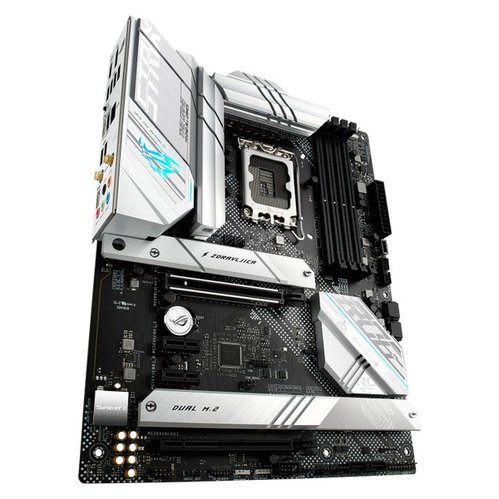

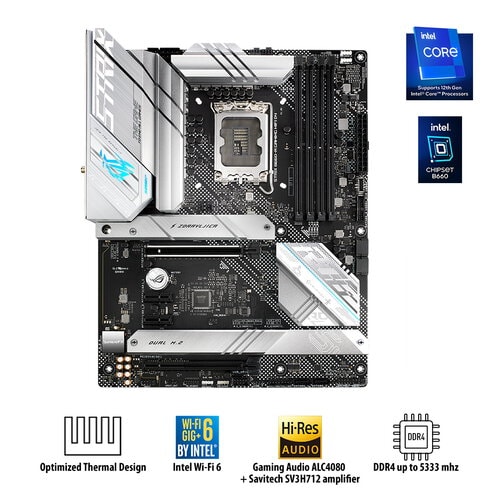

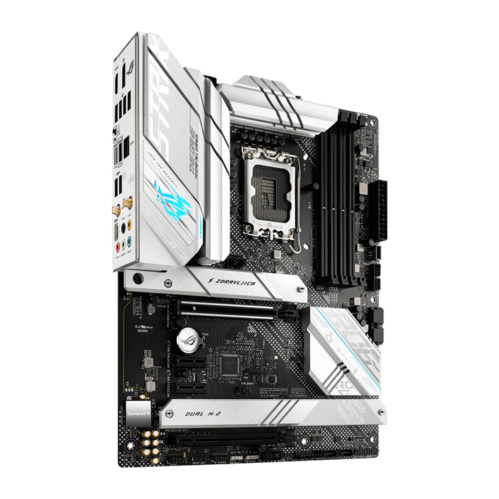

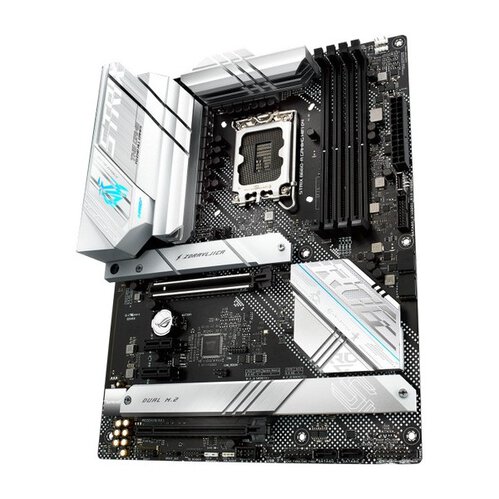

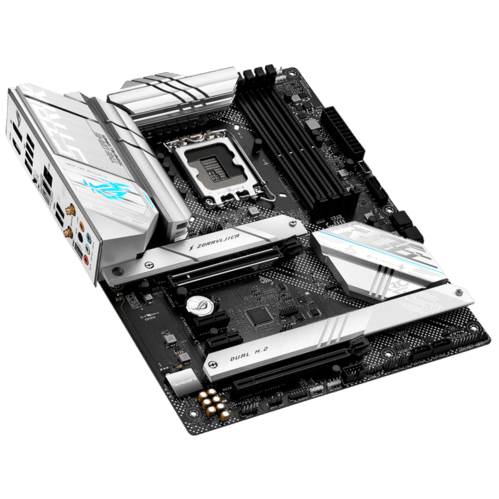

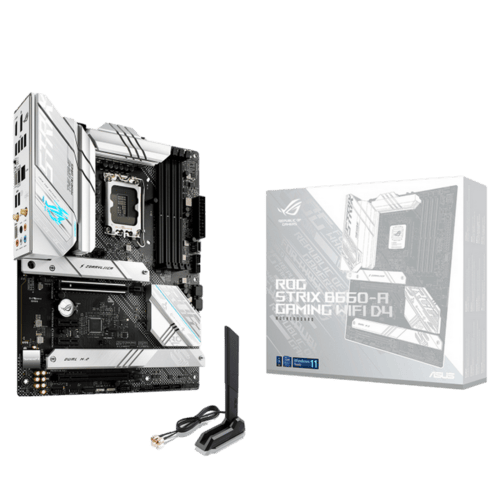

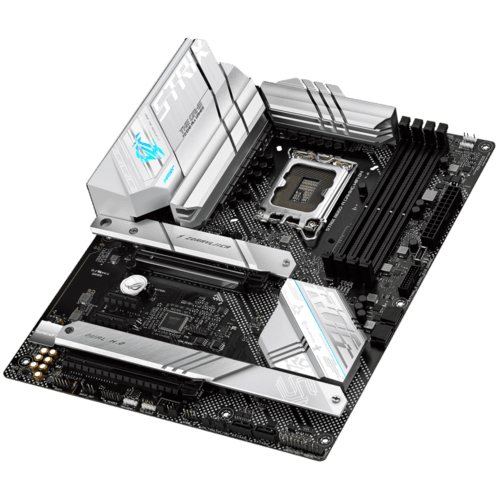

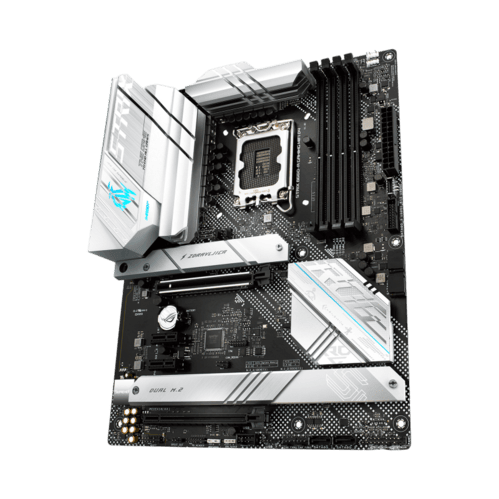

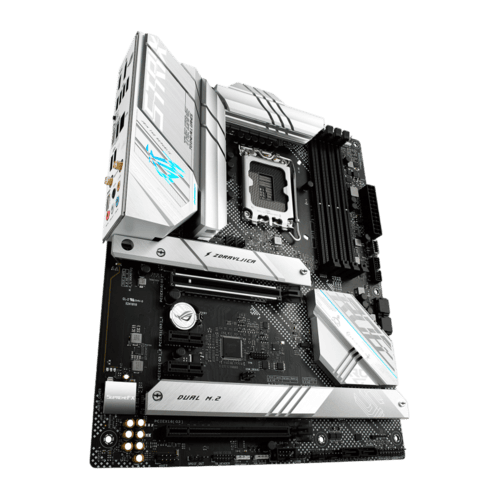

Материнская плата MB S1700 Asus ROG STRIX B660-A GAMING WIFI D4 ATX
138398
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
// CPU
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset
- Intel® B660
Memory
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3300(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Graphic
Integrated Graphics Processor
1 x DisplayPort**
1 x HDMI®***
Expansion Slots
1 x PCIe 5.0/4.0/3.0 x16 slot*
1 x PCIe 3.0 x16 slot (supports x4 mode)*
2 x PCIe 3.0 x1 slots
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports***
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
LAN
1 x Intel® 2.5Gb Ethernet
Wireless & Bluetooth
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
USB Ports
Rear USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C®)
4 x USB 2.0 port(s) (4 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 10-1 pin header + 1 USB 2.0 4 pin hearer support additional 3 USB 2.0 ports
https://rog.asus.com/motherboards/rog-strix/rog-strix-b660-a-gaming-wifi-d4-model/
Addressable LED Header
3
Brand
ASUS
COM Port
false
Ethernet (LAN) controller #1
1 Gigabit Realtek Ethernet
Max. Memory Speed (OC) {Mhz}
9066
PCIe 4.0 Support
false
RAID
RAID 0, RAID 1, RAID 5, RAID 10
RGB LED Headers
1
Slot support M2 #1
M2: SATA3 & PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #2
M2: PCIe Gen4 x4 (64 Gb/s)
USB 2.0 Headers
2x USB 2.0
USB 3.x Headers
1x USB 3.2 Gen2 Type-C + 2x USB 3.2 Gen1 (Support 4 USB 3.2 Gen1 ports)
