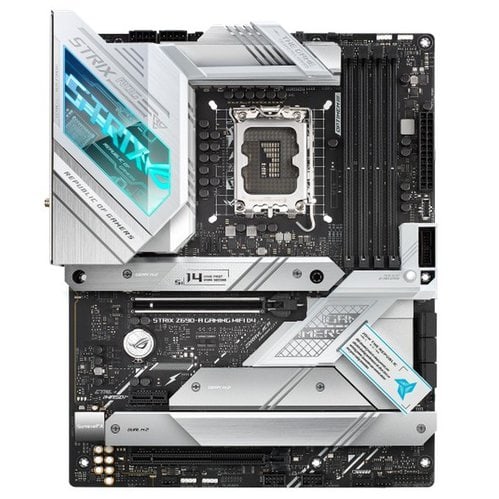

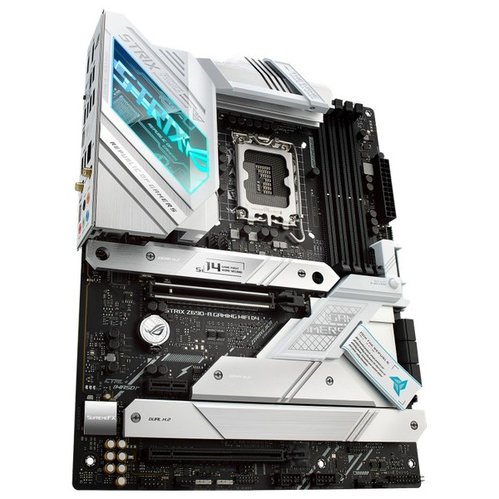

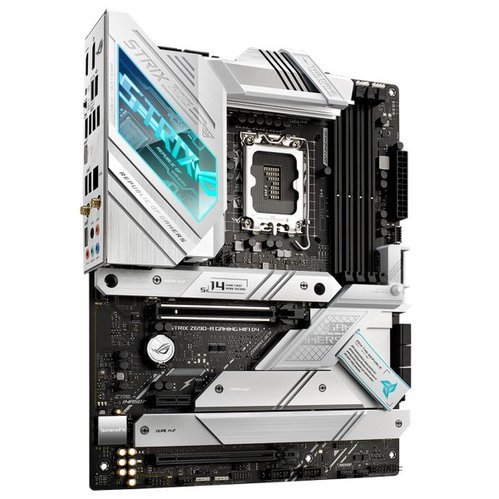

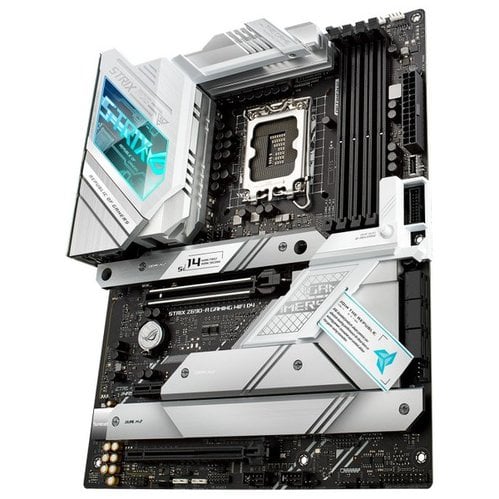

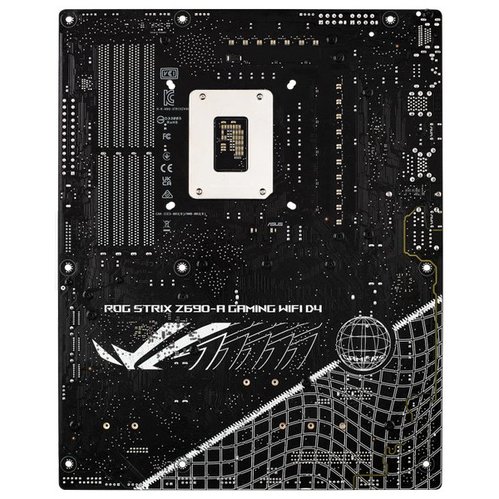

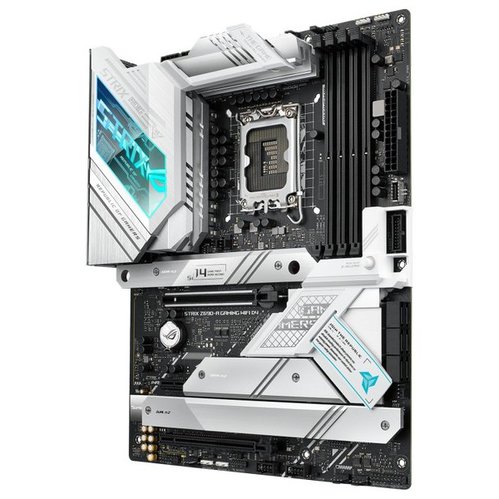

MB S1700 Asus ROG STRIX Z690-A GAMING WIFI D4 ATX
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
// CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Chipset - Intel® Z690 Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3300(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Graphic Integrated Graphics Processor 1 x DisplayPort** 1 x HDMI®*** Expansion Slots 1 x PCIe 5.0/4.0/3.0 x16 slot* 1 x PCIe 3.0 x16 slot (supports x4 mode)* 1 x PCIe 3.0 x1 slot Storage M.2_1 slot (Key M), type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)** 6 x SATA 6Gb/s ports*** * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. LAN 1 x Intel® 2.5Gb Ethernet Wireless & Bluetooth I2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 USB Ports Rear USB:Total 10 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 7 ports 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports https://rog.asus.com/motherboards/rog-strix/rog-strix-z690-a-gaming-wifi-d4-model/
Addressable LED Header
3
Audio Jacks
5x audio jacks
Bluetooth Compliance
5.2
Brand
ASUS
COM Port
false
Dimensions
30,5 cm x 24,4 cm
DisplayPort
1x DP 1.4
Ethernet (LAN) controller #1
2.5 Gigabit Ethernet Intel I225-V
HDMI
1x HDMI 2.1
Max. Memory Speed (OC) {Mhz}
5333
Memory Speed
5333 MHz
Motherboard Form-Factor
ATX
PC Component Type
Mainboard
PCI-Express x1 Slots
1
PCI-Express x16 Slots
2
PCIe 4.0 Support
false
RAID
RAID 0, RAID 1, RAID 5, RAID 10
RGB LED Headers
1
SATA Ports
6x SATA 6Gb/s
Slot support M2 #1
M2: PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #2
M2: PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #3
M2:SATA3 or PCIe Gen4 x4 (64 Gb/s)
SPDIF Out
1x Optical SPDIF Out Port
Total RAM Maximum Size
128GB
USB 2.0 Headers
2x USB 2.0 (Support 4 USB Ports)
USB 2.0 Type-A
2x
USB 3.x Headers
1 x USB 3.2 Gen1 (Supports 2 USB 3.2 Gen1 ports)
USB 3.x Type-A
6x USB 3.2
USB Type-C
2x
Wi-Fi Controller
Intel Wi-Fi 6
