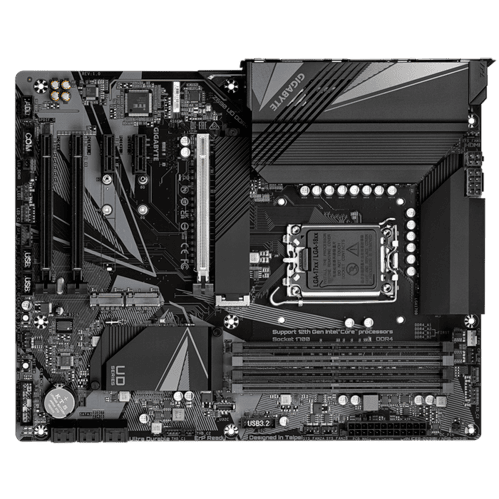

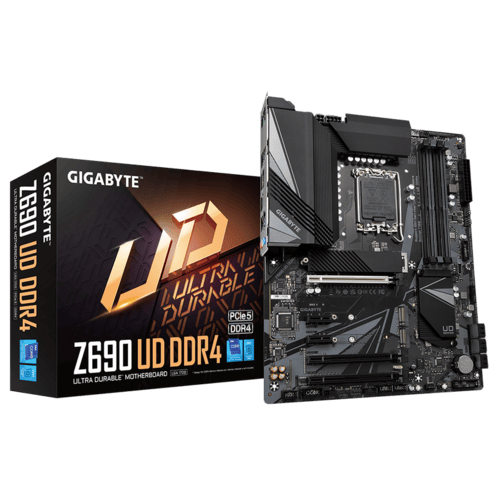

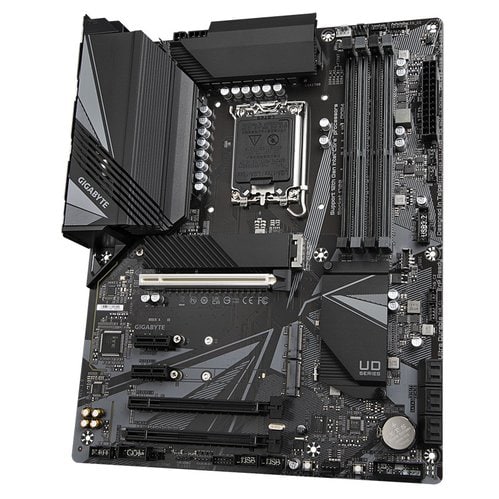

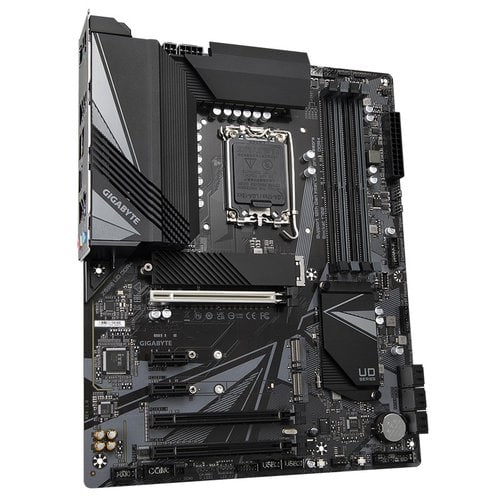

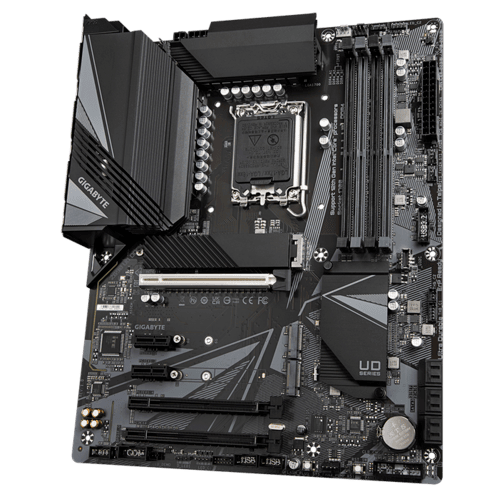

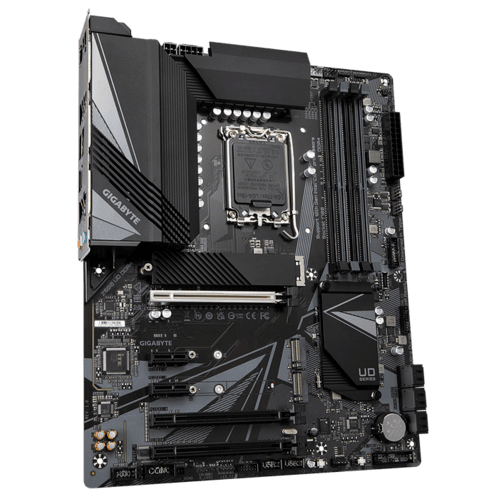

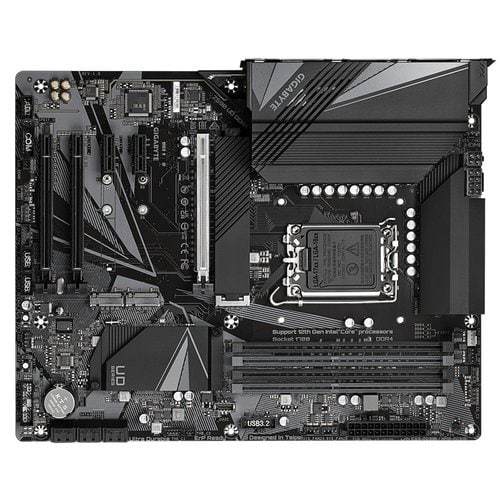

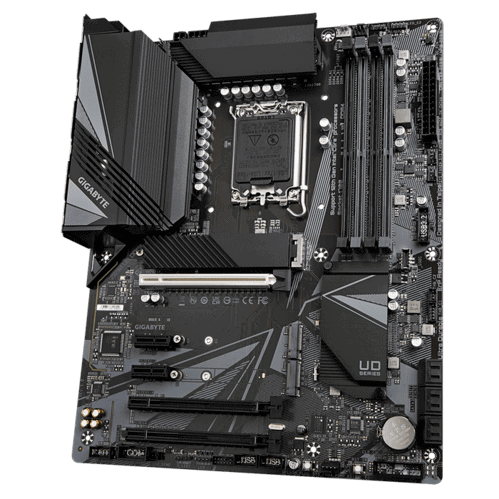

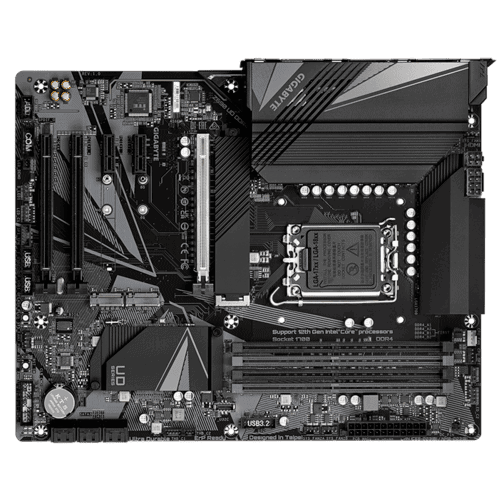

MB S1700 Gigabyte Z690 UD DDR4 1.0 ATX
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
// CPU LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors Chipset - Intel® Z690 Memory Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Audio Realtek® Audio codec LAN Realtek® 2.5GbE LAN chip ( 2.5 Gbit/ 1 Gbit/100 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x16 slot, running at x1 (PCIEX1_4) 2 x PCI Express x1 slots Storage Interface 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 USB 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) https://www.gigabyte.com/Motherboard/Z690-UD-DDR4-rev-10#kf
Addressable LED Header
2

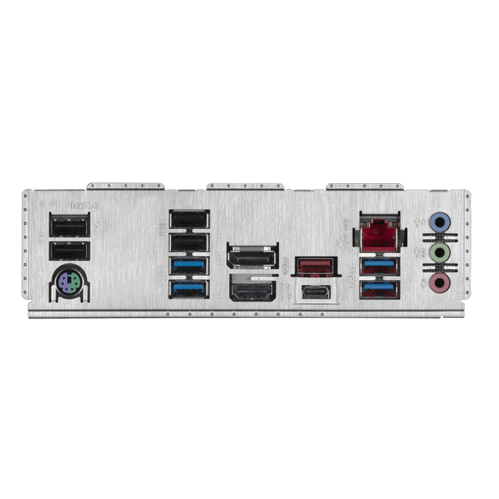

Audio Jacks
HD Audio Jacks: Line in / Line Out / Microphone
Brand
Gigabyte
COM Port
false
Dimensions
30,5 cm x 24,4 cm
DisplayPort
1x DP 1.2
HDMI
1x HDMI 2.1
Max. Memory Speed (OC) {Mhz}
5333
Memory Speed
5333 MHz
Motherboard Form-Factor
ATX
PC Component Type
Mainboard
PCI-Express x1 Slots
2
PCI-Express x16 Slots
3
PCIe 4.0 Support
false
RAID
RAID 0, RAID 1, RAID 5, RAID 10
RGB LED Headers
2
SATA Ports
6x SATA 6Gb/s
Slot support M2 #1
M2: PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #2
M2: PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #3
M2: PCIe Gen4 x4 (32 Gb/s)
SPDIF Out
1x Optical SPDIF Out Port
Total RAM Maximum Size
128GB
USB 2.0 Headers
2x USB 2.0 (Support 4 USB Ports)
USB 2.0 Type-A
4x
USB 3.x Headers
1 x USB 3.2 Gen1 (Supports 2 USB 3.2 Gen1 ports)
USB 3.x Type-A
5x USB 3.2
USB Type-C
1 x, USB 3.2
