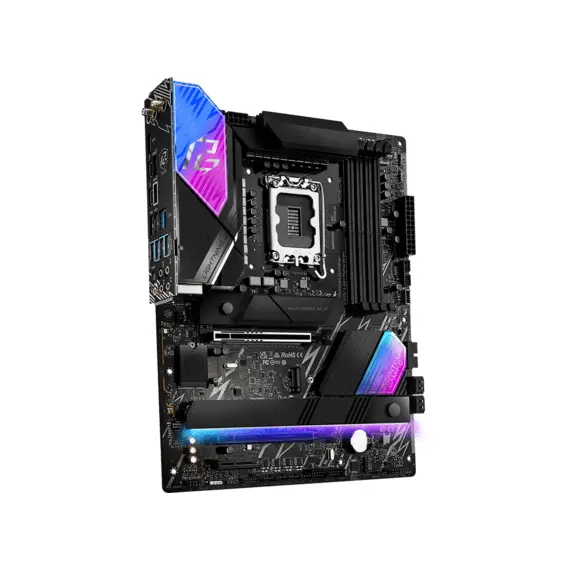

MB S1851 ASRock Z890 LIGHTNING WIFI ATX
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Addressable LED Header
3
Audio Jacks
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Bluetooth Compliance
5.4
Brand
ASRock
COM Port
false
COM Port Header
0
Dimensions
30.5 x 24.4 cm
Ethernet (LAN) controller #1
2.5 Gigabit Realtek Ethernet
Ethernet (LAN) controller #2
Killer E3100G
HDMI
1x HDMI 2.1
LPT Port Header
0
M.2 Expansion Slots
4
Max. Memory Speed (OC) {Mhz}
9466
Memory Speed
5600 MHz
Motherboard Form-Factor
ATX
PC Component Type
Mainboard
PCI Slots
3
PCI-Express x1 Slots
1
PCI-Express x16 Slots
1
PCI-Express x4 Slots
1
PCIe 4.0 Support
true
RAID
RAID 0, RAID 1, RAID 5, RAID 10
RGB LED Headers
1
SATA Ports
4x SATA 6Gb/s
Slot support M2 #1
M2: PCIe Gen5 x4 (128 Gb/s)
Slot support M2 #2
M2: PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #3
M2:SATA3 or PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #4
M2: PCIe Gen4 x4 (64 Gb/s)
SPDIF Out
1x Optical SPDIF Out Port
Thunderbolt
2x Thunderbolt 4
Total RAM Maximum Size
256GB
USB 2.0 Headers
2x USB 2.0 (Support 4 USB Ports)
USB 2.0 Type-A
2x
USB 3.x Headers
1x USB 3.2 Gen2x2 Type-C + 2x USB 3.2 Gen1 (Support 4 USB 3.2 Gen1 ports)
USB 3.x Type-A
6x USB 3.2
Wi-Fi Controller
802.11be 2x2 Wi-Fi 7 + BT 5.x
