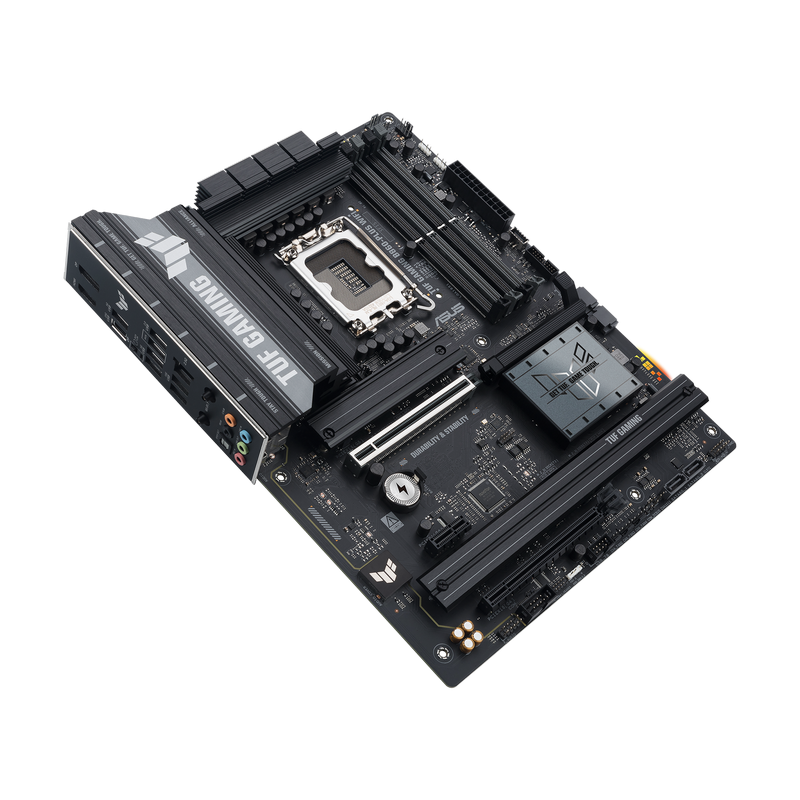

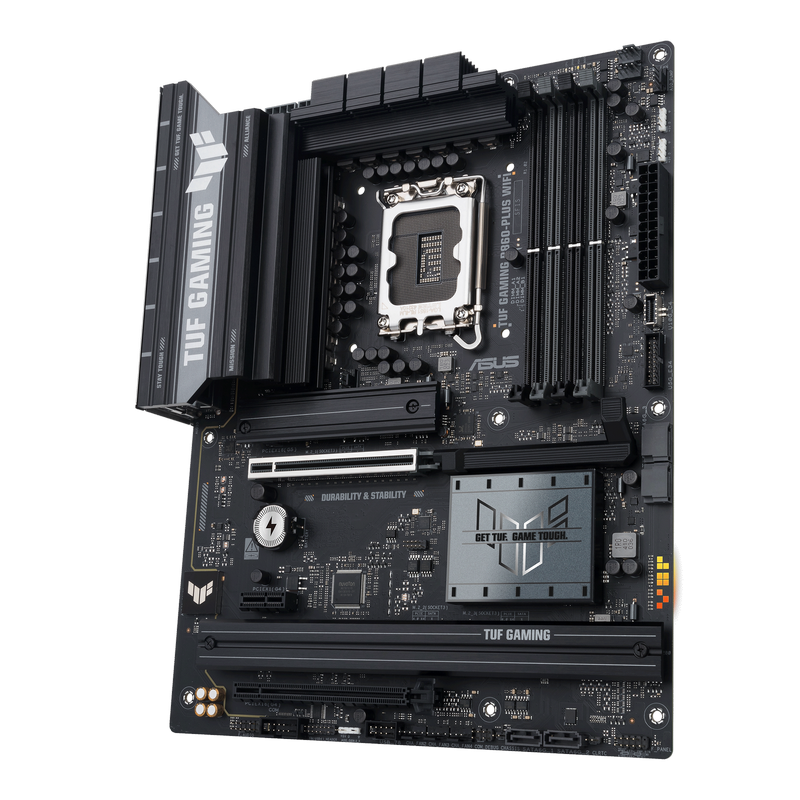

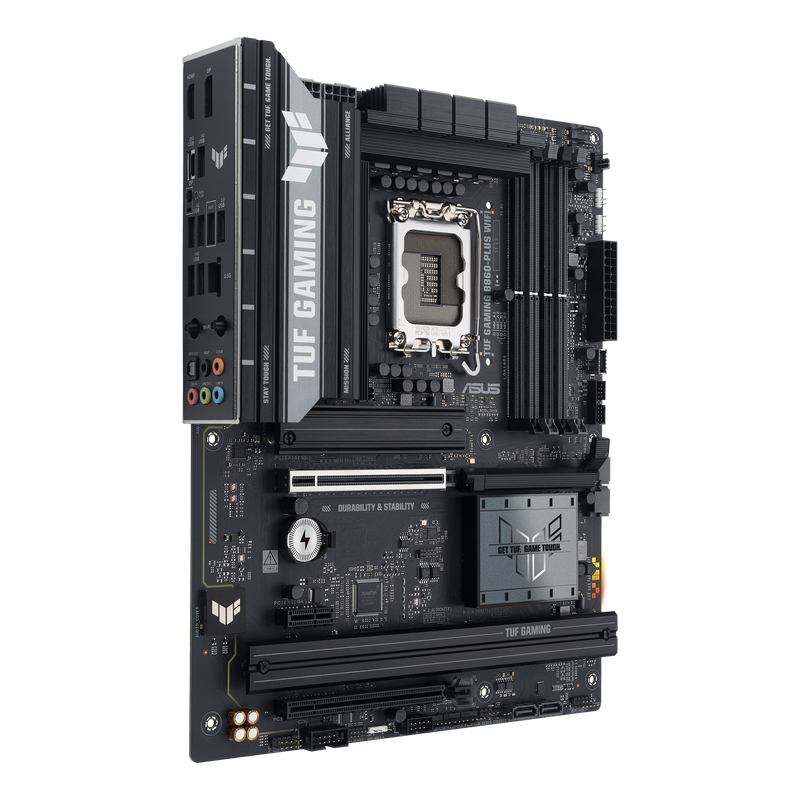

MB S1851 Asus TUF GAMING B860-PLUS WIFI ATX
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Factor de formă a plăcii de baza: ATX Socket: LGA1851 Chipset: Intel B860 Tip Memorie: DDR5 SDRAM Capacitate max. Totală RAM: 256GB Sloturi memorie: 4x DIMM
Addressable LED Header
3
Audio Jacks
5x audio jacks
Bluetooth Compliance
5.4
Brand
ASUS
COM Port
true
COM Port Header
1
CPU Support
Intel Core Ultra Processors (Series 2)
Dimensions
30.5 x 24.4 cm
DisplayPort
1x DP 1.4
Ethernet (LAN) controller #1
1 Gigabit Realtek Ethernet
HDMI
1x HDMI 2.1
M.2 Expansion Slots
3
Max. Memory Speed (OC) {Mhz}
8666
Memory Slots QTY
4x DIMM
Memory Type
DDR5 SDRAM
Motherboard Form-Factor
ATX
PC Component Type
Mainboard
PCI-Express x1 Slots
1
PCI-Express x16 Slots
2
PCIe 4.0 Support
true
RAID
RAID 0, RAID 1, RAID 5, RAID 10
SATA Ports
4x SATA 6Gb/s
Slot support M2 #1
M2: type 2280 (PCIe Gen5 x4)
Slot support M2 #2
M2: type 2280/22110 (PCIe Gen4 x4)
Slot support M2 #3
M2: type 2242/2260/2280 (PCIe Gen4 x4)
Socket
LGA1851
Thunderbolt
1x Thunderbolt 4 / USB4
Total RAM Maximum Size
256GB
USB 2.0 Headers
2x USB 2.0
USB 2.0 Type-A
2x
USB 3.x Headers
5x USB 3.2 Gen1 + 1x USB 3.2 Gen1 Type-C
USB 3.x Type-A
5x
USB Type-C
1 x
Wi-Fi Controller
2x2 Wi-Fi 7 (802.11be)
