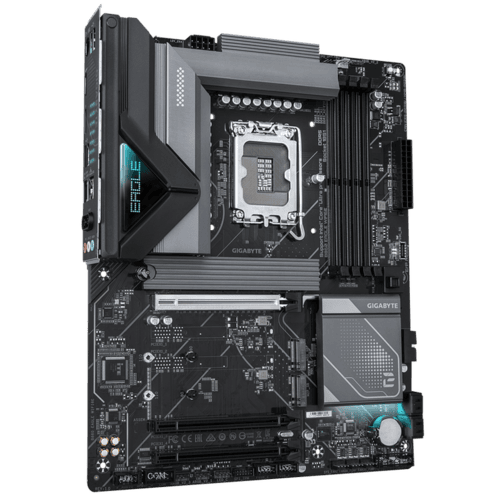

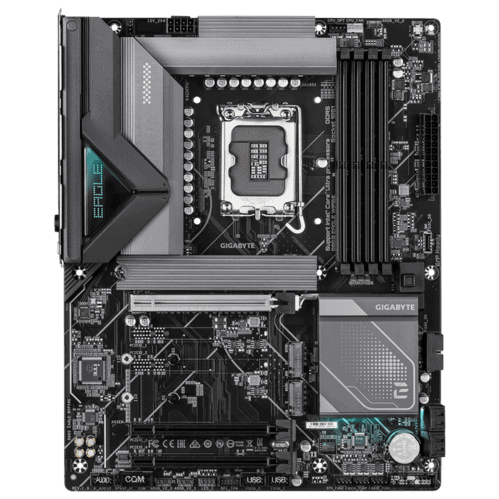

Материнская плата Gigabyte B860 EAGLE WIFI6E, LGA1851, Intel B860, ATX
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Описание
Форм-фактор материнской платы: ATX Сокет: LGA1851 Чипсет: Intel B860 Тип памяти: DDR5 SDRAM Общий макс. объём памяти: 256Гб Количество слотов памяти: 4x DIMM Частота памяти: 6400 МГц
Характеристики
Addressable LED Header
3
Audio Chipset
Realtek 7.1 Surround Sound High Definition
Audio Jacks
3x audio jacks
Bluetooth Compliance
5.3
Brand
Gigabyte
COM Port
false
COM Port Header
0
CPU Support
Intel Core Ultra Processors
Dimensions
30.5 x 24.4 cm
DisplayPort
1x DP 2.1
Ethernet (LAN) controller #1
2.5 Gigabit Realtek Ethernet
HDMI
1x HDMI 2.1
LPT Port Header
0
M.2 Expansion Slots
3
Max. Memory Speed (OC) {Mhz}
9066
Memory Slots QTY
4x DIMM
Memory Type
DDR5 SDRAM
Motherboard Form-Factor
ATX
PC Component Type
Mainboard
PCI Slots
0
PCI-Express x1 Slots
0
PCI-Express x16 Slots
3
PCI-Express x4 Slots
0
PCIe 4.0 Support
true
PS/2
1x
RAID
RAID 0, RAID 1, RAID 5, RAID 10
RGB LED Headers
1
SATA Ports
4x SATA 6Gb/s
Slot support M2 #1
M2: type 25110/22110/2580/2280 (PCIe Gen5 x4/x2)
Slot support M2 #2
M2: type 25110/22110/2580/2280 (PCIe Gen4 x4/x2)
Slot support M2 #3
M2: type 25110/22110/2580/2280 PCIe 4.0 x4/x2
Socket
LGA1851
Total RAM Maximum Size
256GB
USB 2.0 Headers
2x USB 2.0
USB 2.0 Type-A
4x
USB 3.x Headers
1x USB Type-C + 1x USB 3.2 Gen1
USB 3.x Type-A
1x USB 3.2
USB Type-C
1 x
Wi-Fi Controller
Wi-Fi 6E
