Power Supply ATX 1000W NZXT C1000, 80+ Gold, 135 mm fan, Active PFC, ATX 3.1, 12V-2x6, Zero Fan Mode

.

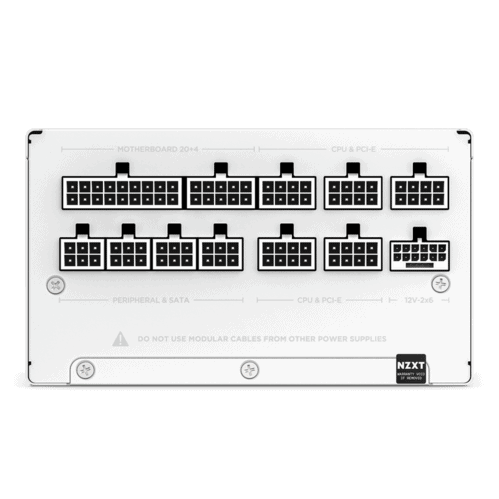

Output Connectors
24-pin ATX Power Cable 1
4+4-pin CPU Power Cable 1
8-pin CPU Power Cable 1
6+2-pin PCIe Power Cable 3
16-pin (12+4) 12V-2x6 PCIe Cable 1
SATA Cable 12
Peripherals Cable 4
Cable Specs
24-pin ATX Power Cable 600mm with nylon sleeving
4+4-pin CPU Power Cable 700mm with nylon sleeving
8-pin CPU Power Cable 700mm with nylon sleeving
6+2-pin PCIe Power Cable 650mm with nylon sleeving
16-pin (12+4) 12V-2x6 PCIe Cable 650mm with nylon sleeving
SATA Cable 500 + 150mm
Peripherals Cable 500 + 150mm
AC Input Rating
100 - 240Vac 13A 50Hz-60Hz
200 - 240Vac 6.5A 50Hz-60Hz (China & South Korea)
DC Output Rating
3.3V / +5V 22A (120W)
12V 83.3A (1000W)
5Vsb 3A (15W)
Total 1000W
Energy Efficiency
Rating 80 Plus Gold
10% loading 85.5% @115Vac
20% loading 89.7% @115Vac
50% loading 91.9% @115Vac
100% loading 89.3% @115Vac
Electrical Features
PF Correction Active @0.99
Protections OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) /
Fan Specs
Dimensions 135 x 135 x 25 mm
Speed 2300 ± 10% RPM
Airflow 93.02 CFM (Min.)
Noise 44.5 dBA max
Bearing Fluid Dynamic Bearing (FDB)
Operation
MTBF 100,000 hours
Temperature 0 - 50 °C
Dimensions
Width 150 mm
Height 86 mm
Depth 160 mm
General
Material(s) Steel, PCB and Plastic
Compliance Standard ATX12V v3.1 / EPS12V v2.92
Regulation & Certification FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65
Model Number (Black) PA-0G2BB-EU
Model Number (White) PA-0G2BW-EU
