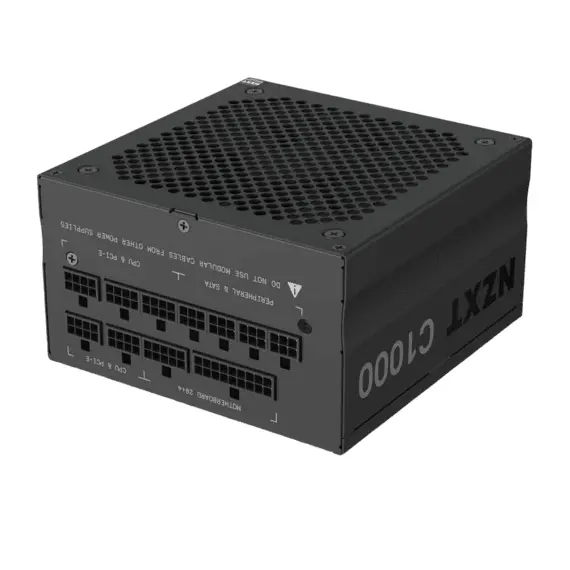

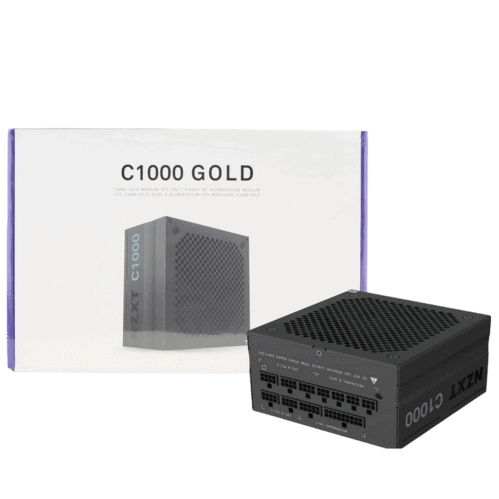

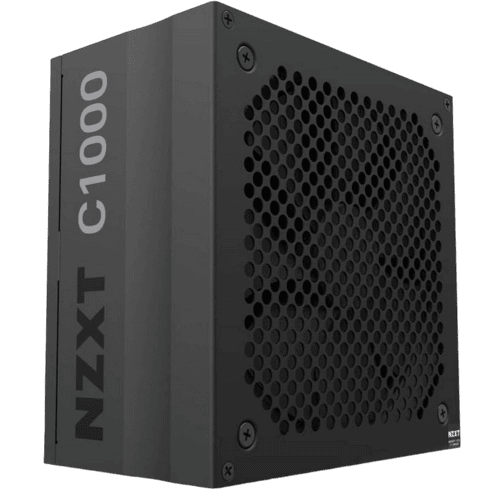

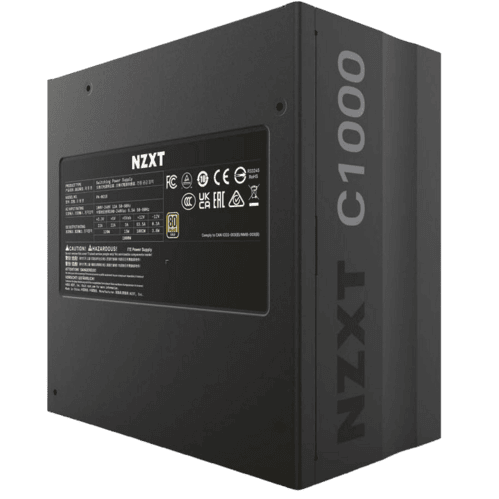

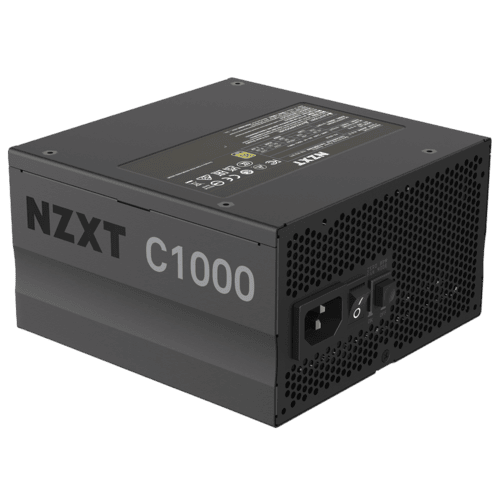

Power Supply ATX 1000W NZXT C1000, 80+ Gold, 135 mm fan, Zero RPM Fan mode, Full Modular
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

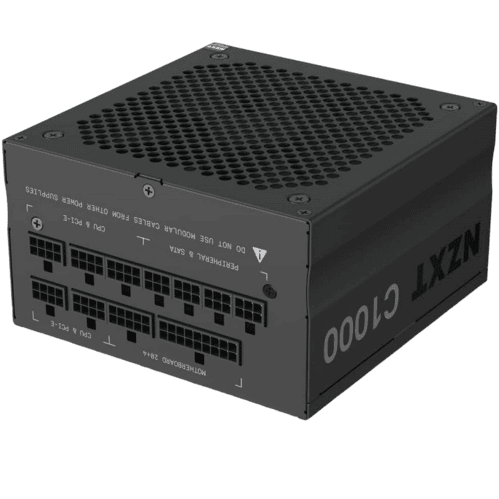

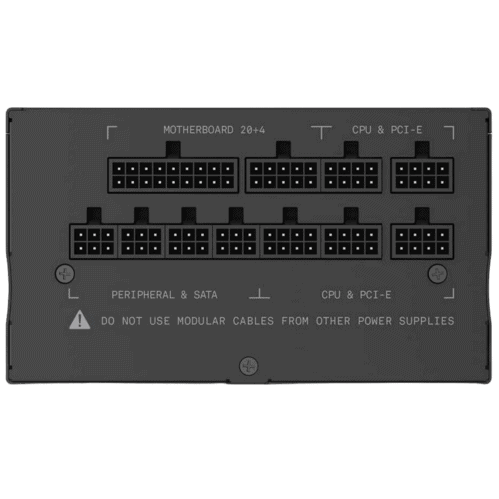

. OUTPUT CONNECTORS 24-pin ATX power 1 4+4-pin CPU power 2 6+2-pin PCIe power 6 SATA power 6 Peripherals 6 CABLE SPECS 24-pin ATX power 600 mm, Nylon sleeving 4+4-pin CPU power 700 mm, Nylon sleeving 6+2-pin PCIe power 650 + 150 mm, Nylon sleeving SATA power 500 + 150 mm Peripherals 500 + 150 mm AC INPUT RATING 100 - 240Vac 13A-6.5A 50Hz-60Hz DC OUTPUT RATING +3.3V and +5V 22A (120W) +12V 83.5A (1002W) -12V 0.3A (3.6W) 5Vsb 3A (15W) Total 1000W OPERATION PF Correction Active @0.96 MTBF 100,000 hours Temperature 0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C) ENERGY EFFICIENCY Rating 80 Plus Gold 20% loading 87% @115Vac 50% loading 90.5% @115Vac 100% loading 87.5% @115Vac FAN SPECS Dimensions 135 x 135 x 25 mm Speed 0-2300 ± 10% RPM Airflow 93.02 CFM (Tpy.) Noise 44.5 dBA max Bearing Fluid Dynamic Bearing (FDB) GENERAL Dimensions 150 x 150 x 86mm Material(s) Steel, PCB and Plastic Compliance Standard ATX12V v2.52 / EPS12V v2.92 Regulation & Certification cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA Model Number PA-0G1BB
8-pin (4+4) ATX/ESP 12V
2
8-pin (6+2) PCI-E
6
Application (Usage)
PC
ATX Version
ATX 12V 2.52 / EPS 12V 2.92
Brand
NZXT
Colour Category | Цветовая Категория
Black | Чёрный
DC to DC converter
false
Dimensions, Height {mm}
86
Dimensions, Length {mm}
150
Dimensions, Width {mm}
150
Fan Size
135 mm
Flat Cables
false
Full Bridge
false
Input Voltage Range
100~240 VAC
LCC
false
Lighting Effects / LED Type
No effects
Max. Fan Speed {rpm}
2300
MOLEX
6
Noise Level {dBA}
44.5
PC Component Type
PC Power Supply
PF Correction
Active PFC
SATA power
6

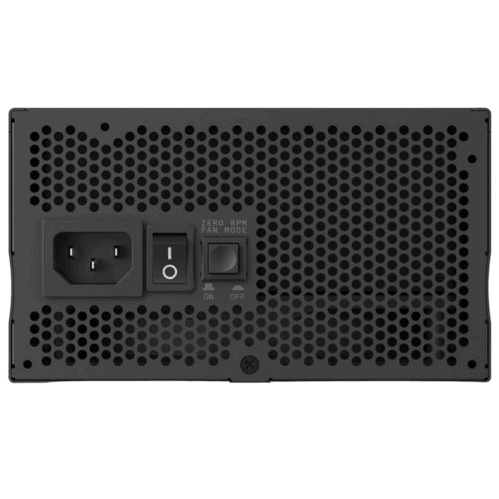

Zero-RPM Mode
true
