Power Supply ATX 1050W Chieftec POLARIS PPS-1050FC 80+ Gold, 140mm, HB LLC, DC/DC, Full Modular
132044
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
.
TECHNICAL DATA
Model POLARIS 1050W
Article no. PPS-1050FC
EAN code 753263077363
Weight (without/with package) 2.6kg / 3.4kg
AC Input 100-240V / 15A
Frequency 50 - 60Hz
+5V 22A
+3,3V 22A
+5V & +3,3V combined 120W
+12V1 87.5A
+12V2 -
+12V1, +12V2 combined 1050W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 3.0A / 15W
Maximum Power 1050W

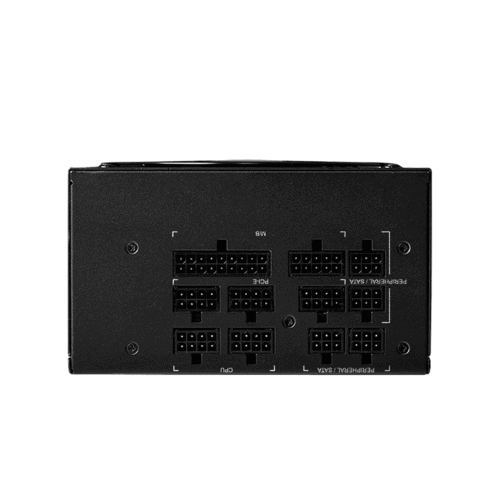

Connectors
20+4 PIN ATX 1
8 PIN EPS (4+4) 2
8 PIN PCIe (6+2) 6
SATA 12
MOLEX 4
Cable length (mm)
20+4 PIN ATX 650
8 PIN EPS (4+4) 2 x 650
8 PIN PCIe (6+2) 3 x 600/100
SATA 3 x 550/100/100/100
MOLEX/FLOPPY 550/100/100/100
Features
ATX12V Version ATX 12V 2.3
Efficiency 80+Gold
Dimension (DxWxH) 160 mm x 150 mm x 86 mm
PFC Active PFC

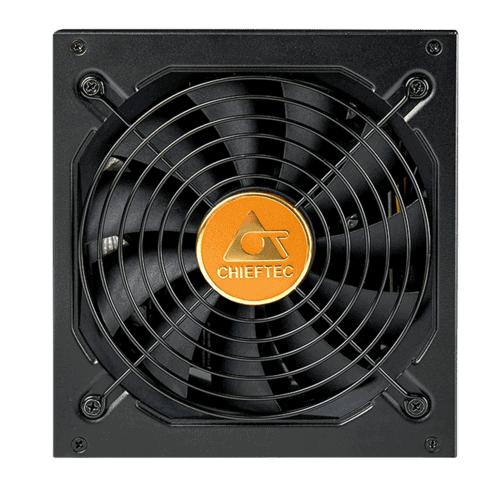

Fan 140mm FDB fan
Security AFC (Automatic Fan speed Control)
OCP (Over Current Protection)
OPP (Over Power Protection)
OTP (Over Temperature Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
https://www.chieftec.eu/products-detail/498/POLARIS_SERIES/500/PPS-1050FC
6-pin PCI-E
--
8-pin (4+4) ATX/ESP 12V
2
8-pin (6+2) PCI-E
6
Application (Usage)
PC
ATX Version
ATX 12V 2.3
Brand
Chieftec
Circuit Protection
AFC, OCP, OPP, OTP, OVP, SCP, SIP, UVP
Colour Category | Цветовая Категория
Black | Чёрный
DC to DC converter
true
Dimensions, Height {mm}
86
Dimensions, Length {mm}
160
Dimensions, Width {mm}
150
Fan Size
140 mm
Flat Cables
false
Floppy
--
Full Bridge
false
Input Voltage Range
100~240 VAC
LCC
true
Lighting Effects / LED Type
None
MOLEX
4
PC Component Type
PC Power Supply
PF Correction
Active PFC
PSU Type
Internal
SATA power
12
Weight {kg}
2.6
Zero-RPM Mode
false
