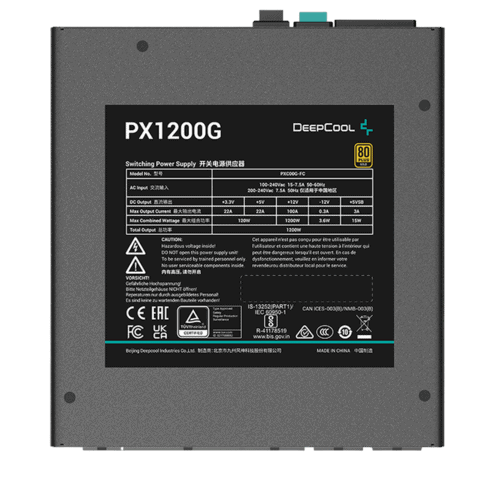

Блок питания Power Supply ATX 1200W Deepcool PX1200G, 80+ Gold, ATX 3.0, 135mm, Fanless mode, Active PFC, HB SRC
208771
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
.
PN: R-PXC00G-FC0B-EU
Technical Spec
Type ATX12V V3.0
Product Dimensions 150×160×86mm (W x L x H)
Efficiency certification 80Plus GOLD/Cybenetics_Platinum

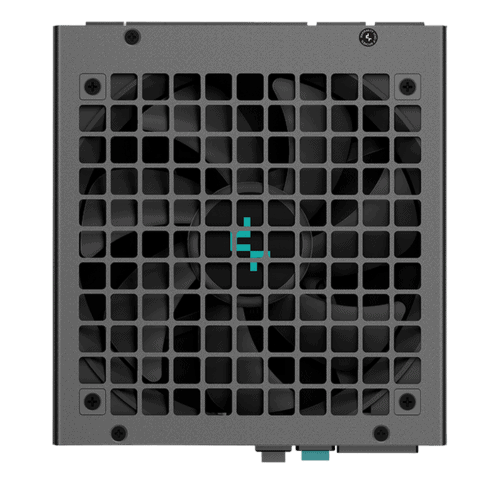

Fan Size 135mm
Fan Bearing FDB (Fluid Dynamic Bearing)

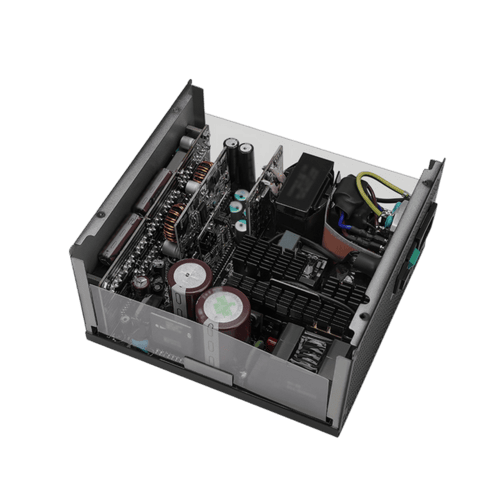

Topology Active PFC + Half Bridge SRC LLC + DC to DC
Capacitors Full Japan Electrolytic Capacitors
Power Good Signal 100-150ms
Hold Up Time ≥16ms
Efficiency ≥90% Under Typical Load(50% Loading)
Protection OPP/OVP/SCP/OTP/OCP/UVP
Operation Temperature 0 - 40℃
Regulatory CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/KC;
Erp Regulation ErP 2014
Environment Protection WEEE/中国 RoHS/Triman
MTBF 100,000 Hours

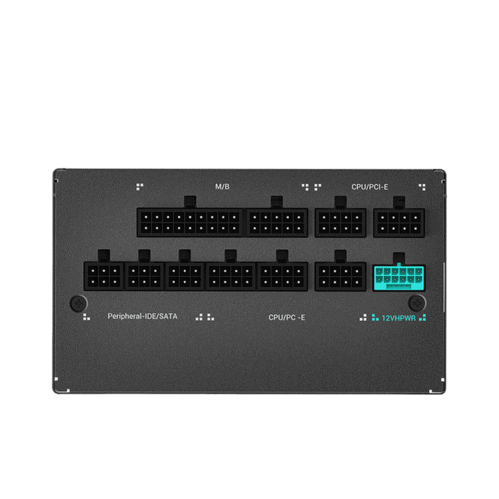

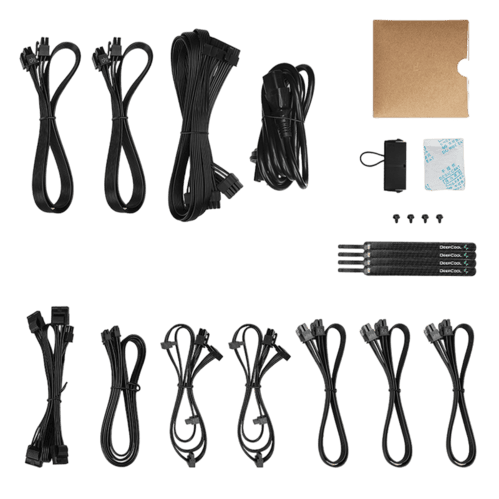

8-pin (4+4) ATX/ESP 12V
2
8-pin (6+2) PCI-E
6
ATX Version
ATX 12V 3.0
Brand
Deepcool
Circuit Protection
OVP, UVP, OCP, SCP, OPP, OTP
DC to DC converter
true
Flat Cables
false
Full Bridge
false
LCC
true
MOLEX
4
PF Correction
Active PFC
SATA power
2
Zero-RPM Mode
false
