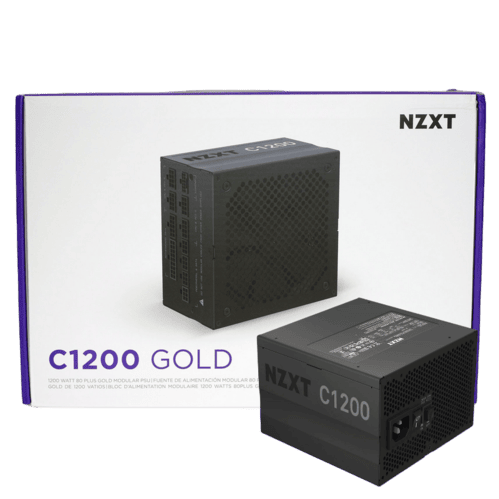

Power Supply ATX 1200W NZXT C1200, 80+ Gold, 135 mm fan, ATX 3.0, Zero RPM Fan mode, Full Modular
209191
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

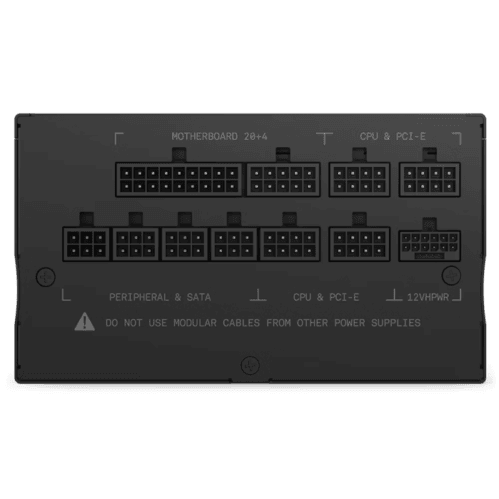

. PN: PA-2G1BB-EU Inside the Box C1200 Gold 1 24-Pin ATX Power Cable 1 4+4-Pin CPU Power Cables 1 8-Pin CPU Power Cable 1 6+2-pin PCIe Power Cable 2 16-Pin (12+4) 12VHPWR PCIe Cable 1 SATA Cables 3 Peripherals Cables 1 6-32 Screws 4 AC Power Cord 1 OUTPUT CONNECTORS 24-pin ATX power 1 4+4-pin CPU power 1 8-pin CPU Cable 1 6+2-pin PCIe power 2 16-pin (12+4) 12VHPWR PCIe Cable 1 SATA power 8 Peripherals 4 CABLE SPECS 24-pin ATX power 600 mm, Nylon sleeving 4+4-pin CPU power 700 mm, Nylon sleeving 8-Pin CPU Power Cable 700mm, Nylon sleeving 6+2-pin PCIe power 650 + 150 mm, Nylon sleeving 16-Pin (12+4) 12VHPWR PCIe Cable 650mm, Nylon sleeving SATA power 500 + 150 mm Peripherals 500 + 150 mm AC INPUT RATING 100 - 240Vac 14A-7A 50Hz-60Hz DC OUTPUT RATING +3.3V and +5V 22A (120W) +12V 100A (1200W) -12V 0.3A (3.6W) 5Vsb 3A (15W) Total 1200W OPERATION PF Correction Active @0.96 MTBF 100,000 hours Temperature 0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C) ENERGY EFFICIENCY Rating 80 Plus Gold 20% loading 90.97% @115Vac 50% loading 91.55% @115Vac 100% loading 88.51% @115Vac FAN SPECS Dimensions 135 x 135 x 25 mm Speed 0-2300 ± 10% RPM Airflow 93.02 CFM (Tpy.) Noise 44.5 dBA max Bearing Fluid Dynamic Bearing (FDB) GENERAL Dimensions 150 x 150 x 86mm Material(s) Steel, PCB and Plastic Compliance Standard ATX12V v3.0 / EPS12V v2.92
8-pin (4+4) ATX/ESP 12V
1
8-pin (6+2) PCI-E
2
Application (Usage)
PC
ATX Version
ATX 12V 3.0 / EPS 12V 2.92
Brand
NZXT
Colour Category | Цветовая Категория
Black | Чёрный
DC to DC converter
false
Dimensions, Height {mm}
86
Dimensions, Length {mm}
150
Dimensions, Width {mm}
150
Fan Size
135 mm
Flat Cables
false
Full Bridge
false
Input Voltage Range
100~240 VAC
LCC
false
Max. Fan Speed {rpm}
2300
Noise Level {dBA}
44.5
PC Component Type
PC Power Supply
PF Correction
Active PFC
SATA power
8
Weight {kg}
1.77
Zero-RPM Mode
true
