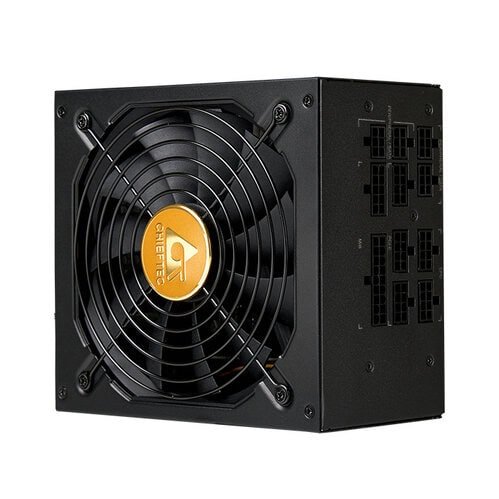

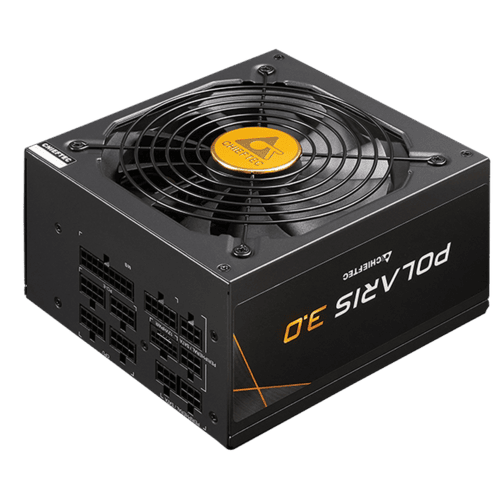

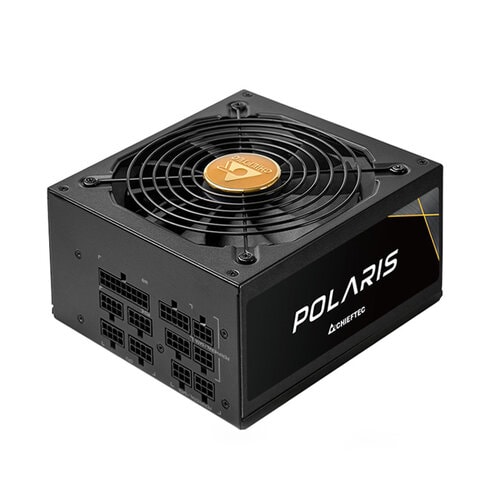

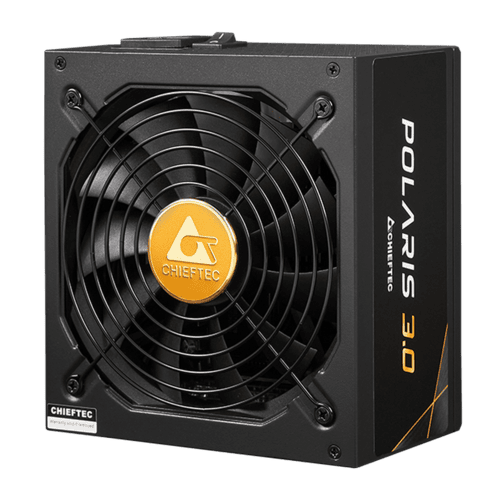

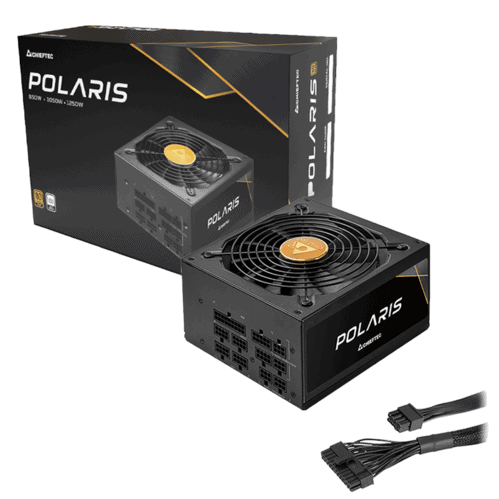

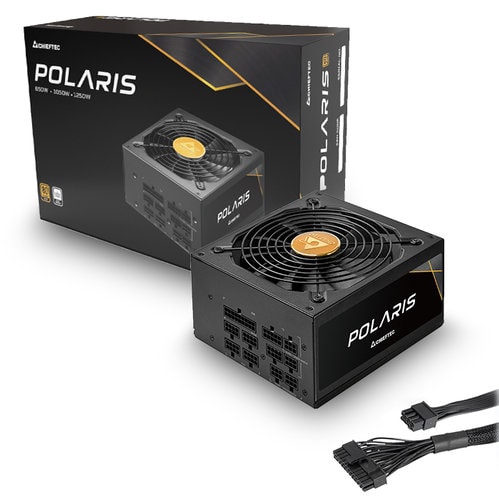

Power Supply ATX 1250W Chieftec POLARIS PPS-1250FC, 140mm, HB LLC, DC/DC, Full Modular
140313
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
.
Model POLARIS 1250W
Article no. PPS-1250FC
EAN code 753263077516
Weight (without/with package) 2.7kg / 3.5kg

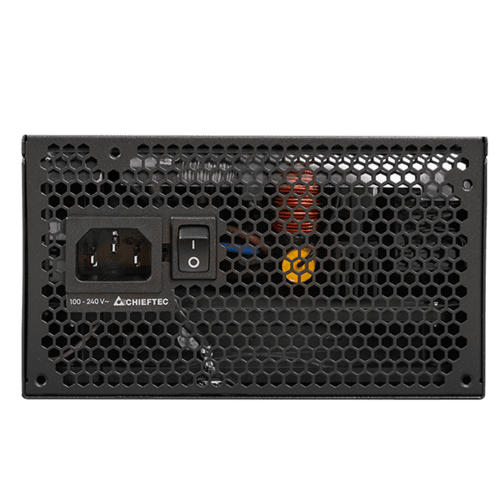

AC Input 100-240V / 15-8A
Frequency 50 - 60Hz
+5V 22A
+3,3V 22A
+5V & +3,3V combined 120W
+12V1 104.1A
+12V2 -
+12V1, +12V2 combined 1250W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 3.0A / 15W
Maximum Power 1250W

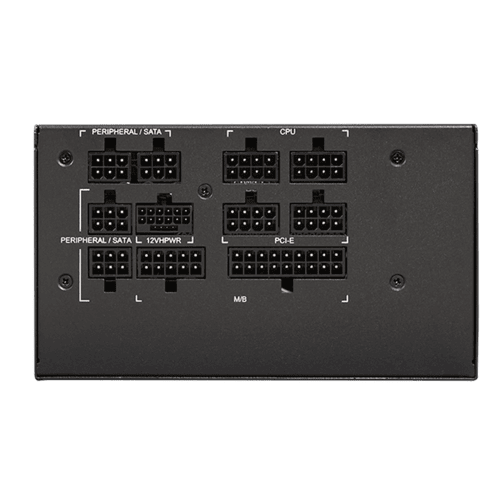

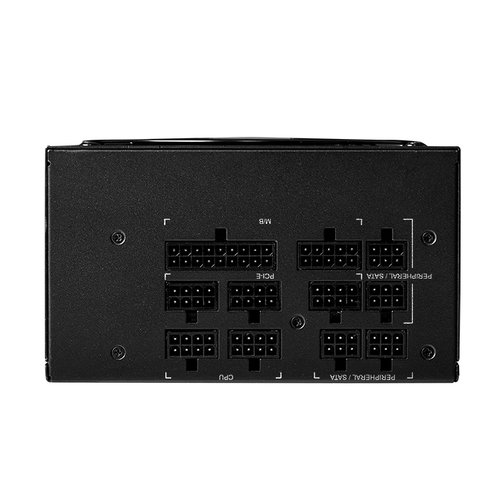

Connectors
20+4 PIN ATX 1
8 PIN EPS (4+4) 2
8 PIN PCIe (6+2) 6
SATA 12
MOLEX 4

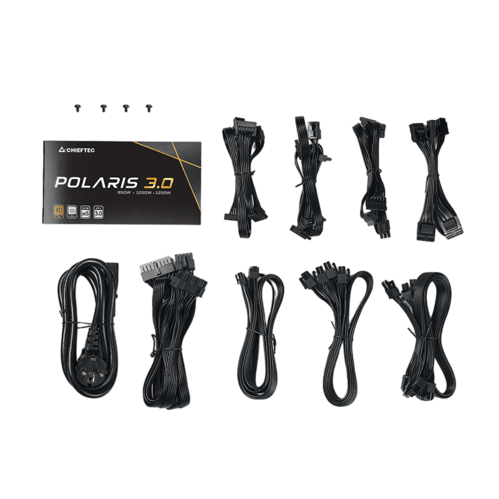

Cable length (mm)
20+4 PIN ATX 650
8 PIN EPS (4+4) 2 x 650
8 PIN PCIe (6+2) 3 x 600/100
SATA 3 x 550/100/100/100
MOLEX/FLOPPY 550/100/100/100
Features
ATX12V Version ATX 12V 2.3
Efficiency 80+Gold
Dimension (DxWxH) 160 mm x 150 mm x 86 mm
PFC Active PFC

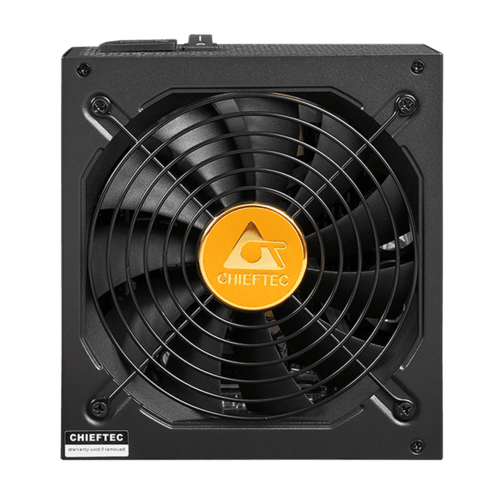

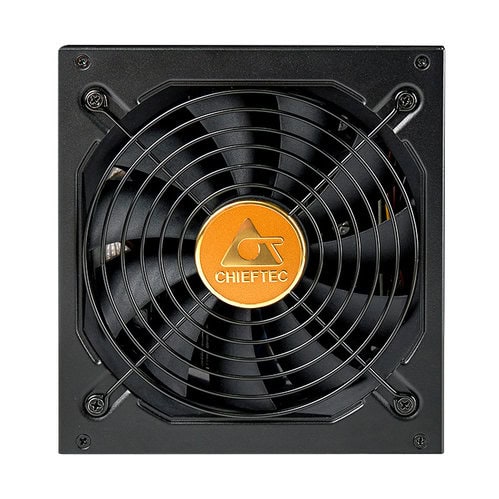

Fan 140mm silent fan
Security AFC (Automatic Fan speed Control)
OCP (Over Current Protection)
OPP (Over Power Protection)
OTP (Over Temperature Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
8-pin (4+4) ATX/ESP 12V
2
8-pin (6+2) PCI-E
6
Application (Usage)
PC
ATX Version
ATX 12V 2.53
Brand
Chieftec
Circuit Protection
AFC, OCP, OPP, OTP, OVP, SCP, SIP, UVP
Colour Category | Цветовая Категория
Black | Чёрный
DC to DC converter
false
Dimensions, Height {mm}
86
Dimensions, Length {mm}
160
Dimensions, Width {mm}
150
Fan Size
120 mm
Flat Cables
false
Full Bridge
false
Input Voltage Range
100~240 VAC
LCC
false
Lighting Effects / LED Type
None
MOLEX
4
PC Component Type
PC Power Supply
PF Correction
Active PFC
PSU Type
Internal
SATA power
12
Weight {kg}
2.7
Zero-RPM Mode
false
