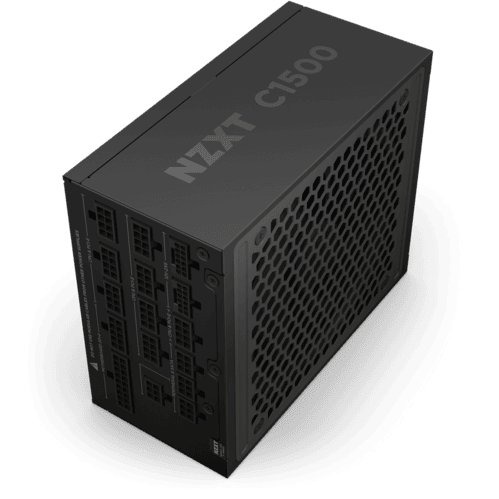

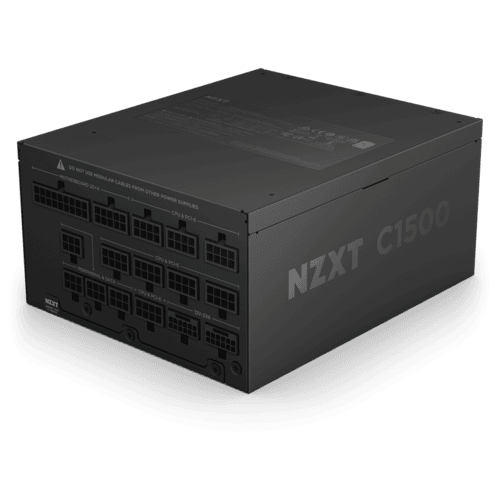

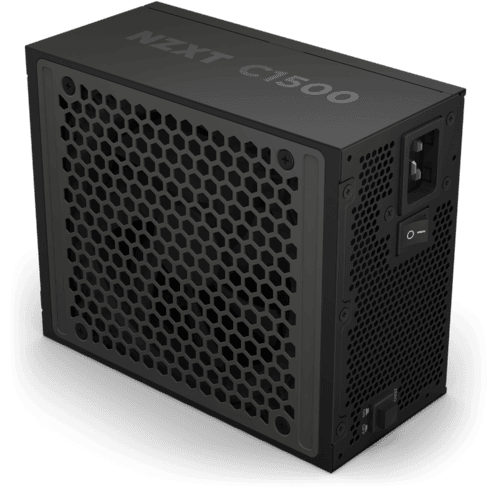

Power Supply ATX 1500W NZXT C1500, 80+ Platinum, 140 mm fan, Active PFC, ATX 3.1, 2x12V-2x6 PCIe 5.1

.

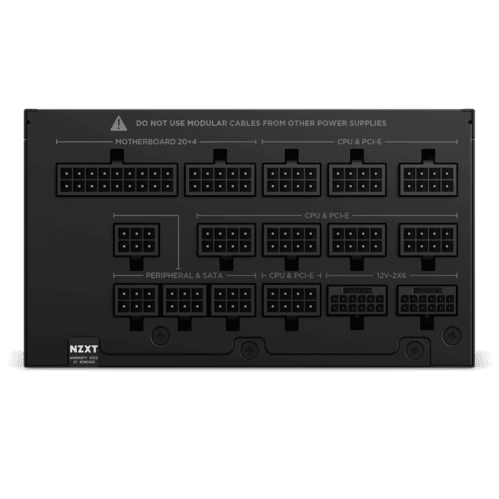

Output Connectors
24-pin ATX Power Cable 1
4+4-pin CPU Power Cable 1
8-pin CPU Power Cable 1
6+2-pin PCIe Power Cable 6
16-pin (12+4) 12V-2x6 PCIe Cable 2
SATA Cable 12
Peripherals Cable 4
Cable Specs
24-pin ATX Power Cable 600mm with nylon sleeving
4+4-pin CPU Power Cable 700mm with nylon sleeving
8-pin CPU Power Cable 700mm with nylon sleeving
6+2-pin PCIe Power Cable 650mm with nylon sleeving
16-pin (12+4) 12V-2x6 PCIe Cable 650mm with nylon sleeving
SATA Cable 500 + 150 mm with nylon sleeving
Peripherals Cable 500 + 150 mm with nylon sleeving
AC Input Rating
100 - 240Vac 15A-9A 50Hz-60Hz
200 - 240Vac 9A 50Hz-60Hz
DC Output Rating
3.3V / +5V 22A (120W)
12V 125A (1500W)
5Vsb 3A (15W)
Total 1500W (115-240Vac) / 1300W (100-115Vac)
Energy Efficiency
Rating 80 Plus Platinum
10% loading 92% @115Vac
20% loading 94% @115Vac
50% loading 93.8% @115Vac
100% loading 90.8% @115Vac
Electrical Features
PF Correction Active @0.99
Protections OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) /

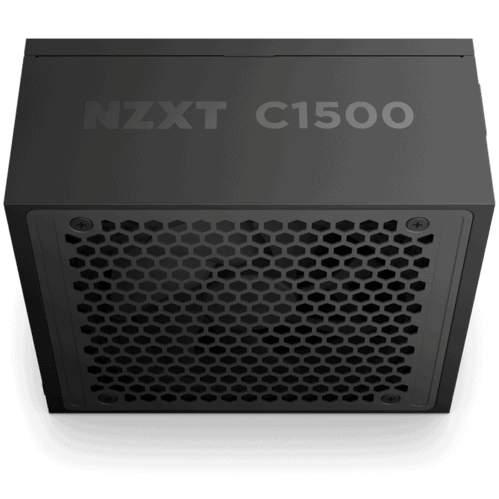

Fan Specs
Dimensions 140 x 140 x 25 mm
Speed 2500 ± 10% RPM
Airflow 125 CFM (Tpy.)
Noise 41.0 dBA max
Bearing Magnetic Levitation Bearing (ML)
Operation
MTBF 100,000 hours
Temperature 0 - 50 °C
Dimensions
Width 5.91 in / 150 mm
Height 3.39 in / 86 mm
Depth 7.09 in / 180 mm
General
Material(s) Steel, PCB and Plastic
Compliance Standard ATX12V v3.1 / EPS12V v2.92
Regulation & Certification FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65
Model Number PA-PA-5P1BB-EU
