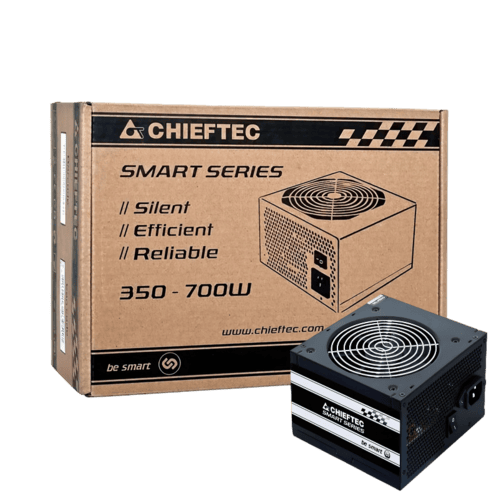

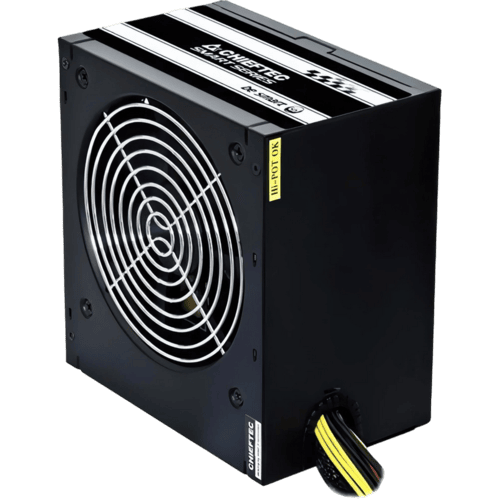

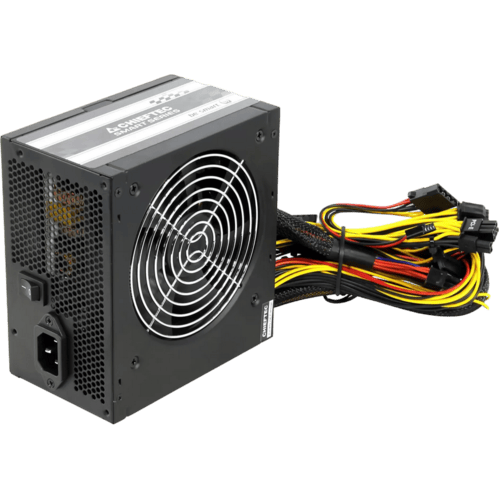

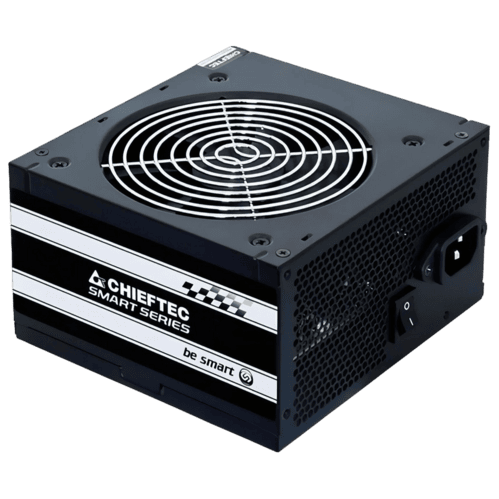

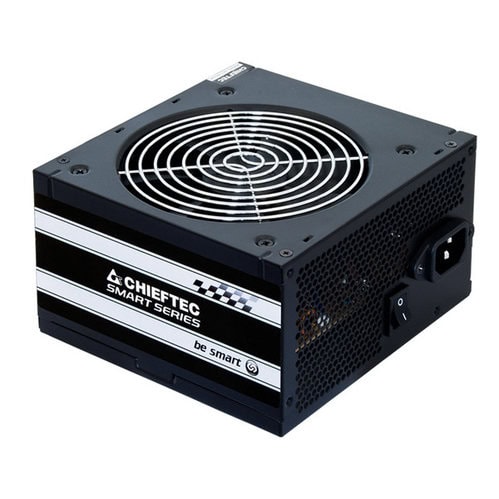

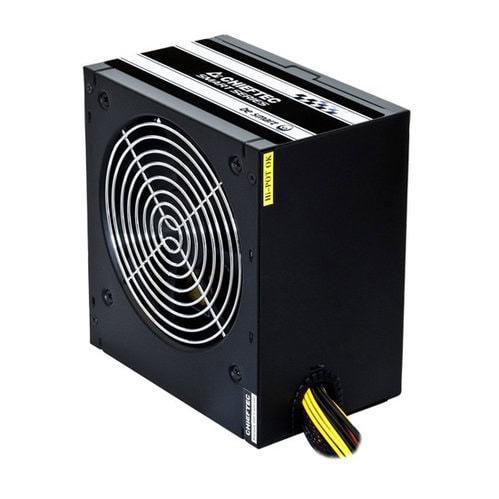

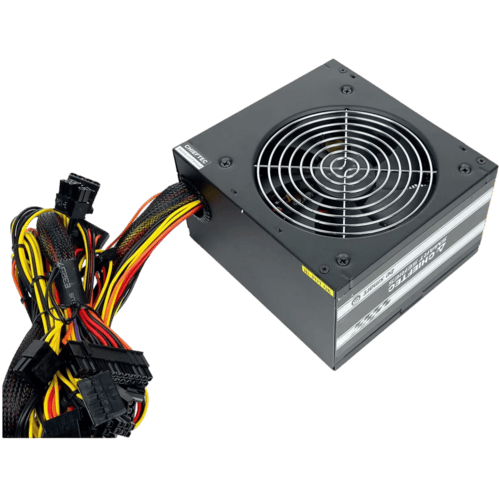

Блок питания Power Supply ATX 500W Chieftec SMART GPS-500A8, 85+, 120mm, Active PFC
56981
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
.
Performance
AC Input: 230V / 5A
Frequency: 47 - 63Hz
+5V: 19A
+3,3V: 22A
+5V & +3,3V combined: 130W
+12V 1: 24A
+12V 2: 21A
+12V 1 & +12V 2 combined: 408W
+12V 3: N/A
+12V 4: N/A
+12V 3 & +12V 4 combined: N/A
P.F.: >0,9
-12V: 0,3A / 3,6W
+5VSB: 2,5A / 12,5W
Maximum Load: 500W
Native cable
20+4PIN ATX: 1
SATA: 3
MOLEX: 2
Floppy: 1
4PIN 12V: 1
8PIN 12V: -
8PIN (4+4) 12V: -
6PIN PCIe: -
8PIN (6+2) PCIe: 1
Features
Spezification: ATX 12V 2.3
Form factor: PS II
Efficiency: >85%
Dimension (DxWxH): 140 mm x 150 mm x 87 mm
PFC: Active PFC (0,9) (only 230V)
Fan: 120mm silent fan
Security: UVP (Undervoltage protection)
OVP (Overvoltage protection)
SCP (Short-circuit protection)
OPP (Overload protection)
AFC (Automatic Fanspeed Control)
SIP (Surge & Inrush Protection)
Warranty: 24 Month
https://www.chieftec.eu/en/psus/ps-2/smart-series/gps-500a8.html
6-pin PCI-E
--
8-pin (4+4) ATX/ESP 12V
1
8-pin (6+2) PCI-E
2
Application (Usage)
PC
ATX Version
ATX 12V 2.3
Brand
Chieftec
Circuit Protection
UVP, OVP, SCP, OPP, AFC
Colour Category | Цветовая Категория
Black | Чёрный
DC to DC converter
false
Dimensions, Height {mm}
87
Dimensions, Length {mm}
140
Dimensions, Width {mm}
150
Fan Size
120 mm
Flat Cables
false
Floppy
1
Full Bridge
false
Input Voltage Range
200~240 VAC
LCC
false
Lighting Effects / LED Type
None
MOLEX
2
PC Component Type
PC Power Supply
PF Correction
Active PFC
PSU Type
Internal
SATA power
6
Zero-RPM Mode
false
