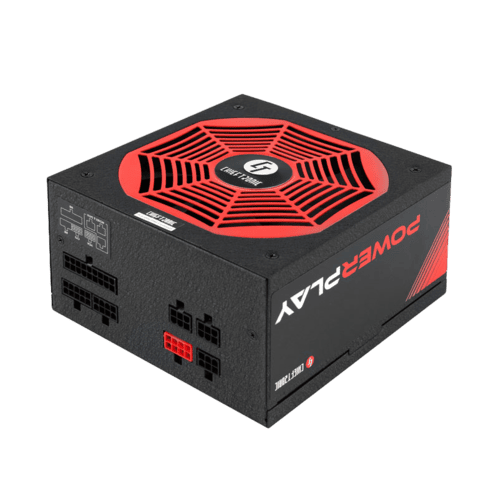

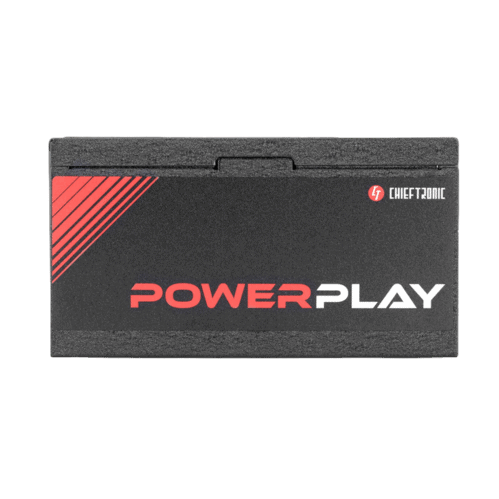

Блок питания Power Supply ATX 750W Chieftec POWER PLAY GPU-750FC, 80+ Gold, Active PFC,140mm, Full Modular Cable
102844
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
.
Model PowerPlay 750W
Article no. GPU-750FC
EAN code 7,53263E+11
Weight (without/with package) 2.44 kg / 2.85 kg

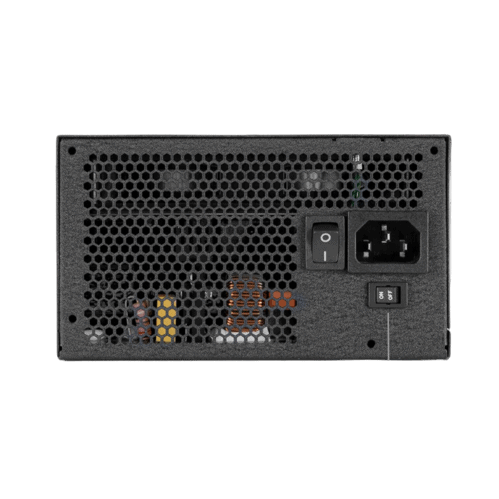

AC Input 100 - 240V / 10.0A
Frequency 47 - 63Hz
+5V 22A
+3,3V 22A
+12V 1 62.5A / 750W
P.F. >0,9
-12V 0,3A / 3,6W
+5VsB 3,0A / 15W
Maximum Power 750W

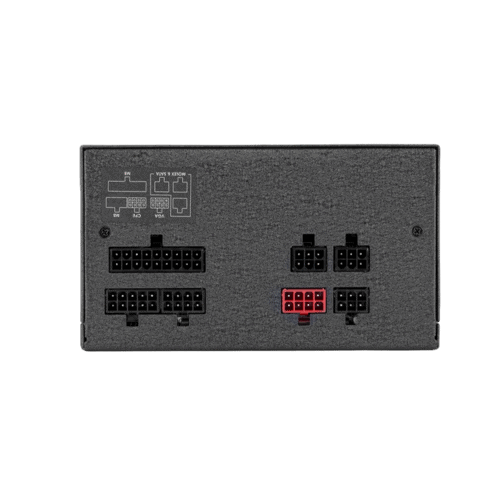

20+4PIN ATX 1
8 PIN EPS (4+4) 1
8 PIN PCIe (6+2) 4
SATA 9
MOLEX 3
FLOPPY 1
20+4PIN ATX 600
8 PIN EPS (4+4) 700
8 PIN PCIe (6+2) 2x 600/150
SATA 3x 800/150/150
MOLEX 700/150/150/150
FLOPPY Molex
Specification ATX 12V 2.3
Form factor PS II
Efficiency 80 PLUS Gold
Dimension (DxWxH) 160 mm x 150 mm x 86 mm
PFC Active PFC

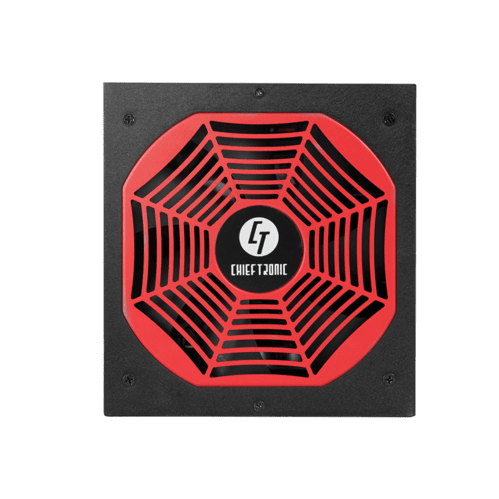

Fan 140mm silent fan
Security OVP (Over voltage protection)
OPP (Over power protection)
OCP (Over current protection)
SCP (Short-circuit protection)
OTP (Over temperature protection)
AFC (Automatic Fanspeed Control)
SIP (Surge & Inrush Protection)
UVP (Undervoltage Protection)
No-load operation
https://www.chieftec.eu/en/chieftronic-en/powerplay-gold/gpu-750fc.html
8-pin (4+4) ATX/ESP 12V
1
8-pin (6+2) PCI-E
2
ATX Version
ATX 12V 2.3
Brand
Chieftec
DC to DC converter
false
Flat Cables
false
Floppy
1
Full Bridge
false
LCC
false
MOLEX
3
PF Correction
Active PFC
PSU Type
SATA power
9
Zero-RPM Mode
false
