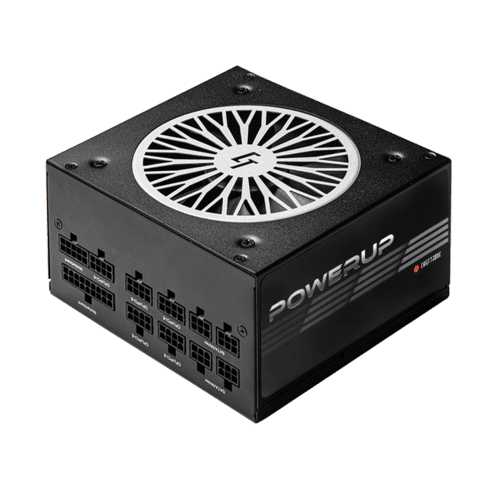

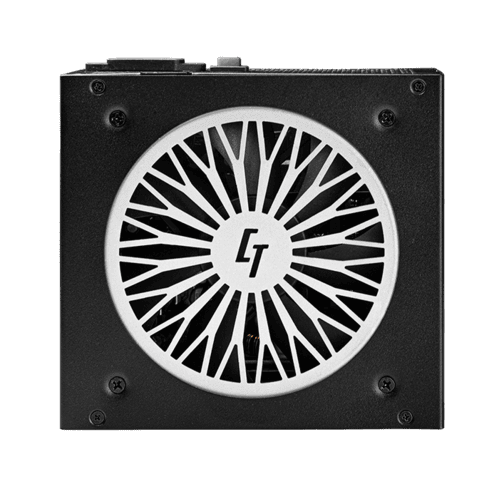

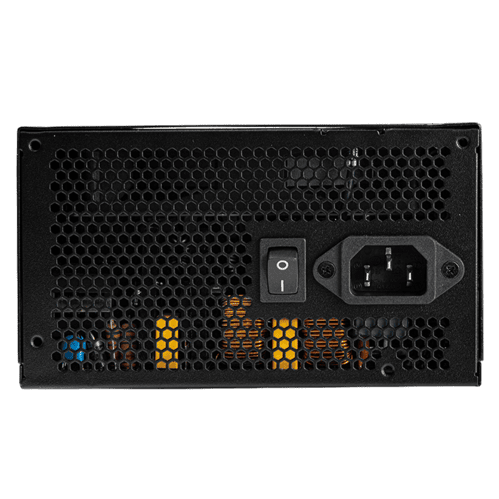

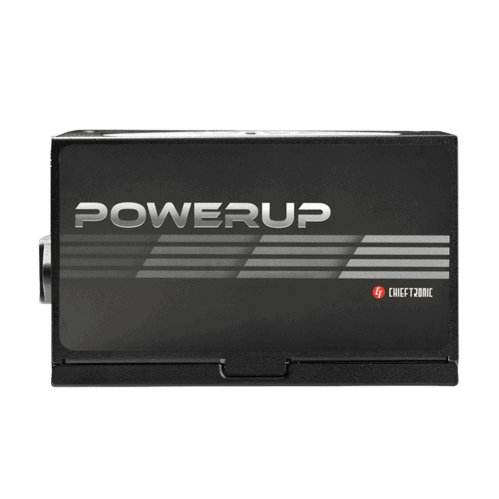

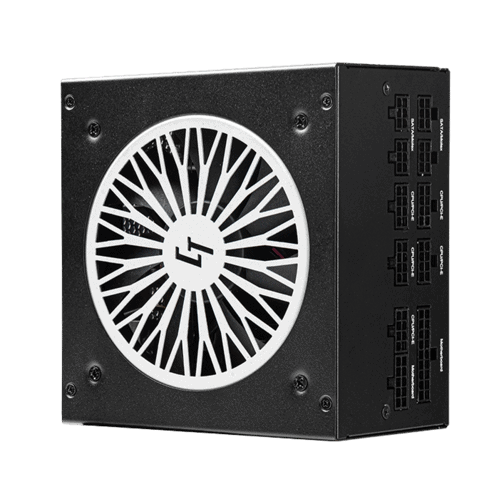

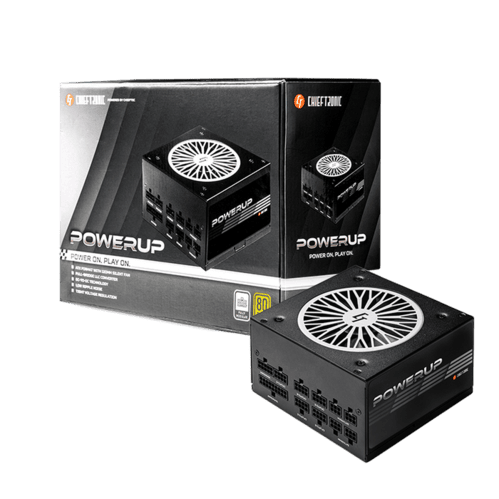

Power Supply ATX 750W Chieftec PowerUP GPX-750FC, 80+ Gold, 120mm, Fully modular, FB LLC+DC-DC
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

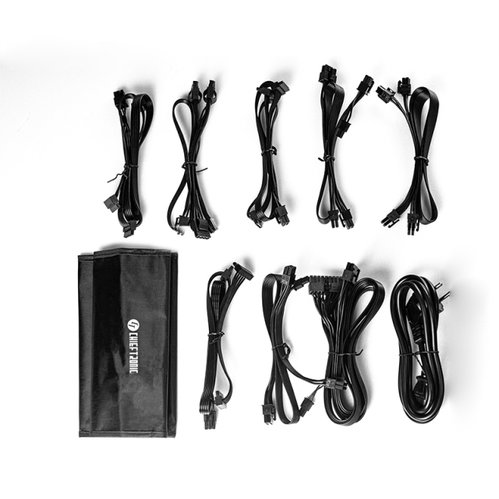

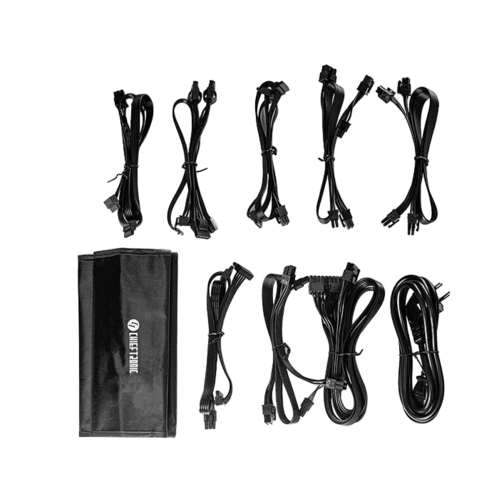

. 80 PLUS® Gold certified efficiency Fully modular cable management Full-bridge LLC converter with DC-to-DC technology Low ripple and tight voltage regulation Model PowerUP 750W Article no. GPX-750FC EAN code 753263077196 Weight (without/with package) 2.3 kg / 2.85 kg AC Input 100 - 240V / 10.0A Frequency 47 - 63Hz +5V 20A +3,3V 20A +5V & +3,3V combined 110W +12V1 62A +12V2 - +12V1, +12V2 combined 744W P.F. -12V 0,3A / 3,6W +5VSB 2,5A / 12,5W Maximum Power 750W 20+4 PIN ATX 1 8 PIN EPS(4+4) 2 8 PIN PCIe (6+2) 4 SATA 9 MOLEX/FLOPPY 3/1 ATX12V Version v2.53 Efficiency 80+Gold Dimension (DxWxH) 140 mm x 150 mm x 86 mm PFC Active PFC Fan 120mm silent fan Security AFC (Automatic Fan speed Control) OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection)
8-pin (4+4) ATX/ESP 12V
2
8-pin (6+2) PCI-E
4
Application (Usage)
PC
ATX Version
ATX 12V 2.53
Brand
Chieftec
Circuit Protection
AFC, OCP, OPP, OTP, OVP, SCP, SIP, UVP
Colour Category | Цветовая Категория
Black | Чёрный
DC to DC converter
true
Dimensions, Height {mm}
86
Dimensions, Length {mm}
140
Dimensions, Width {mm}
150
Fan Size
120 mm
Flat Cables
false
Floppy
1
Full Bridge
false
Input Voltage Range
100~240 VAC
LCC
true
Lighting Effects / LED Type
None
MOLEX
3
PC Component Type
PC Power Supply
PF Correction
Active PFC
PSU Type
Internal
SATA power
9
Weight {kg}
2.3
Zero-RPM Mode
false
