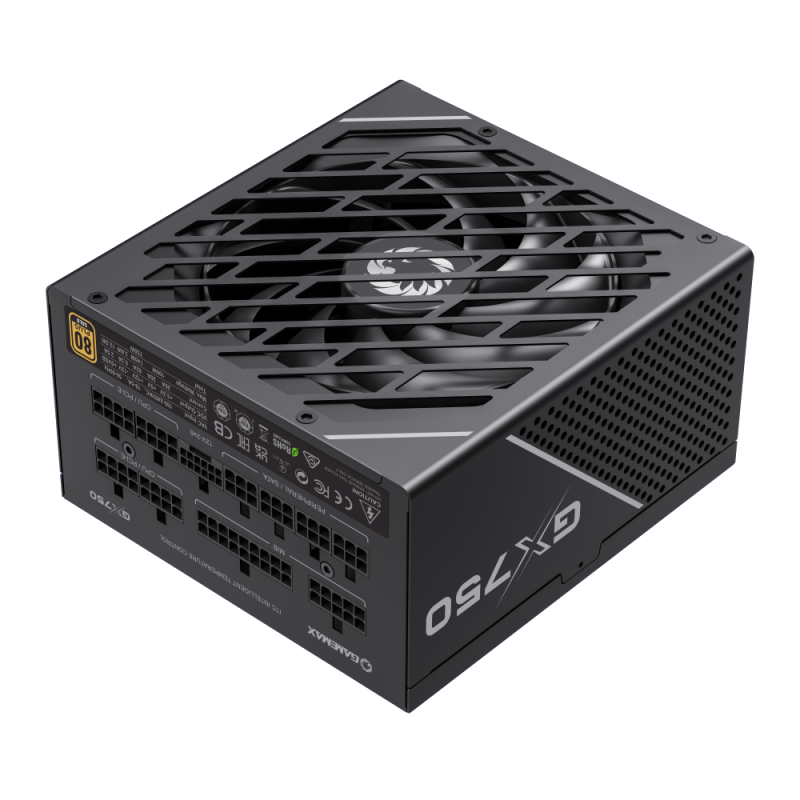

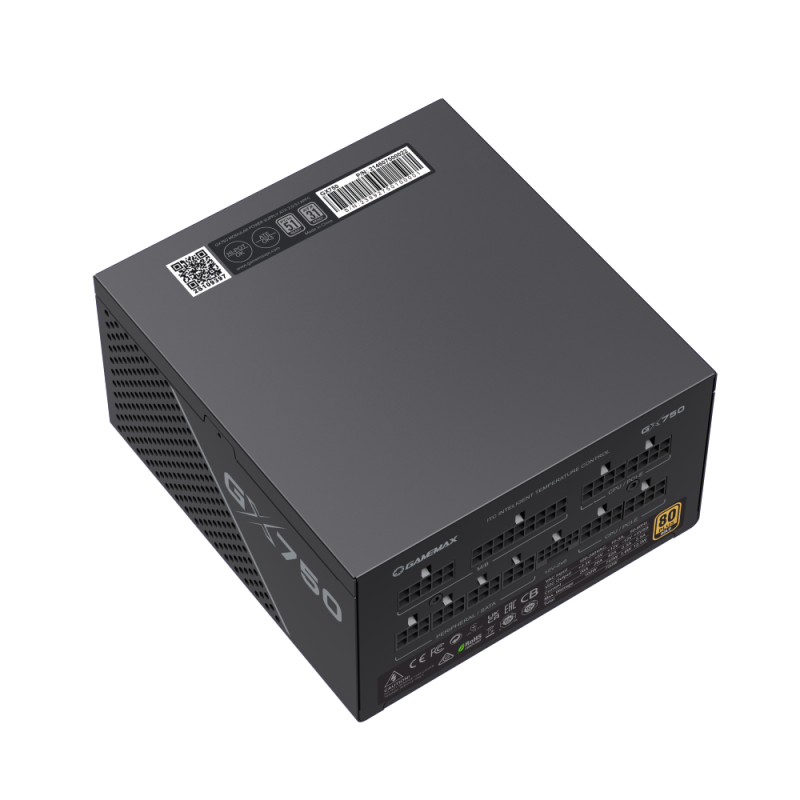

Power Supply ATX 750W GAMEMAX GX-750 PRO, 80+ Gold, 135mm, Active PFC, SR+LLC+DC/DC, ATX 3.1, PCIe5.
Power Supply ATX 750W GAMEMAX GX-750 PRO, 80+ Gold, 135mm, Active PFC, SR+LLC+DC/DC, ATX 3.1, PCIe5.
10950
229665
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

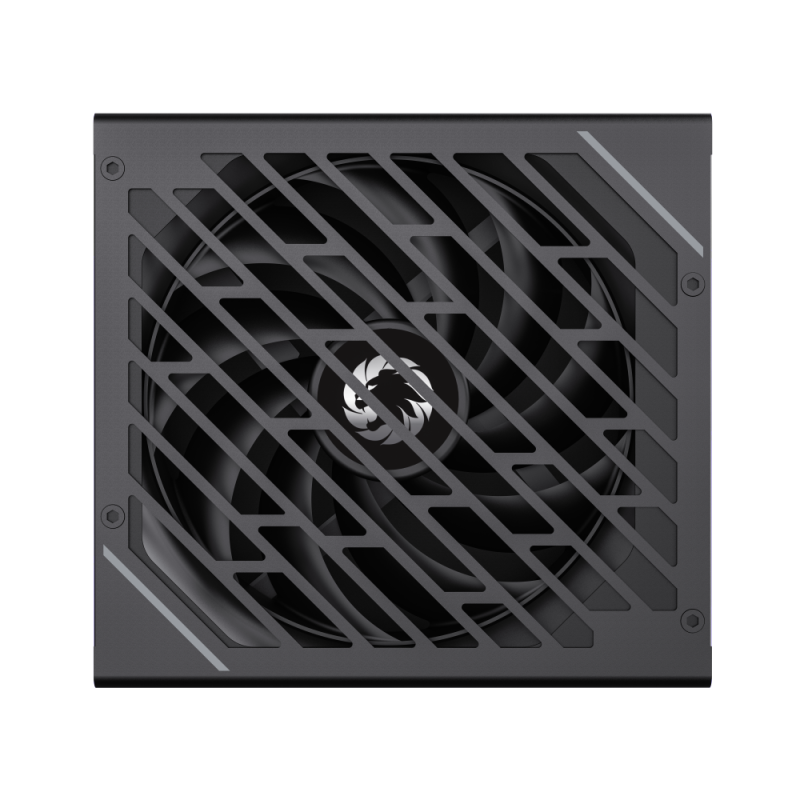

. 750W 80 Plus Gold ATX3.1 PCIe5.1 power supply with PCIe5.1 12V-2*6 connector for direct RTX™ 40 Series GPU connection, minimizing current loss. • ATX3.1 & PCIe5.1 ready with 12V-2*6 connector • LLC MPS1213 Chipset optimizes LLC resonant circuit for high efficiency at all loads • UP3861 Chip ensures stable 3.3V and 5V outputs with reduced ripple noise • MPS6924 Chip boosts efficiency via optimized synchronous rectification • 105℃ Japanese bulk capacitors ensure long life and stable output • Quiet, temperature-controlled axial fan for efficient cooling • Seven protection levels: OTP, OCP, SCP, OVP, UVP, OPP, SIP • Black flat copper output cables for efficient power delivery • SMT-produced components for fast heat dissipation and stability

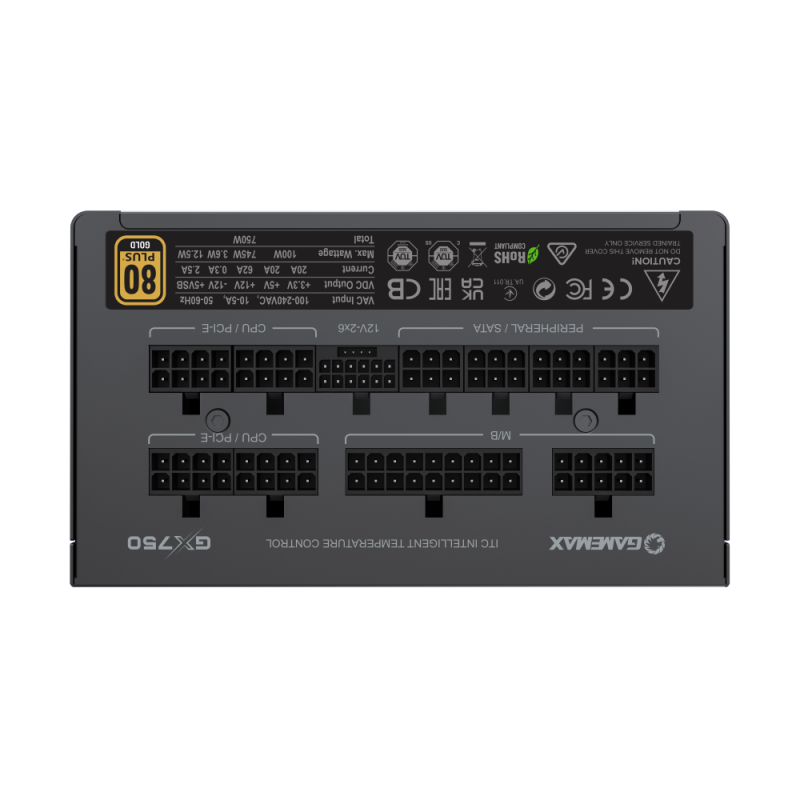

24-pin (20+4) ATX power
1
8-pin (4+4) ATX/ESP 12V
2
8-pin (6+2) PCI-E
4
Application (Usage)
PC
ATX Version
ATX 12V 3.1
Brand
Gamemax
Circuit Protection
OTP, OCP, SCP, OVP, UVP, OPP
DC to DC converter
true
Dimensions, Height {mm}
86
Dimensions, Length {mm}
160
Dimensions, Width {mm}
150
Energy Efficiency Rating
80+ Gold
Fan Size
135 mm
Flat Cables
true
Full Bridge
false

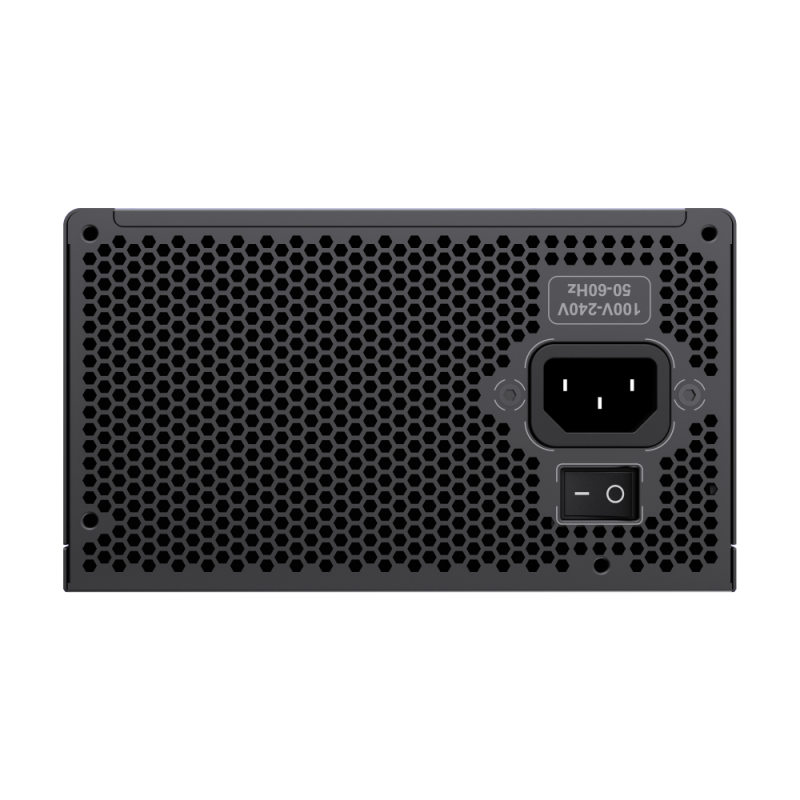

Input Voltage Range
100~240 VAC
LCC
true
Modular Cable Management
Fully Modular
MOLEX
3
PC Component Type
PC Power Supply
PF Correction
Active PFC
PSU Form-Factor
ATX
SATA power
6
Wattage {W}
750
Zero-RPM Mode
false
