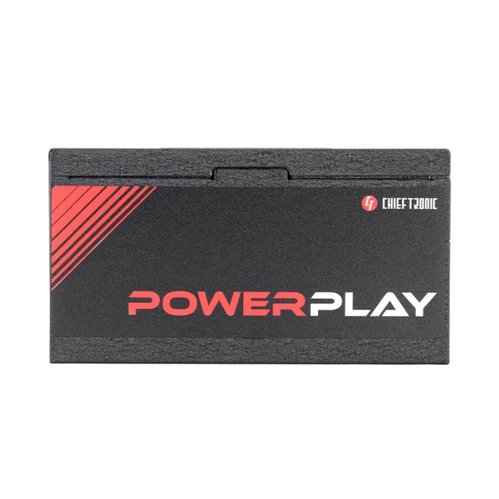

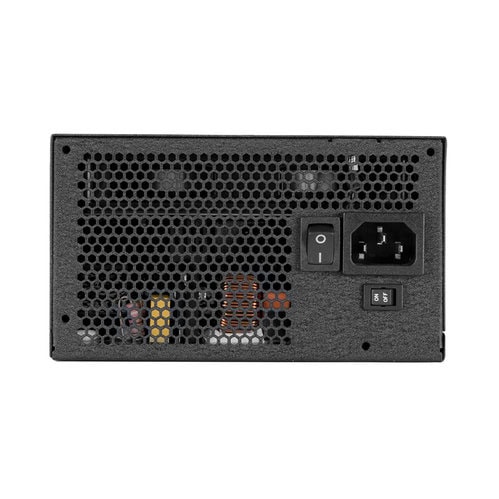

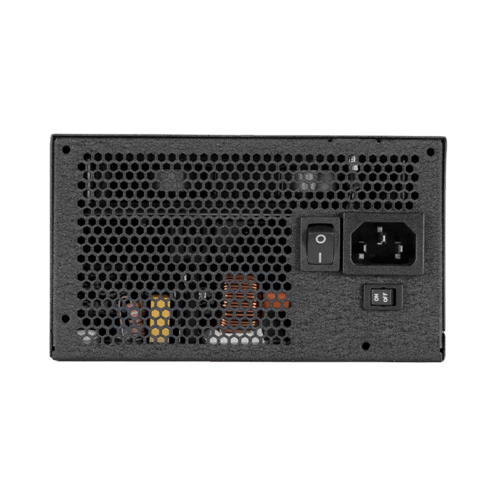

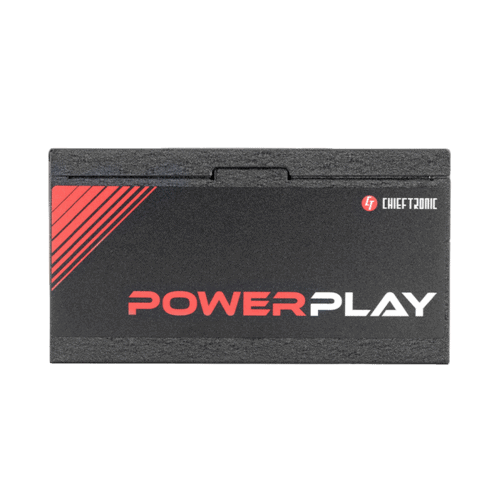

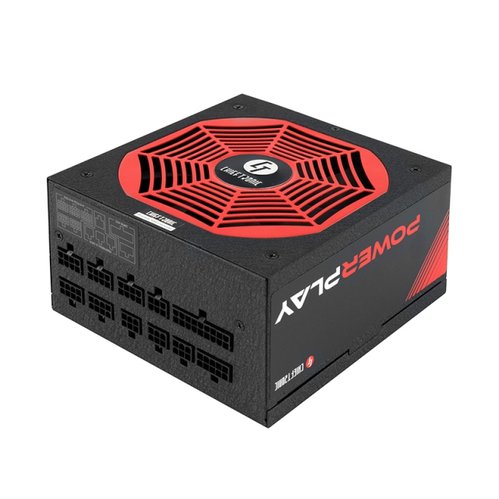

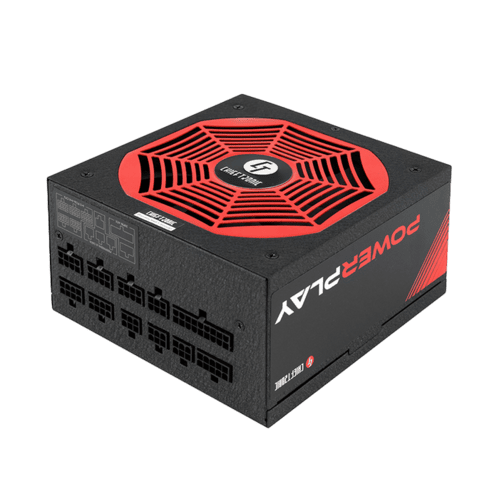

Блок питания Power Supply ATX 850W Chieftec Chieftronic GPU-850FC, 80+ Platinum, 140mm, Full Modular
202734
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
.
TECHNICAL DATA
Model PowerPlay 850W
Article no. GPU-850FC
EAN code 0753263076090
Weight (without/with package) 3.41kg / 3.82kg
AC Input 100 - 240V / 12.0A
Frequency 47 - 63Hz
+5V 20A
+3,3V 20A
+5V & +3,3V combined 100W
+12V1 70.83A
+12V2 -
+12V1, +12V2 combined 849.96W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 3,0A / 15W
Maximum Power 850W

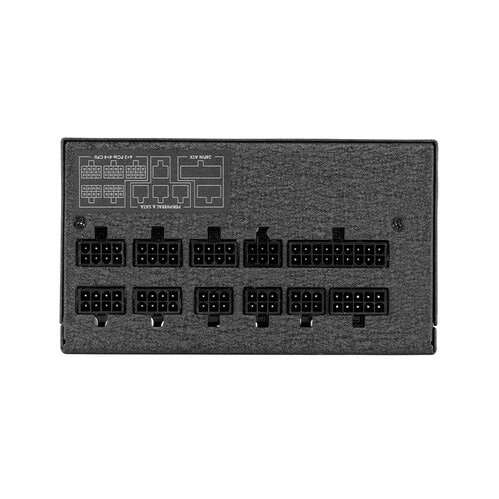

Connectors
20+4 PIN ATX 1
8 PIN EPS(4+4) 2
8 PIN PCIe (6+2) 6
SATA 9
MOLEX/FLOPPY 3/1
Cable length (mm)
20+4 PIN ATX 600
8 PIN EPS(4+4) 700/150
8 PIN PCIe (6+2) 2x 600/150
2x 600
SATA 3x 800/150/150
MOLEX/FLOPPY 700/150/150/150
Features
ATX12V Version ATX 12V 2.53
Efficiency 80+Platinum
Dimension (DxWxH) 160 mm x 150 mm x 87 mm
PFC Active PFC

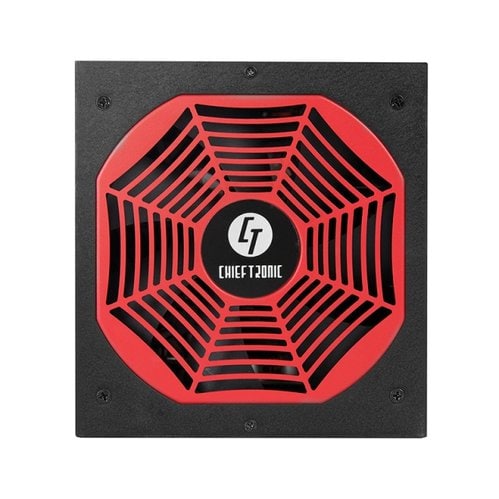

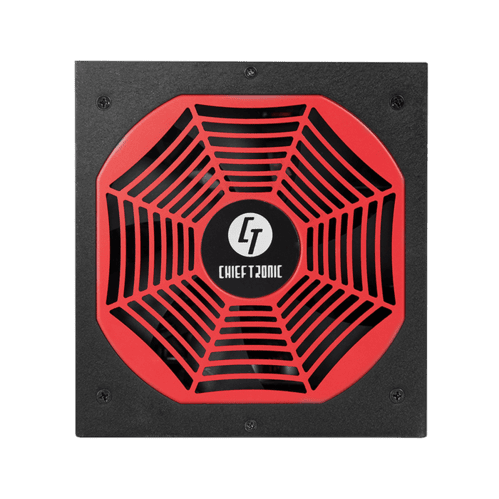

Fan 140mm silent fan
Security AFC (Automatic Fan speed Control)
OCP (Over Current Protection)
OPP (Over Power Protection)
OTP (Over Temperature Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
8-pin (4+4) ATX/ESP 12V
2
8-pin (6+2) PCI-E
1
ATX Version
ATX 12V 2.53
Brand
Chieftec
Circuit Protection
AFC, OCP, OPP, OTP, OVP, SCP, SIP, UVP
DC to DC converter
false
Flat Cables
false
Floppy
1
Full Bridge
false
LCC
false
Max. Fan Speed {rpm}
MOLEX
3
Noise Level {dBA}
PF Correction
Active PFC
PSU Type
SATA power
9
Zero-RPM Mode
false
