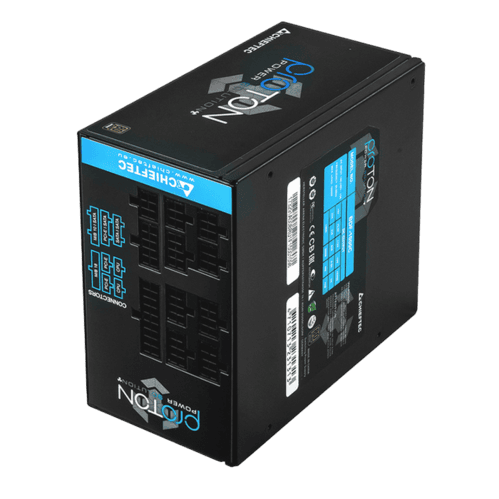

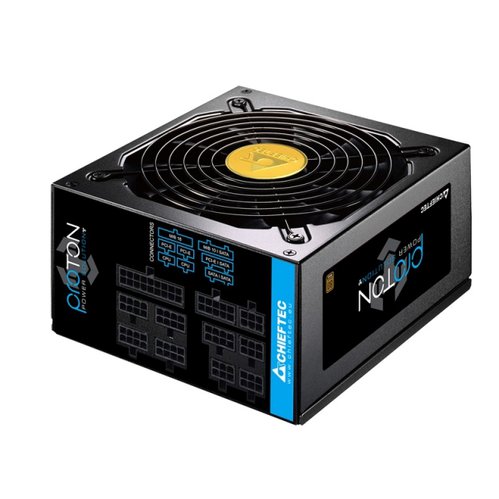

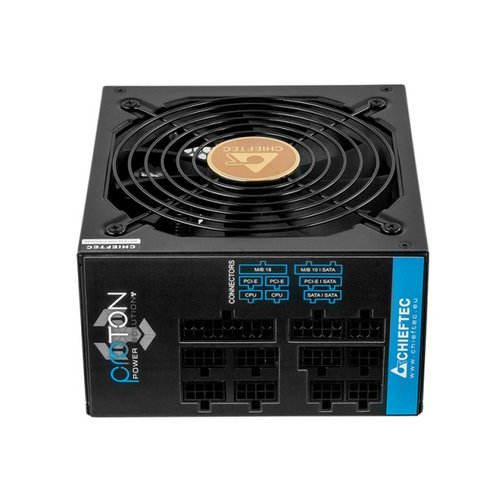

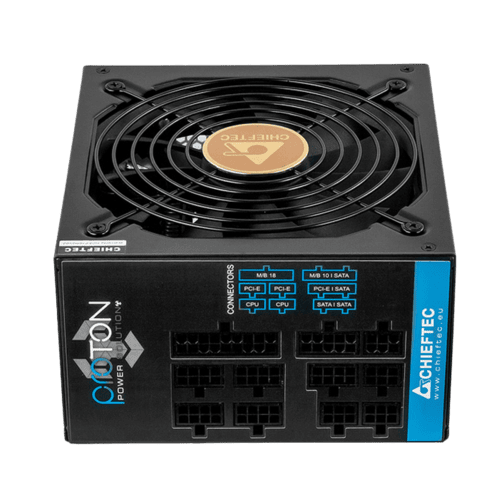

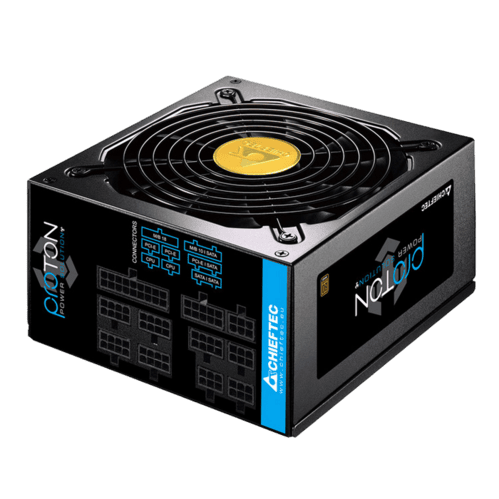

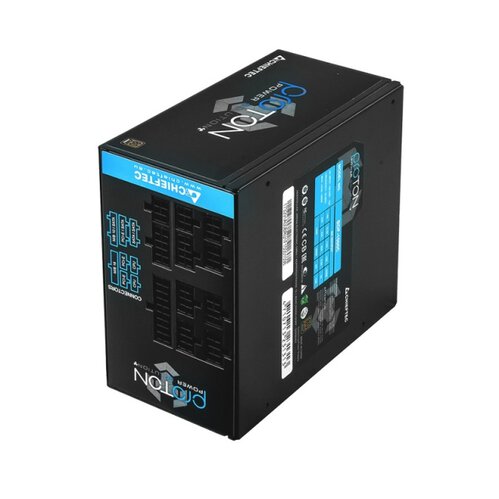

Блок питания Power Supply ATX 850W Chieftec PROTON BDF-850C, 80+ Bronze, 140mm, DC/DC, Full Modular cable
83010
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
.
Performance
Model Proton 850W
Article no. BDF-850C
EAN code 4710713231306
Weight (without/with package) 2.48 kg / 2.98 kg
AC Input 100-240V / 15.0A
Frequency 50-60Hz
+5V 22A
+3.3V 22A
+5V & +3.3V combined 140W
+12V 1 846W / 70.5A
P.F. >0.9
-12V 0.5A / 6.0W
+5VsB 3.0A / 15W
Maximum Power 850W
Connectors
20+4 PIN ATX 1
8 PIN EPS (4+4) 1
8 PIN EPS 1
8 PIN PCIe (6+2) 6
SATA 9
MOLEX 3
FLOPPY 1

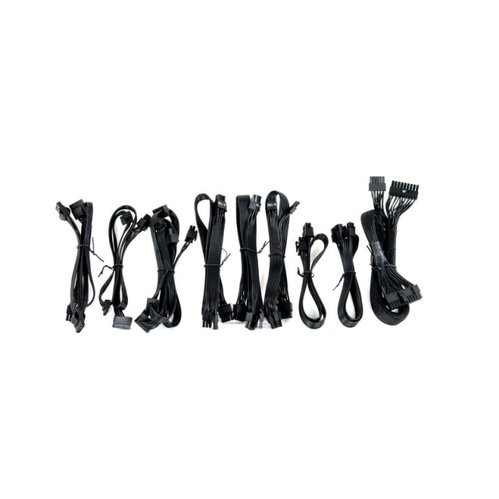

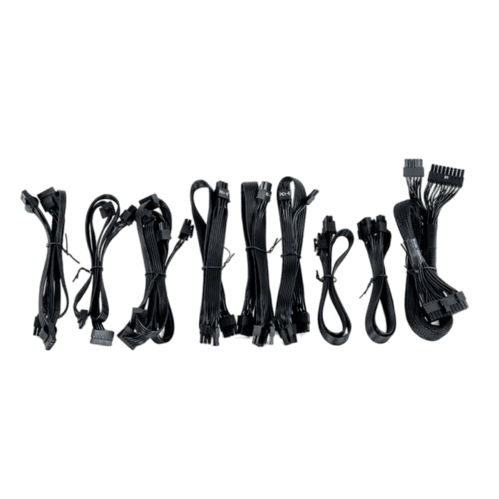

Cable length
24PIN ATX 500
8 PIN EPS (4+4) 550
8 PIN EPS 550
8 PIN PCIe (6+2) 3x 500/150
SATA 3x 450/150/150
MOLEX 450/150/150/150
FLOPPY Molex
Features
Specification ATX 12V 2.3
Form factor PS II
Efficiency 80 PLUS® Bronze
Dimension (DxWxH) 160mm x 150mm x 87mm
PFC Active PFC (0.9)
Fan 140mm silent fan
Security AFC (Automatic Fanspeed Control)
OCP (Overcurrent Protection)
OPP (Overload Protection)
OTP (Over Temperature Protection)
OVP (Overvoltage Protection)
SCP (Short-circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Undervoltage Protection)
Warranty 24 Months
https://www.chieftec.eu/en/psus/ps-2/proton-series/bdf-850c.html
8-pin (4+4) ATX/ESP 12V
1
8-pin (6+2) PCI-E
6
ATX Version
ATX 12V 2.3
Brand
Chieftec
Circuit Protection
AFC, OPP, OCP, OTP, SIP, UVP, OVP, SCP
DC to DC converter
false
Flat Cables
false
Floppy
1
Full Bridge
false
LCC
false
MOLEX
3
PF Correction
Active PFC
PSU Type
SATA power
9
Zero-RPM Mode
false
