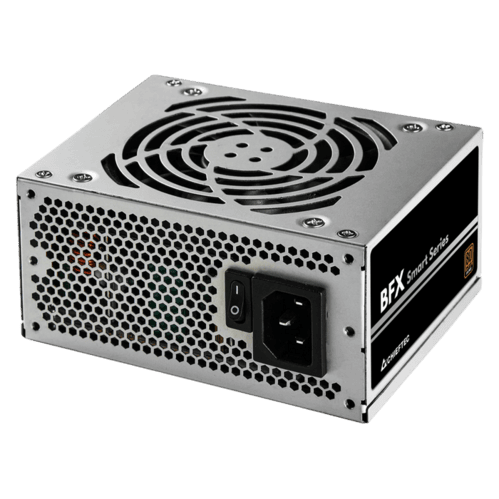

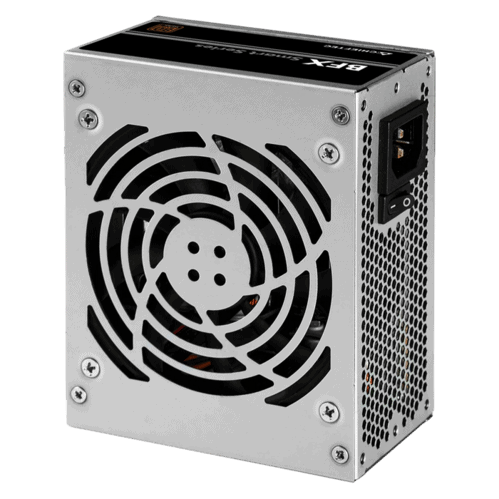

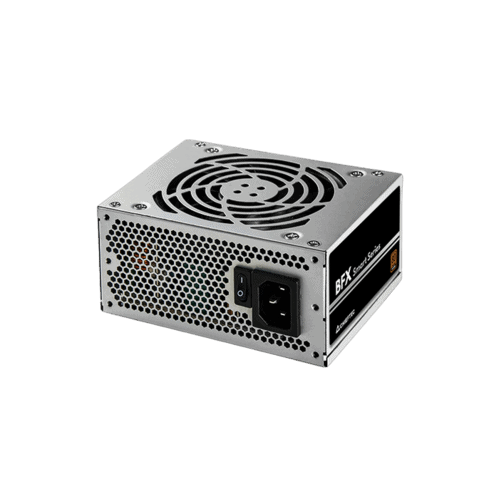

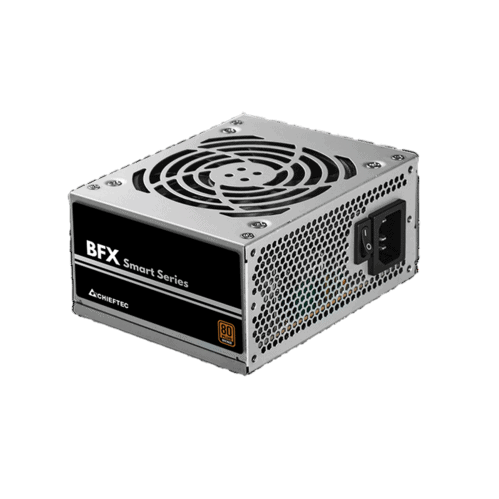

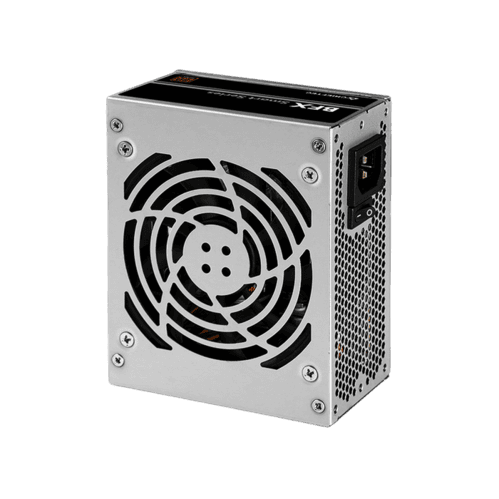

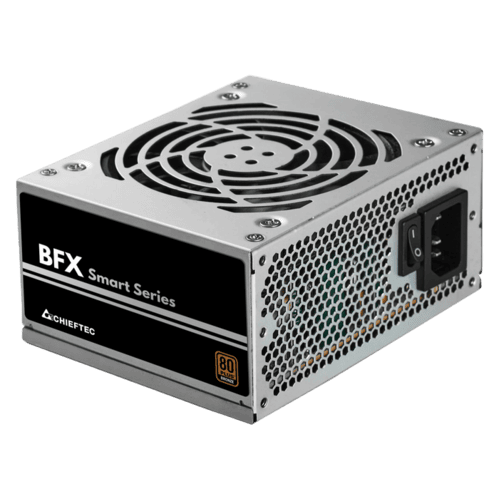

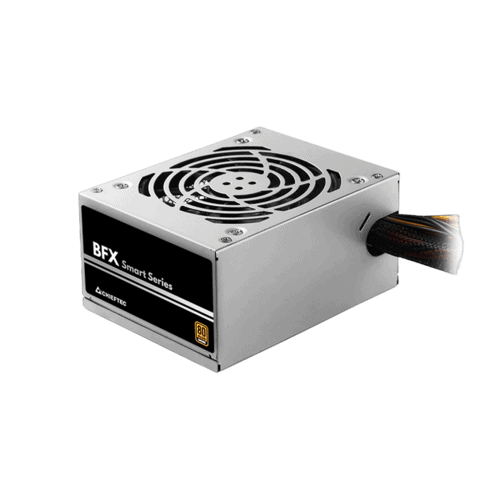

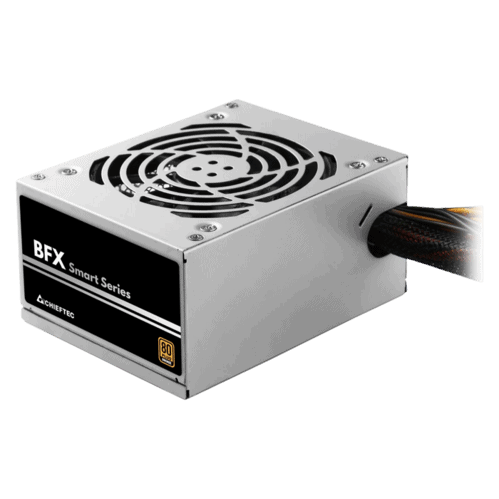

Блок питания Power Supply SFX 350W Chieftec BFX-350BS, 80+ Bronze, 90mm, Active PFC, DC/DC
Блок питания Power Supply SFX 350W Chieftec BFX-350BS, 80+ Bronze, 90mm, Active PFC, DC/DC
1 08900
206926
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
.
TECHNICAL DATA
Model Smart 350W
Article no. BFX-350BS
EAN code 0753263077486
Weight (without/with package) 1kg / 1.3kg
AC Input 100 - 240V / 5.0A
Frequency 47 - 63Hz
+5V 18.0A
+3,3V 18.0A
+5V & +3,3V combined 110W
+12V1 29.16A
+12V2 -
+12V1, +12V2 combined 349.92W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 2,5A / 12.5W
Maximum Power 350W
Connectors
20+4 PIN ATX 1
8 PIN EPS(4+4) 1
8 PIN PCIe (6+2) 1
SATA 3
MOLEX/FLOPPY 2/1
Cable length (mm)
20+4 PIN ATX 350
8 PIN EPS(4+4) 350
8 PIN PCIe (6+2) 350
SATA 3 x 250
MOLEX/FLOPPY 2 x 150 / 150
Features
ATX12V Version ATX 12V 2.3
Efficiency 80 PLUS® Bronze
Dimension (DxWxH) 100mm x 125mm x 64mm
PFC Active PFC (0,9)
Fan 90mm silent fan
Security AFC (Automatic Fan speed Control)
OCP (Overcurrent protection)
OPP (Overload protection)
OTP (Over-temperature protection)
OVP (Overvoltage protection)
SCP (Short-circuit protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage protection)
8-pin (4+4) ATX/ESP 12V
1
ATX Version
ATX 12V 2.3
Brand
Chieftec
DC to DC converter
false
Flat Cables
false
Floppy
1
Full Bridge
false
LCC
false
Max. Fan Speed {rpm}
MOLEX
2
Noise Level {dBA}
PF Correction
Active PFC
SATA power
3
Zero-RPM Mode
false
