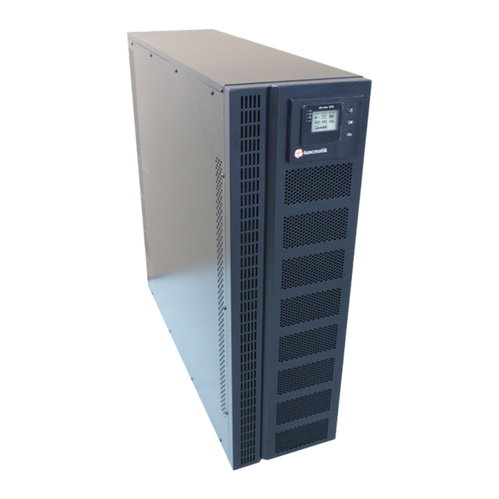

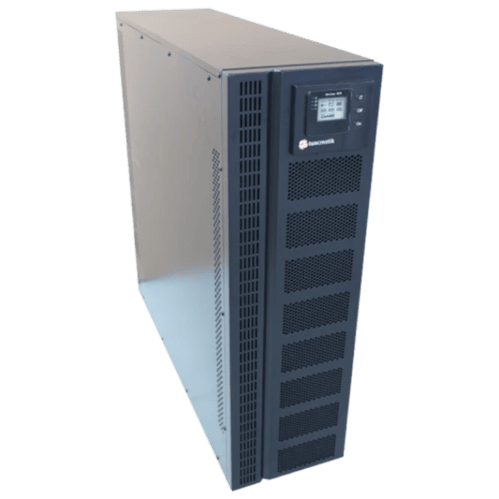

UPS Tuncmatik HI-TECH Ultra X9 10 kVA DSP LCD 3P/3P Online, without batteries
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
http://www.tuncmatik.com/ru/product/overview/hi-tech-ultra-10-kva.html Input Phase 3 phase 4 wire and ground Nominal voltage 380/400/415 VAC Voltaj range 208~478 VAC Frequency range 45-55Hz de 50Hz/54-66Hz at 60Hz (auto sensing) Current THDi ≤3% (100% nonlinear load) Bypass voltage range Max. voltage Power factor ≥0.99 Output Phase 3 phase 4 wire and ground Nominal voltage 380/400/415 VAC, Power factor 0.9 Voltage regulation ± 1% Frequency Normal mode ± 1%, ± 2%, ± 4%, ± 5%, ± 10% of the rated frequency (optional) Frequency Battery mode (50/60±0.2%) Hz Crest factor 3/1 THD ≤2% with linear load, ≤5% with non linear load Efficieny 93% Battery Voltage Standart unit.±120Vdc (20pcs 12V7Ah) (2x20pcs 12V9Ah optional) Long run unit Charge current (A) (charge current can be set according to battery capacity installed Standard unit.1.35A (2.7A optional) Long run unit. Max. current 10A Transfer time Utility to battery. 0ms; Utility to bypass. 0ms Protection Overload AC mode Loads ≤110%. last 60min, ≤125%. last 10min, ≤150%. last 1min,
Brand
Tuncmatik
Colour Category | Цветовая Категория
Grey | Серый
Form factor | UPS
Tower
Input Voltage Range
208~478 VAC
Output Power Capacity {VA}
100000
Output Voltage {V}
0
Type | Power Protection
Uninterruptible Power Supply
UPS Transformer Type
Online
