DD R5
Platform PC
FFB Drive System Direct Drive
Max Steering Angle Infinite Rotation
Housing Material Aviation Grade Aluminum Alloy
Color Black
Peak Torque 5.5Nm
USB Refresh Rate 1000Hz
Input Voltage 110V-220V AC ->12V DC
Encoder Resolution 15 bits
App Functions Supported
Quick Release Supported
Interface Power, Data, Display, Pedals, Wheel Input
Accessories User manual. Warranty card, Power supply, USB cable, Toolkit
Mounting Method 4 holes on the bottom
Desktop Mounting Clip Standard
Online Firmware Upgrade Supported
Emergency Stop Switch Optional
Firmware Upgrade Applicable

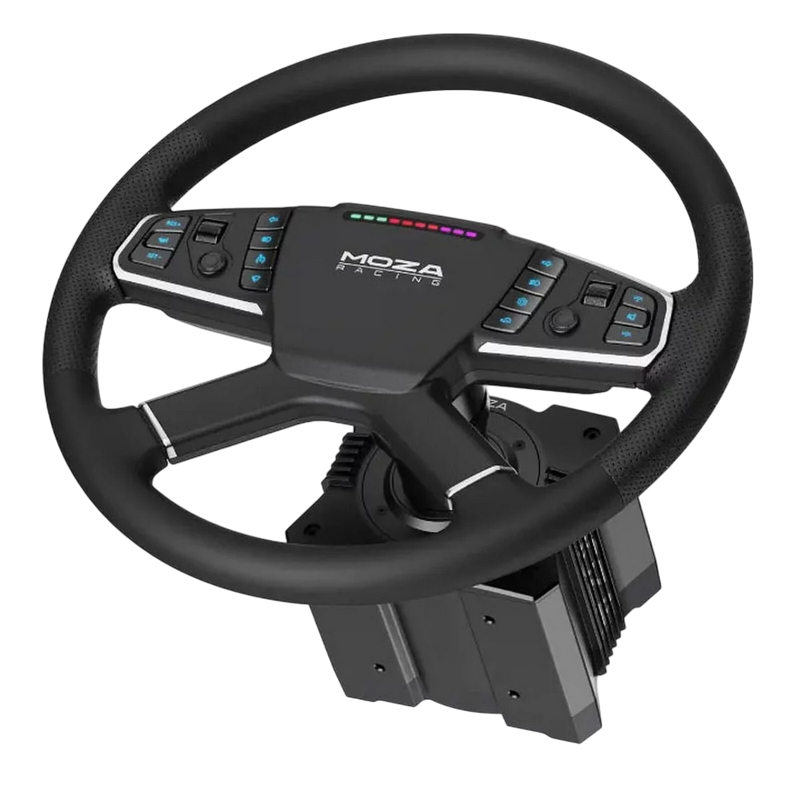

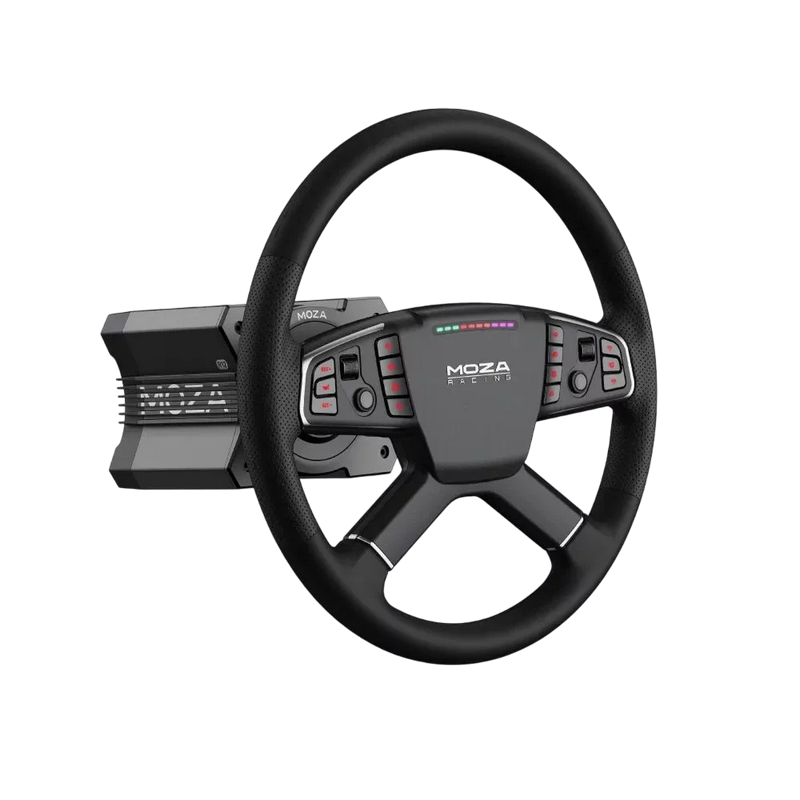

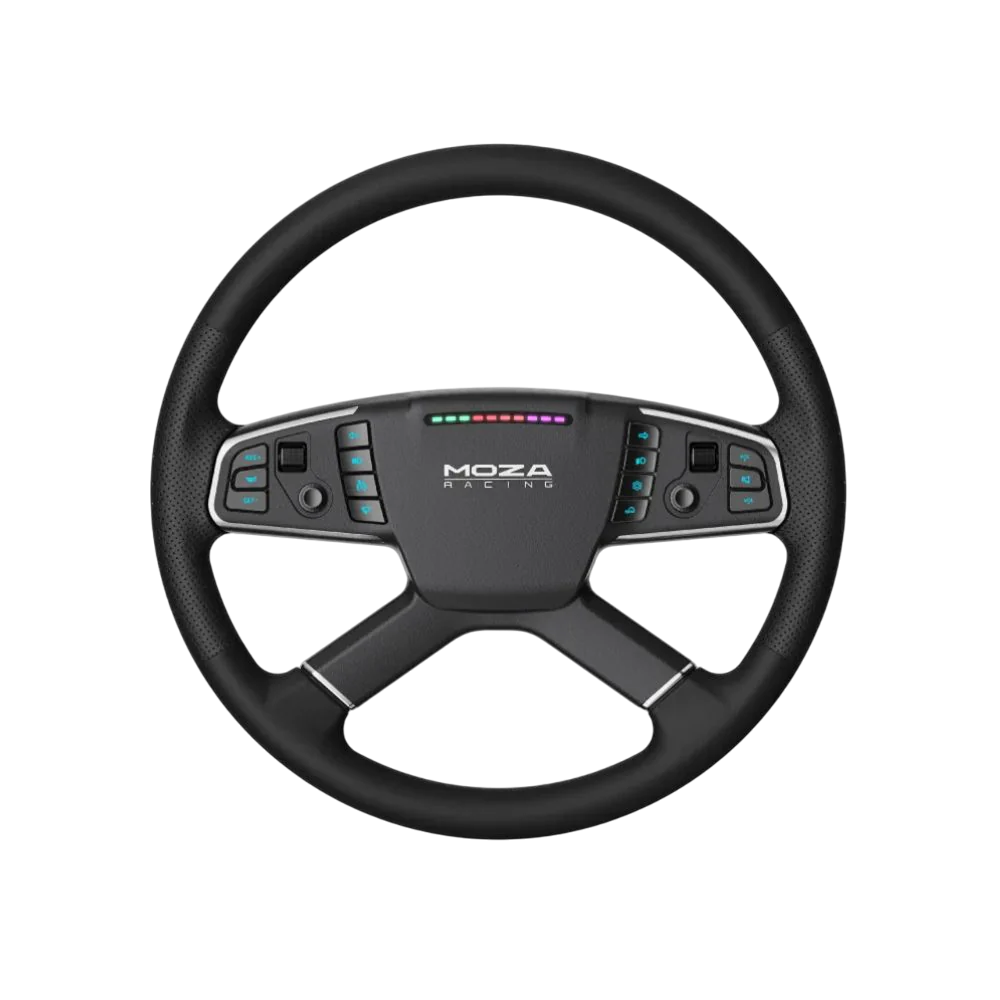

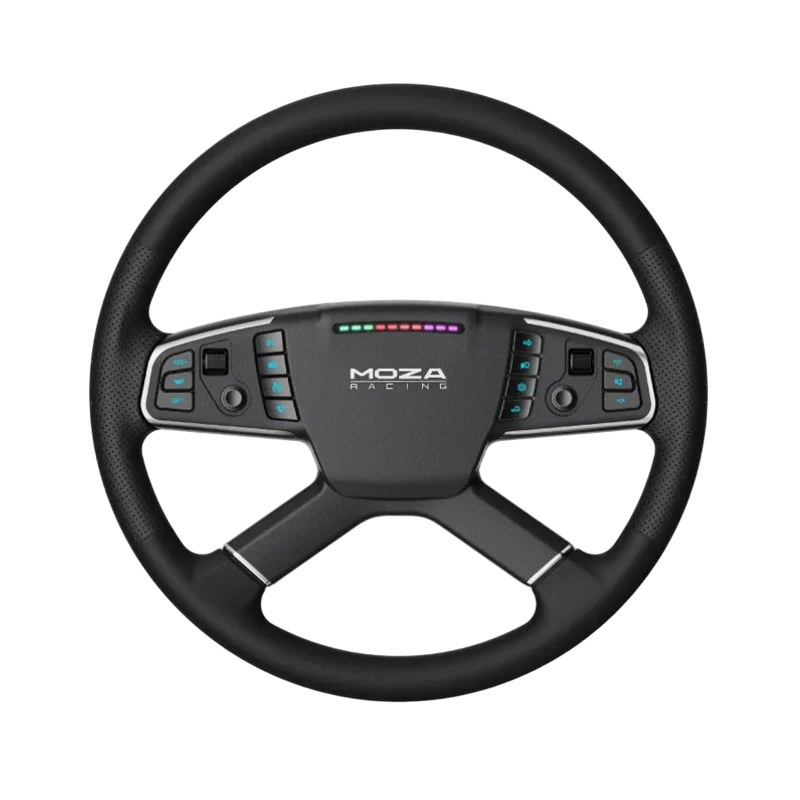

TSW Truck Wheel
Size 400mm
Wheel rim material Aerospace-grade aluminum
Spoke and hub casing Polymer composite
Short travel baddit buttons 14
Aluminum thumbwheels 2
Ultra-thin joysticks 2
RGB LED Light Beads 10
LED colors 16.7 million
Intellgent telemetry Supported
Release method All-aluminum quick release
Communication method Wireless and wired
Compatibility Compatible with all MOZA bases, works with 3rd party bases via the MOZA hub.

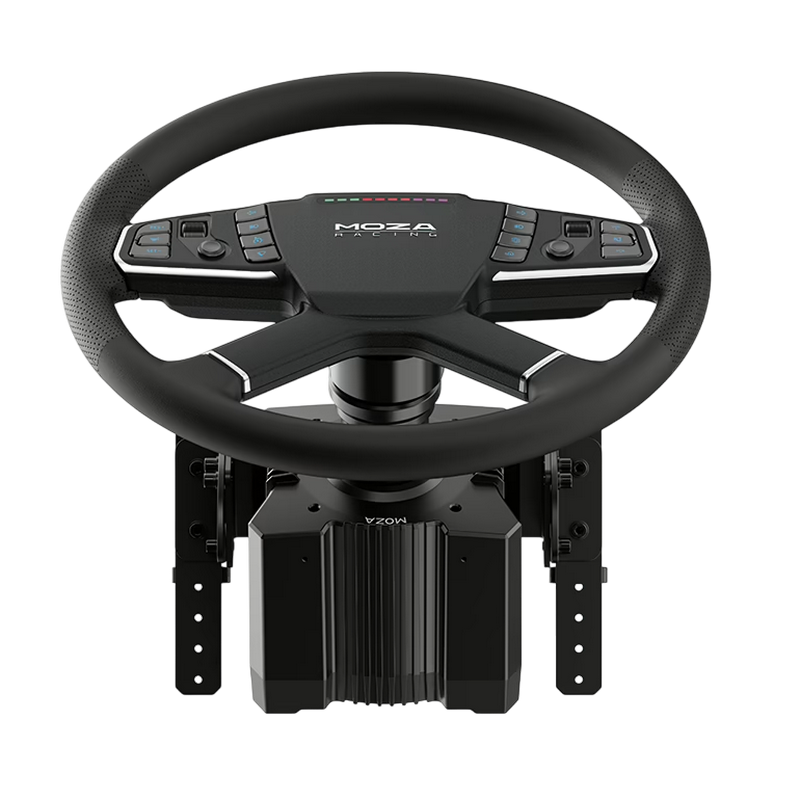

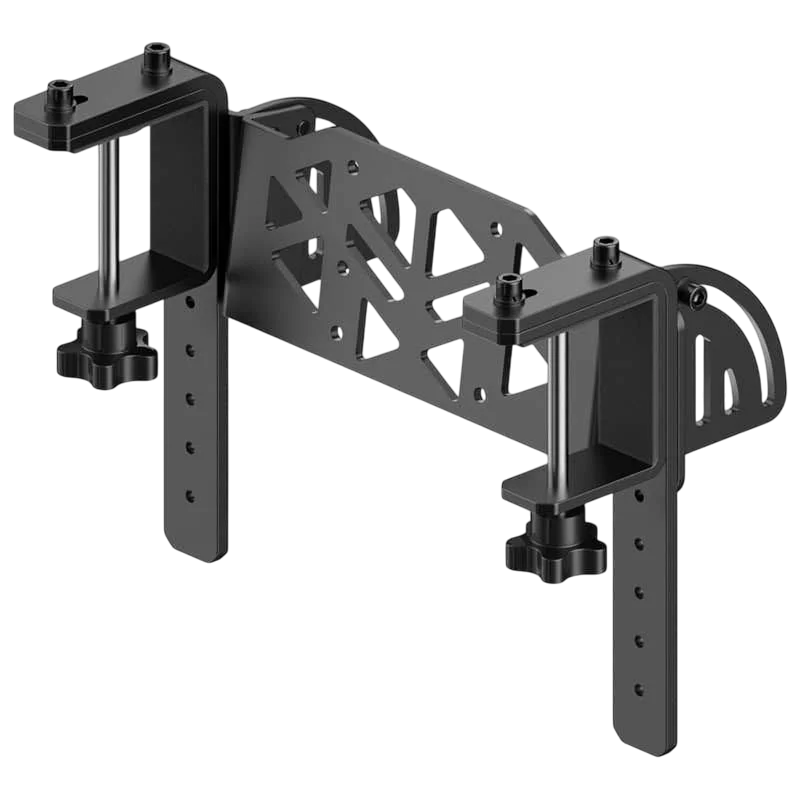

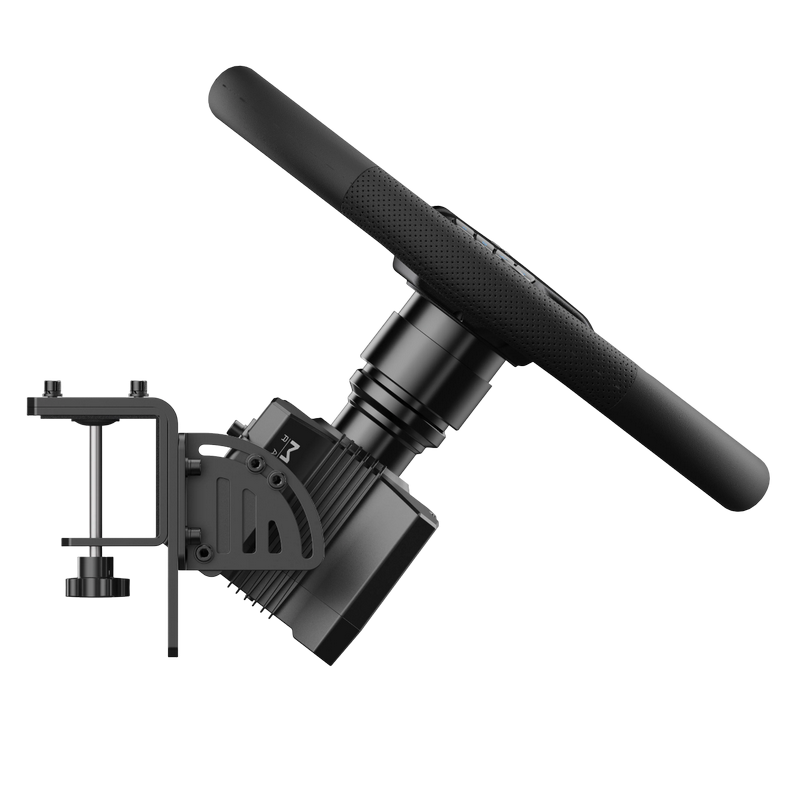

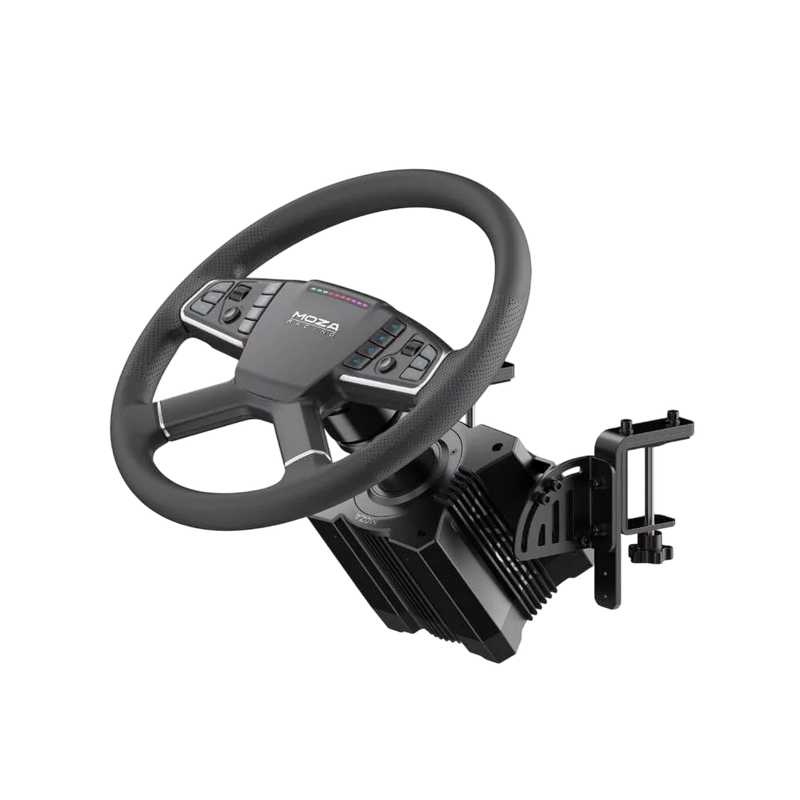

Truck Mount Included

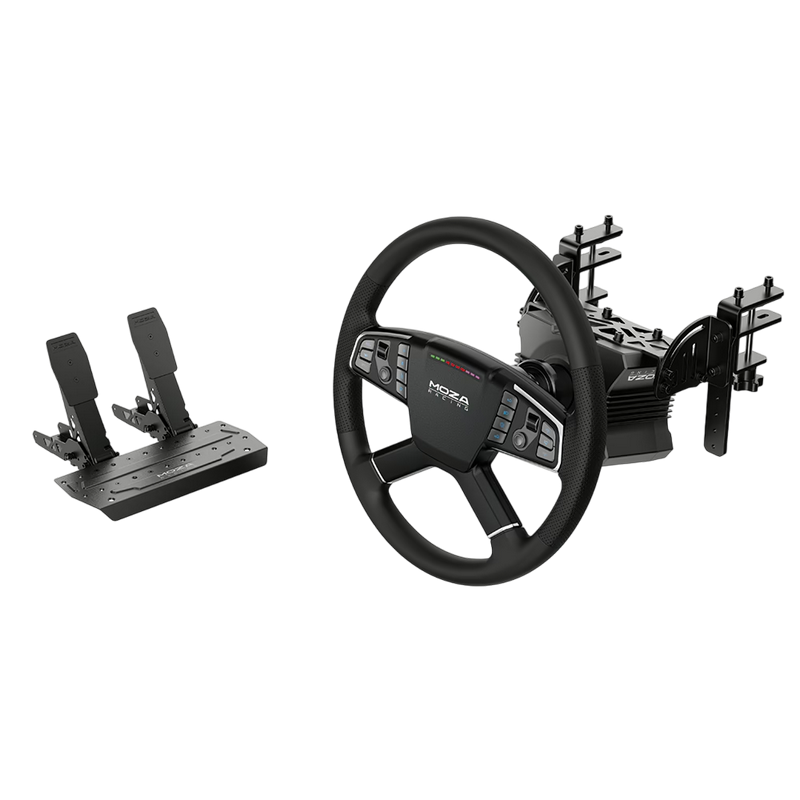

SR-P Lite Pedals
Material High-strength Steel
Plate Material High-strength Steel
Color Black
Pedal Sensor 1\pe Hall Sensor
Pedal Spadng Adjustable
Pedal Plate Height Adjustable
Pedal Input Adjustment Supported
Pedal Input Reversal Supported
Pedal Output Curve Adjustment Supported
Size 350*270*140 (mm)
